Home > Products > New Products > High Quality UTP Cat 5e LAN Cable 4PR 24AWG Patch Cord

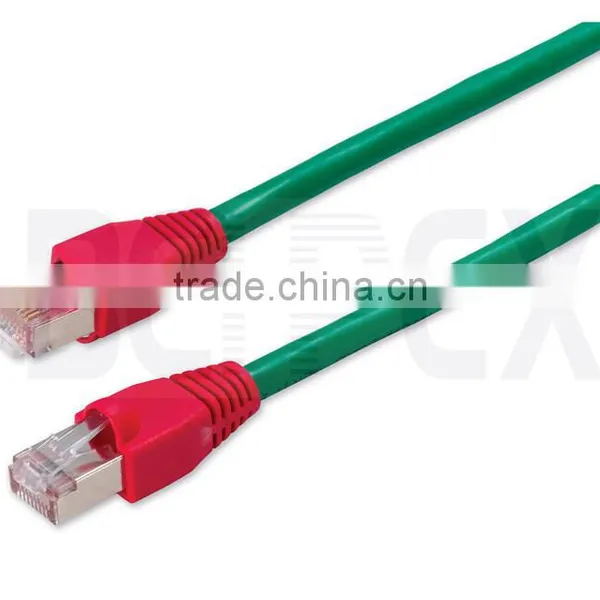

High Quality UTP Cat 5e LAN Cable 4PR 24AWG Patch Cord
- 1000000 Piece / Pieces per Month
- SHEN ZHEN
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | BEHPEX / OEM / ODM | Model Number: | FTP Cat5e |
| Type: | Cat 5e | Number of Conductors: | 8 |
Product Description
High Quality UTP Cat 5e LAN Cable 4PR 24AWG Patch Cord
Features
TIA/EIA-568B.2-1;ISO/IEO 11801;NEC/CEC
Fire protection – IEC60332-1 (CM)
Application: Horizontal communication cable; for indoor installation
Construction
Conductor: Bare Solid Copper Pair Identification: Pair1= Blue/White Pair2= Orange/White
Conductor Dia.:0.50mm+0.05mm (24AWG) Pair 3= Green/White Pair4= Brown/White
Pair Indulation: Polyethylene Drain Wire Diameter:0.50mm
Outer Cable Diameter:6.0 ± 0.2mm
Outer Jacket: PVC/LSZH/CM/CMR/CMP Jacket
TECHNICAL MECHANICAL
Installation Temperature: 0°C to +60°C Pulling strength: 130 N
Operating temperature: -20°C to +75°C Minimum bend radius: 4 outer cable diameters
DC Resistance Unbalance :5% Dielectric Breakdown:1000 Volts DC Conductor to Conductor
Pair-to-Ground Capacitance Unbalance :330 pF/100 m Velocity of Propagation:PE=65%
Capacitance:14pF/ft nominal Maximum Skew:45ns@100 meters
PACKAGING
305m/1000ft Easy pulling box; 500m/wooden reel;1000m/wooden reel
ELECTRICAL CHARACTERISTICS
| Frequency, MHz | RL | Attenuation, dB | NEXT, dB | PSNEXT, dB | ELFEXT, dB | PSELFEXT, dB |
| 0.772 | - | 2.2 | 67 | 64 | - | - |
| 1 | 20 | 2.4 | 65,3 | 62.3 | 63.8 | 60.8 |
| 4 | 23 | 4.8 | 56.3 | 53.3 | 51.7 | 48.7 |
| 8 | 24.5 | 6.9 | 51.8 | 48.8 | 45.7 | 42.7 |
| 10 | 25 | 7.7 | 50.3 | 47.3 | 43.8 | 40.8 |
| 16 | 25 | 9.9 | 47.3 | 44.3 | 39.7 | 36.7 |
| 20 | 25 | 11.1 | 45.8 | 42.8 | 37.7 | 34.7 |
| 25 | 24.3 | 12.5 | 44.3 | 41.3 | 35.8 | 32.8 |
| 31.25 | 23.6 | 14.1 | 42.9 | 39.9 | 33.9 | 30.9 |
| 62.5 | 21.5 | 20.4 | 38.4 | 35.4 | 27.8 | 24.8 |
| 100 | 20.1 | 26.4 | 35.3 | 32.3 | 23.8 | 20.8 |
Boot Type
Product Details
Test Limit
Component Level Tested ( DTX 1800 Fluke ISO Patch Cord Test )
Fluke DTX1800 Channel Test
Production Procedure
Color
Packing Rate
Package
Factory Info
Contact Us
- Shenzhen Newconn Technology Co., Ltd.
- Contact nameBill Chen
- Phone86-755-88374056
- AddressNo.10, Cuilong Road, Baolong Industrial Area,Longgang District, Shenzhen,Guangdong
