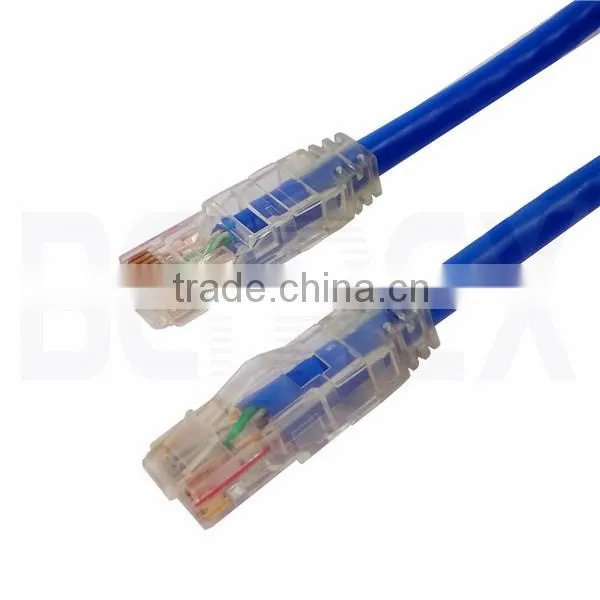

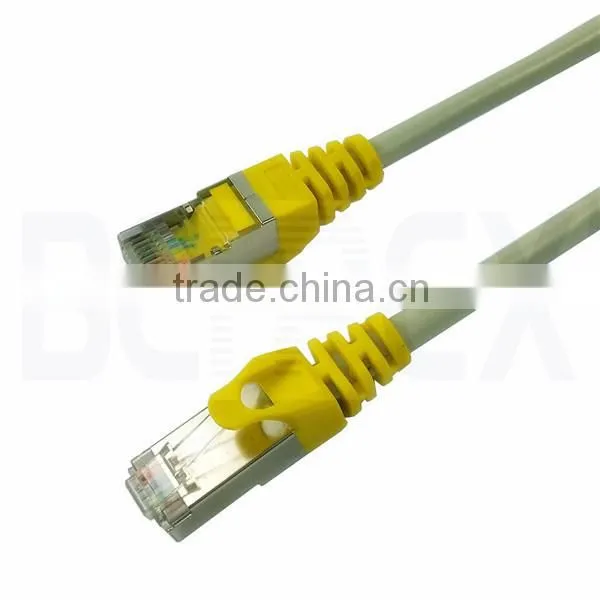

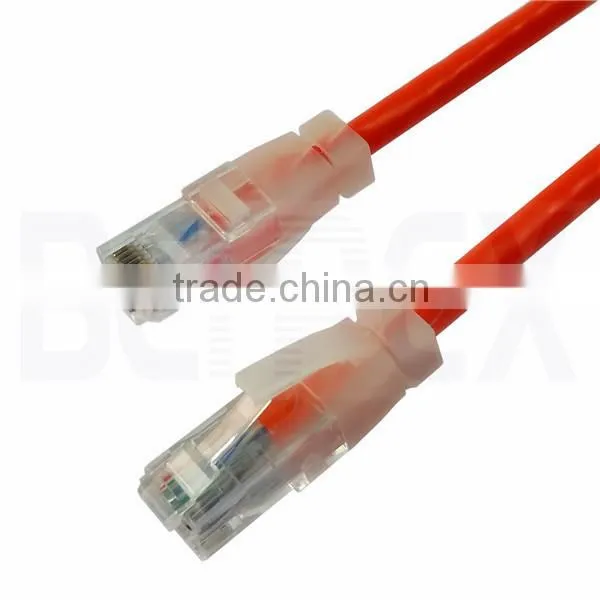

RJ45 UTP Cat6 Ethernet Cable Coiled Cat 6 Network Cable
Features
TIA/EIA-568B.2-1;ISO/IEO 11801;NEC/CEC
Fire protection – IEC60332-1 (CM)
Application: Horizontal communication cable; for indoor installation
Wiring Scheme
ANSI/TIA/EIA-568-C.2: T568A & T568B
ISO/IEC 11801: 8-position conductor/pair assignment (1-2/3-6/4-5/7-8)
Cordage
Construction: 4 pairs, 7 strandsed oxyge-free copper,24 AWG, UTP CAT.6
Pair Identification: Pair1= Blue/White Pair2= Orange/White
Pair 3= Green/White Pair4= Brown/White
Outer Cable Diameter: 6.0mm ± 0.2 mm
Outer Jacket: PVC/LSZH Jacket
Plug
Type:Unshielded RJ45 8P8C Modular Plug
Housing: UL listed 94V-0/1/2 flame retardant polycarbonate
IDC blades: phosphor bronze, gold plating over 100 μin of nickel in contact area
MECHANICAL
Retention: 50 N (11 lbf) for 60±5 s Installation Temperature: 0°C to +60°C
Mating cycle life: min 750 cycles Operating temperature: -20°C to +60°C
Tensile strength: ≥ 20 N per wire Minimum bend radius: 4 outer cable diameters
Boot Type
Product Details
Test Limit
Component Level Tested ( DTX 1800 Fluke ISO Patch Cord Test )
Fluke DTX1800 Channel Test
Production Procedure
Color
Packing Rate
Package
