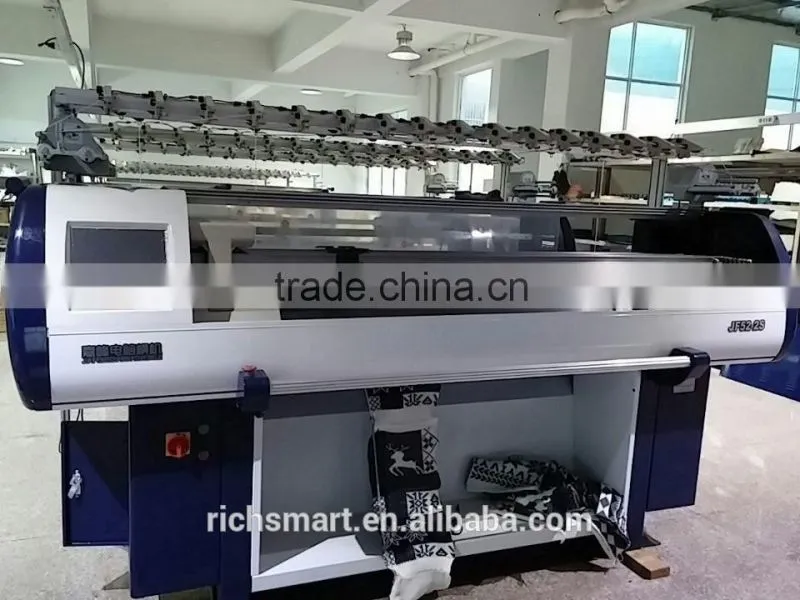

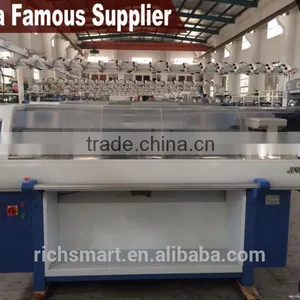

Help CenterBetter Choice Than Stoll,52" Computerized Flat Kitting Machine With ISO9001 Standard
Related Products
-
2014 Newest Type Double System Computerized Flat Knitting Machine With ISO9001 Standard For Sweater(72 Inches)US$ 10,000 - 19,000MOQ: 1 Set -
Double System Fully Computerized Flat Kitting Machine For SweaterUS$ 7,000 - 15,000MOQ: 1 Set
-
Hot Sale Double System Computerized Flat Knitting Machine(72 Inches)US$ 10,000 - 19,000MOQ: 1 Set
-
Popular Advanced Type,45/52inches Computerized Flat Sweater Knitting MachineUS$ 4,000 - 8,999MOQ: 1 Set
-
Good Quality With Lower Price,Popular 52 Inches Double System Computerized Flat Knitting MachineUS$ 9,000 - 15,000MOQ: 1 Set
Double system single carriage
MAIN PARAMETERS
Gauge |
3.5G,5G,7G,10G,12G,13G,14G,multi-gauge3-5-7G |
Knitting width |
52" 72" |
Knitting speed |
Controlled by AC servo motor with 64 sections speed optional, max 1.2m/s. The servo motor combines precise feedback control system with high-speed digital signal processor (DSP) to control IGBT to achieve accurate electric current output. |
Knitting system |
Double system Single carriage |
Knitting function |
Knit, miss, tuck, transfer, pointelle, intarsia, jacquard, hide, or apparent shaping and other regular patterns. |
Racking system |
Controlled by AC servo motor racking within 2 inches and with fine micro adjustable function. |
Needle detection alarm device |
Capable of all-dimensional needle detection alarming,a breakthrough compared to current simplistic side-to-side needle detection alarming systems. |
Encoder |
Advanced encoder adopted. |
Transfer cam |
Combined type transfer cam, both single and double system all can transfer separately or synchronously, also can transfer by one system, knitting by another, which will achieve high efficiency. |
Stitch density |
Controlled by stepping motor, 24 sections density selectable, adjustable scope supported by subdivision technology: 0-650, the length of knitwear piece can be accurately controlled. |
Sinker system |
Controlled by stepping motor, adjustable to different knitwear ,achieve various results of narrowing and widening |
Take down roller |
Computerized, controlled by stepping motor,24 levels selection of tension with adjustable scope:0-100 |
Yarn feeder |

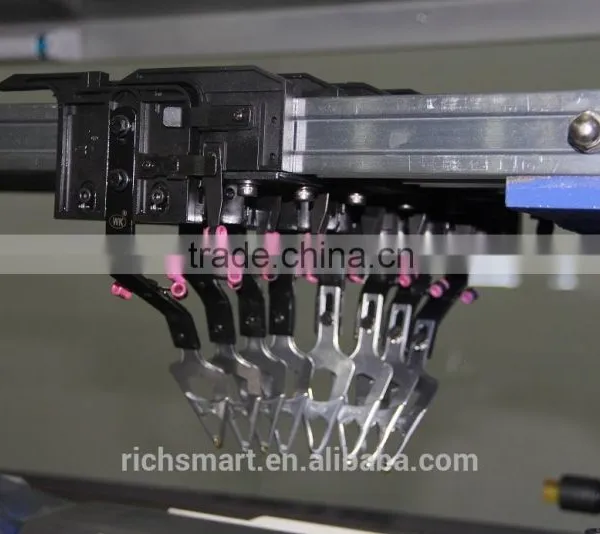

2x8 yarn feeders on both sides of 1 guide rail of 4, switchover on any position of needle bed (special intarsia yarn feeders optional). |
Protection system |
The machine will automatically alarm if yarn-breaking, knots floating, rewind, end of knitting, fail of racking, needle jack crash, error programming occur, also with safety auto-lock protection device. |
Control system |
|
Network |
High speed Ethernet, the knitting data can be uploaded, downloaded and shared. |
Power |
Single-phase 220V and triples-phase 380V, adopt advanced CMOS technology enabling memorizing at the instant of power outages and restoring of knitting thereafter. |

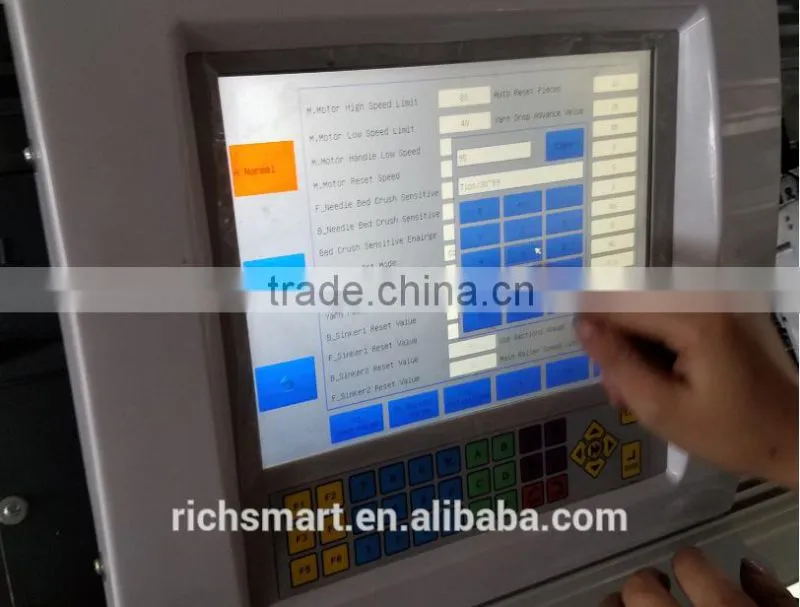

Touch Screen With Keyboard,Very Easy To Operate

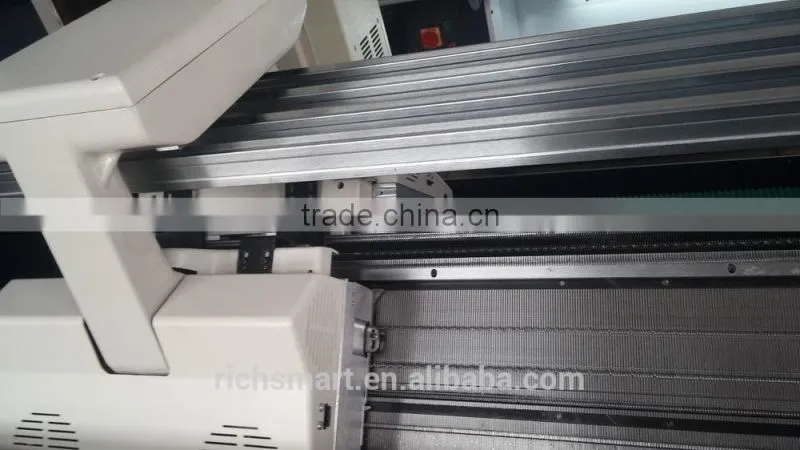

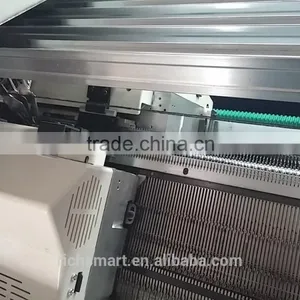

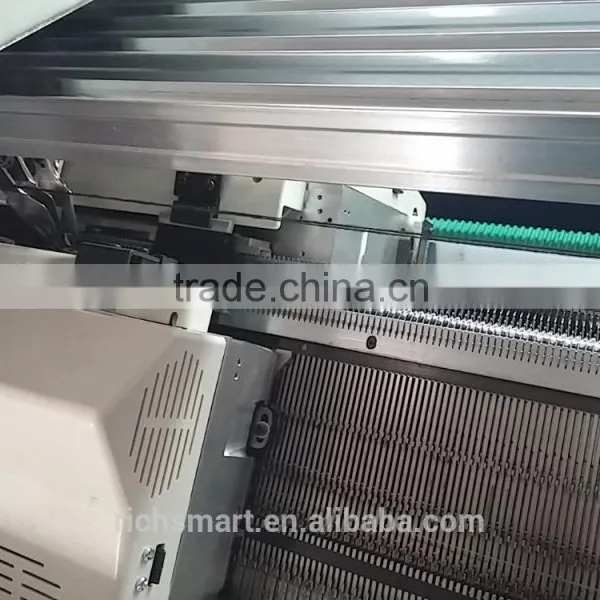

Precision Carriage With High Quality

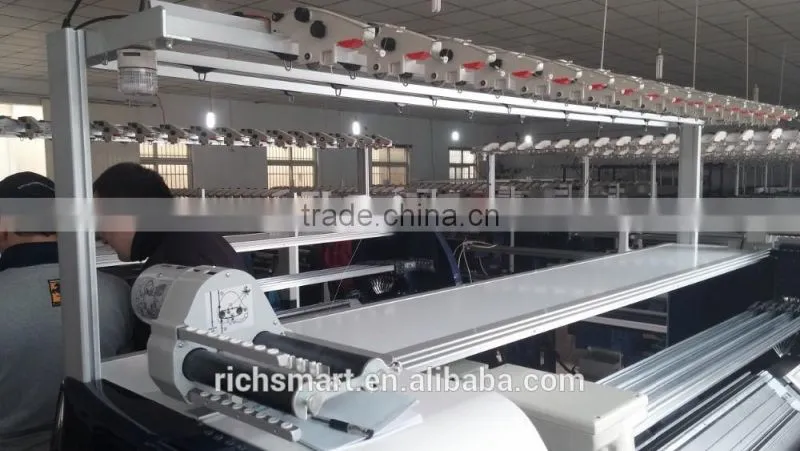

Sensitive Top Yarn Tensioner,Abnormal Timely Warning

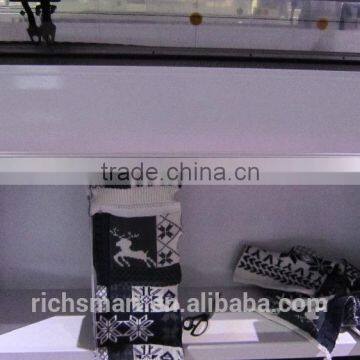

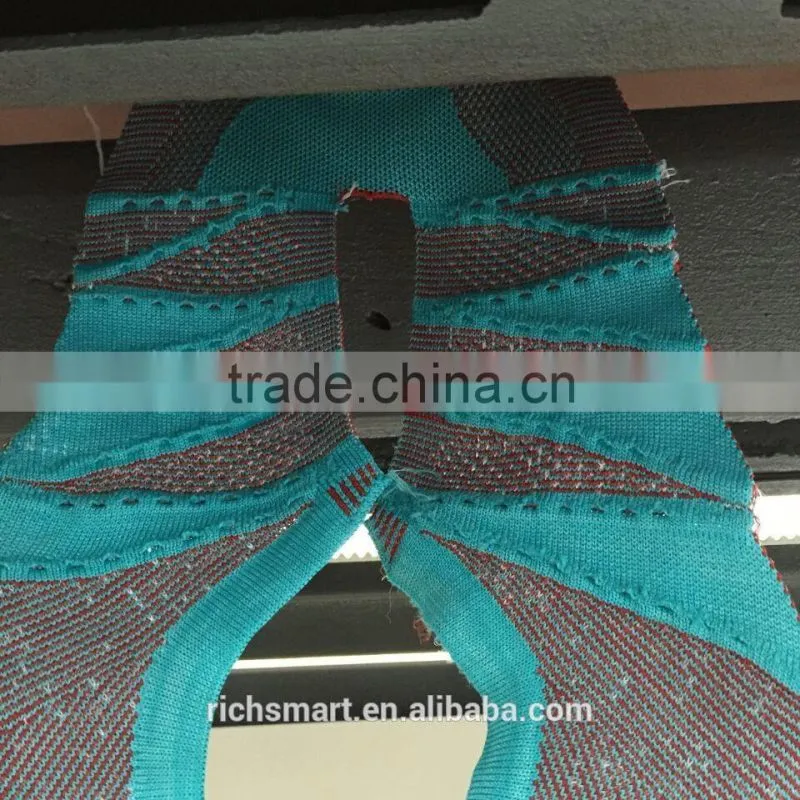

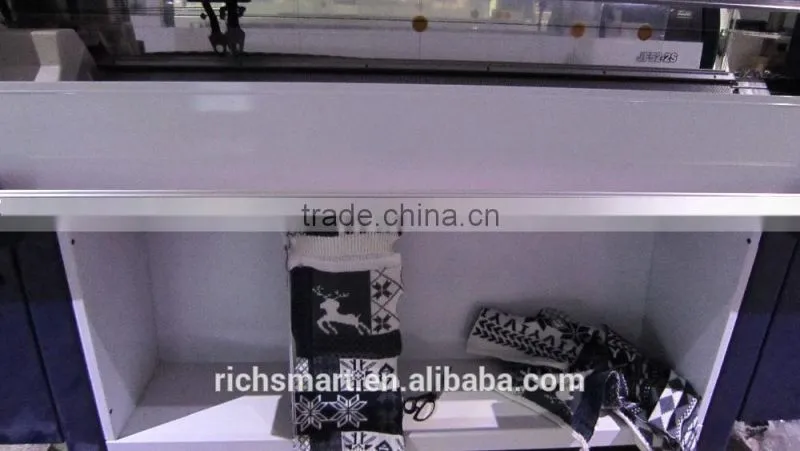

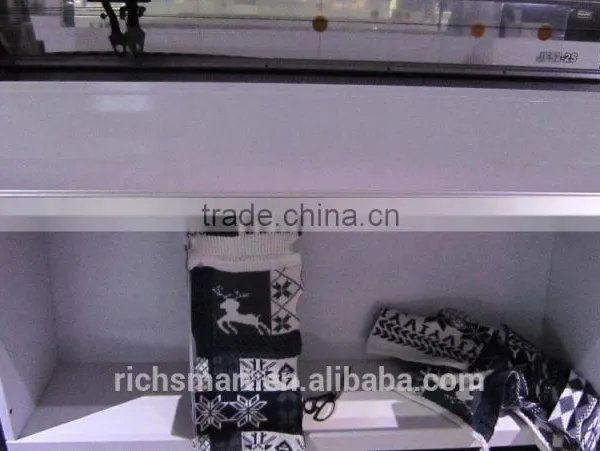

Any Popular Patterns Can Be Made On Our Machines

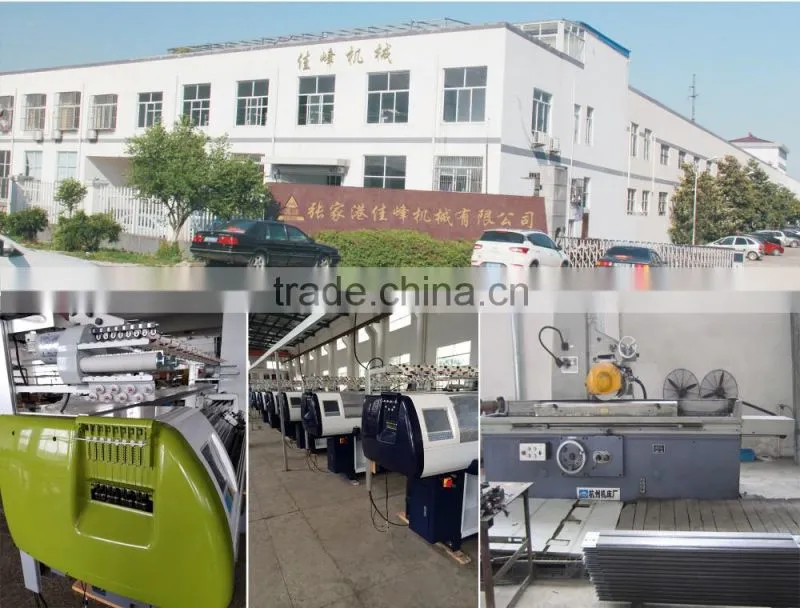

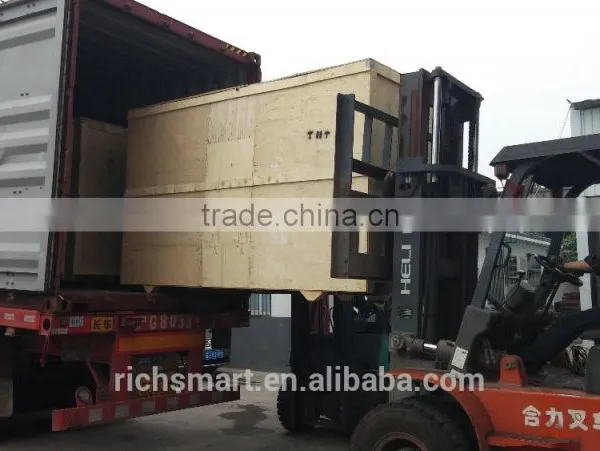

Clean And Tidy Workshops & Equipments,Very Strict Testing Before Delivery

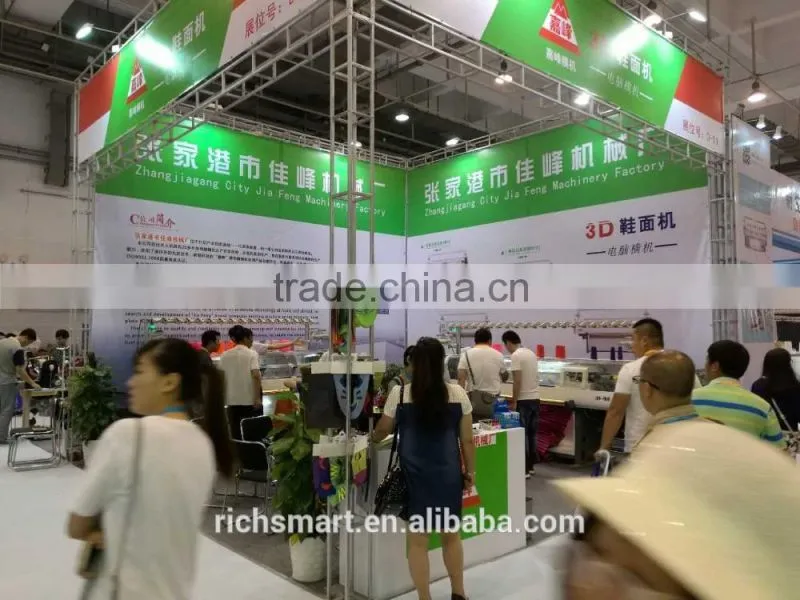

Our machines at Exhibition of CSITE 2106(Qingdao)
