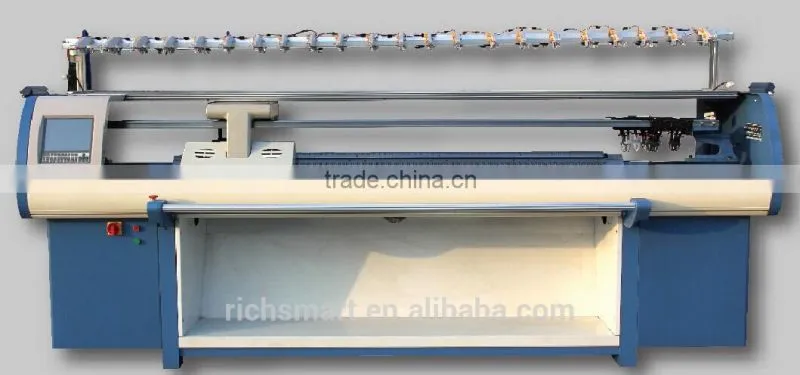

Help Center2014 Newest Type Double System Computerized Flat Knitting Machine With ISO9001 Standard For Sweater(72 Inches)
Related Products
-
Double System Fully Computerized Flat Kitting Machine For SweaterUS$ 7,000 - 15,000MOQ: 1 Set -
Hot Sale Double System Computerized Flat Knitting Machine(72 Inches)US$ 10,000 - 19,000MOQ: 1 Set
-
Popular Advanced Type,45/52inches Computerized Flat Sweater Knitting MachineUS$ 4,000 - 8,999MOQ: 1 Set
-
Good Quality With Lower Price,Popular 52 Inches Double System Computerized Flat Knitting MachineUS$ 9,000 - 15,000MOQ: 1 Set
-
Good Quality and Economical 52"/80" Computerized Flat Sweater Knitting MachineUS$ 5,000 - 9,000MOQ: 1 Set
Specifications
Double system single carriageKnitting width:52" 60" 72"
Gauge:All possible gauge
Packing:Waterproof/vacuum,wooden case
Double system with single carriage
Main Parameters
Gauge | 3.5G,5G,7G,10G,12G,13G,14G,multi-gauge3-5-7G |
Knitting width | 52" 60" 72" |
Knitting speed | Controlled by AC servo motor with 64 sections speed optional, max 1.2m/s.with high-speed digital signal processor (DSP) to control IGBT to achieve accurate electric current output. |
Knitting system | Double system with single carriage |
Knitting function | Knit, miss, tuck, transfer, pointelle, intarsia, jacquard, hide, or apparent shaping and other regular patterns. |
Racking system | Controlled by AC servo motor racking within 2 inches, support fine adjustment. |
Needle detection | Capable of all-dimensional needle detection alarming |
Encoder | Advanced encoder adopted. |
Transfer cam | Combined type transfer cam, both single and double system all can transfer separately or synchronously, high efficiency. |
Stitch density | Controlled by stepping motor, 24 sections density selectable, |
Sinker system | Controlled by stepping motor, adjustable to different knitwear |
Take down roller (optional) | Computerized, controlled by stepping motor,24 levels selection of tension with adjustable scope:0-100 |
Yarn feeder | 2x8 yarn feeders, (special intarsia yarn feeders are optional). |
Protection system | The machine will automatically alarm if yarn-breaking, knots floating, rewind, end of knitting, fail of racking, needle jack crash, error programming occur, also with safety auto-lock protection device. |
Control system | 1. LCD touch screen, graphical interface. USB and network compatible, with expanded memory of up to 2G. 2. Monitoring display: Various operating parameters can be displayed and can be adjusted anytime. 3. Design system and control system (software) are easy to update for free. |
Power supply | Single-phase 220V and triples-phase 380V, adopt advanced CMOS technology enabling memorizing at the instant of power outages and restoring of knitting thereafter. |
Carriage

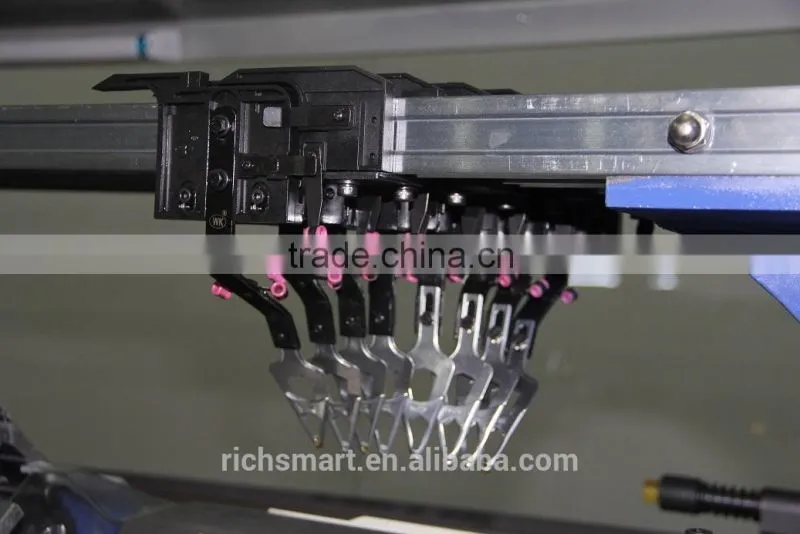

Yarn feeder
Needle bed
Finished machines
