Help CenterGood Quality With Lower Price,Popular 52 Inches Double System Computerized Flat Knitting Machine
Related Products
-
Good Quality and Economical 52"/80" Computerized Flat Sweater Knitting MachineUS$ 5,000 - 9,000MOQ: 1 Set -
Hot-sale 52" 60" 80" Double System Fully Computerized Flat Knitting Machine For Making SweaterUS$ 7,000 - 15,000MOQ: 1 Set
-
52" 60" 80"Double System Fully Computerized Flat Knitting Machine With First Class Quality For SweaterUS$ 6,000 - 12,000MOQ: 1 Set
-
Very Stable Quality 45"/52" Automatic Sweater Collar Flat Knitting MachineUS$ 3,700 - 4,500MOQ: 1 Set
-
36"/44"/52" Automatic Flat Collar Knitting MachineUS$ 2,500 - 4,500MOQ: 1 Set
Double system with single carriage
Main Parameters
Gauge | 3.5G,5G,7G,10G,12G,13G,14G,multi-gauge3-5-7G |
Knitting width | 52" 60" 80" |
Knitting speed | Controlled by AC servo motor with 64 sections speed optional, max 1.2m/s.with high-speed digital signal processor (DSP) to control IGBT to achieve accurate electric current output. |
Knitting system | Double system with single carriage |
Knitting function | Knit, miss, tuck, transfer, pointelle, intarsia, jacquard, hide, or apparent shaping and other regular patterns. |
Racking system | Controlled by AC servo motor racking within 2 inches, support fine adjustment. |
Needle detection | Capable of all-dimensional needle detection alarming |
Encoder | Advanced encoder adopted. |
Transfer cam | Combined type transfer cam, both single and double system all can transfer separately or synchronously, high efficiency. |
Stitch density | Controlled by stepping motor, 24 sections density selectable, |
Sinker system | Controlled by stepping motor, adjustable to different knitwear |
Take down roller (optional) | Computerized, controlled by stepping motor,24 levels selection of tension with adjustable scope:0-100 |
Yarn feeder | 2x8 yarn feeders, (special intarsia yarn feeders are optional). |
Protection system | The machine will automatically alarm if yarn-breaking, knots floating, rewind, end of knitting, fail of racking, needle jack crash, error programming occur, also with safety auto-lock protection device. |
Control system | 1. LCD touch screen, graphical interface. USB and network compatible, with expanded memory of up to 2G. 2. Monitoring display: Various operating parameters can be displayed and can be adjusted anytime. 3. Design system and control system (software) are easy to update for free. |
Power supply | Single-phase 220V and triples-phase 380V, adopt advanced CMOS technology enabling memorizing at the instant of power outages and restoring of knitting thereafter. |
Front,Stylish Design
Touch Screen With Keyboard,Very Easy To Operate
Precision Carriage With High Quality
Needle Beds With Precision Machining
Hengqiang Computer Control System,The Most Popular In China

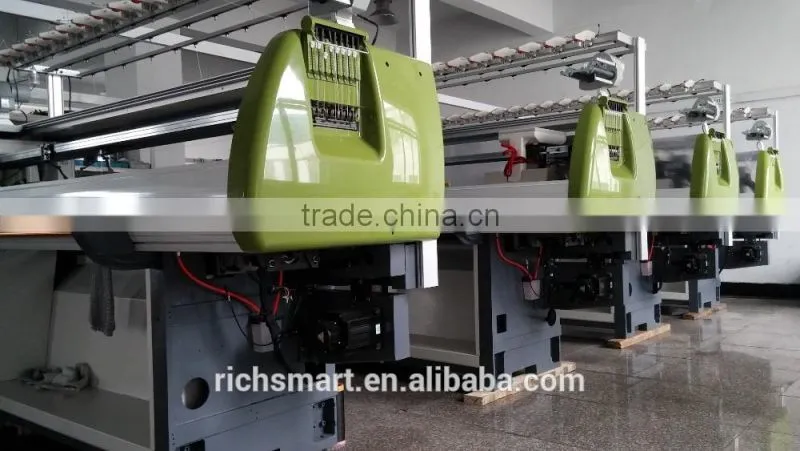

Finished machines

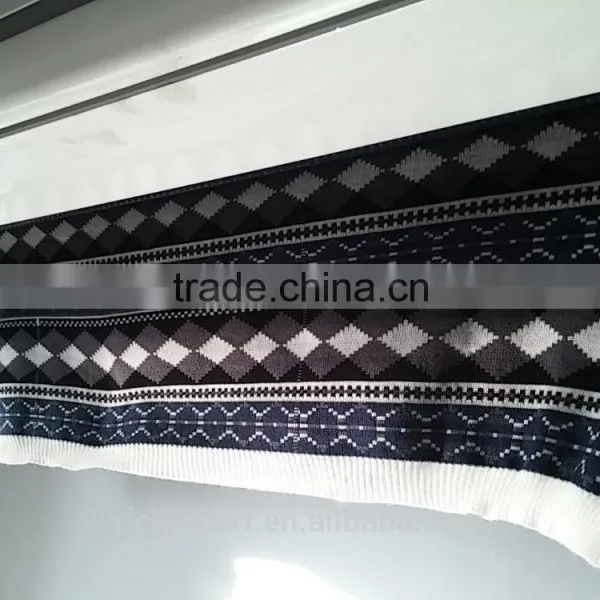

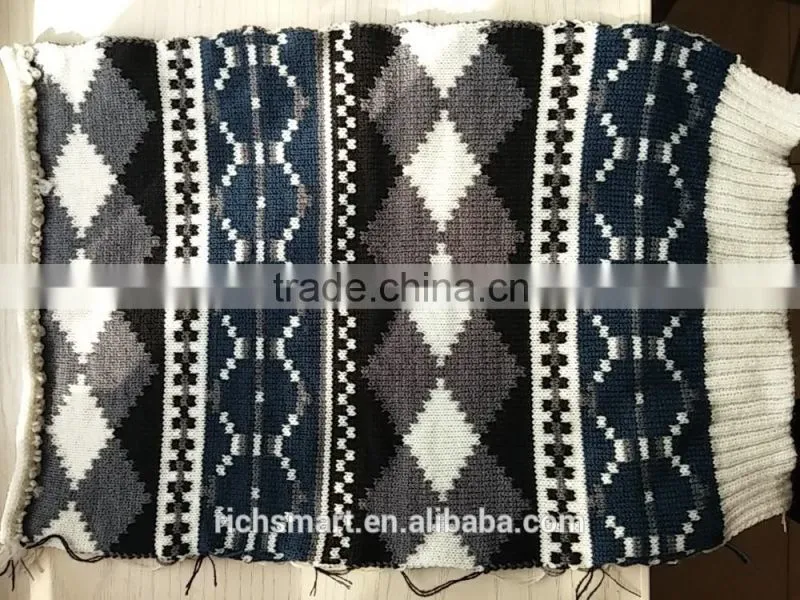

Any Popular Patterns Can Be Made On Our Machines

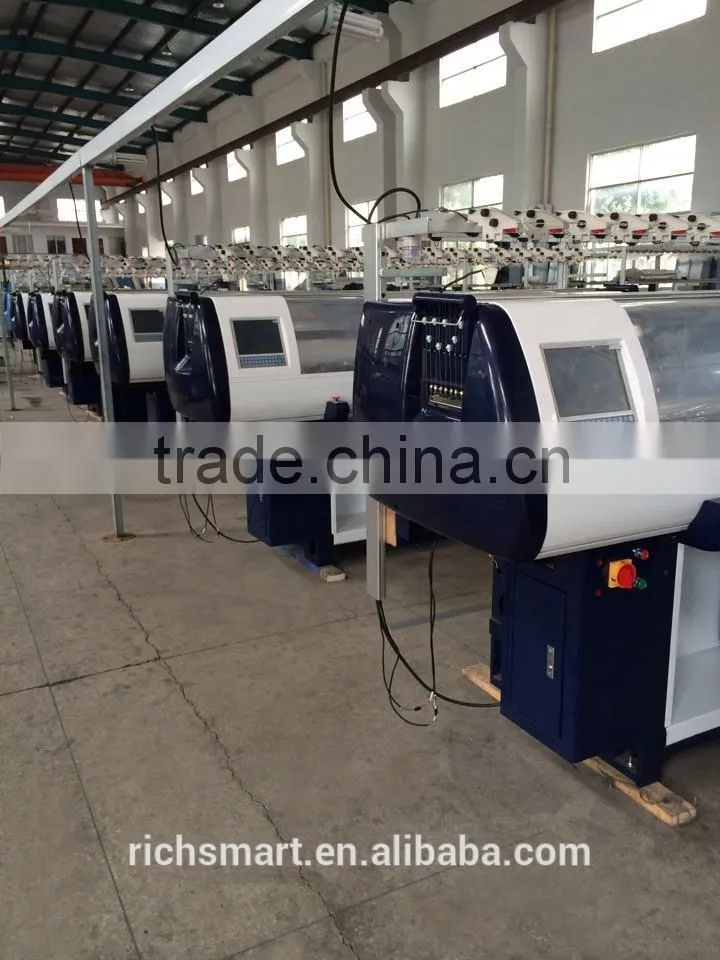

Clean And Tidy Assembly Workshops,Very Strict Testing Before Delivery

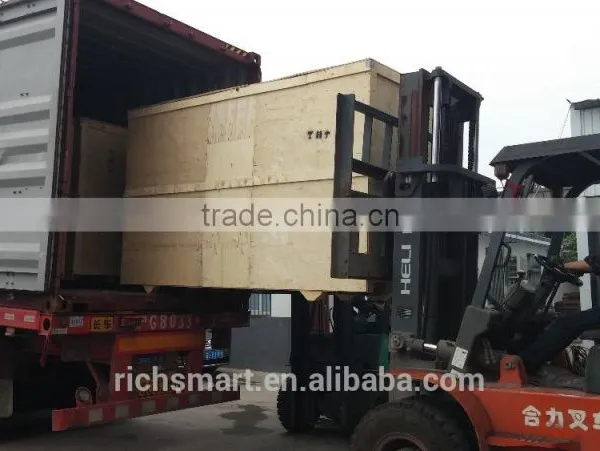

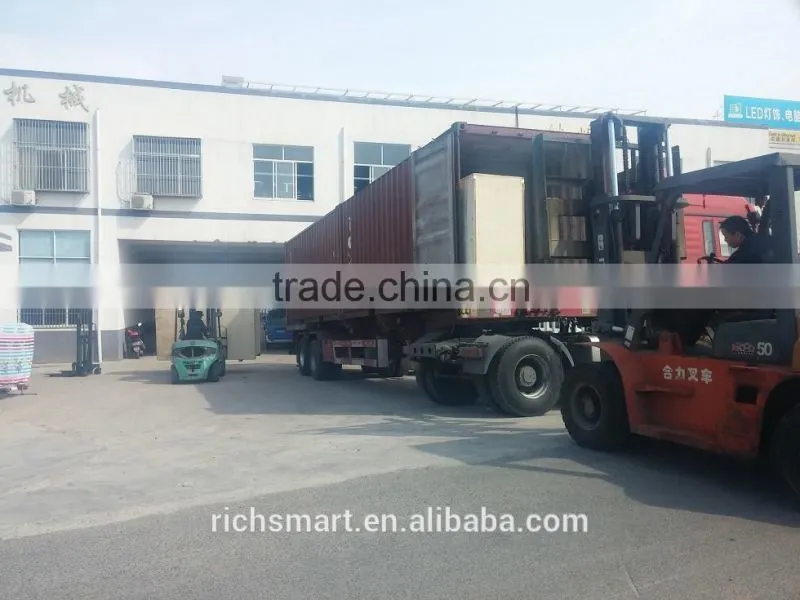

Waterproof Package or Vacuum Package in Standard Export Plyood Case.
