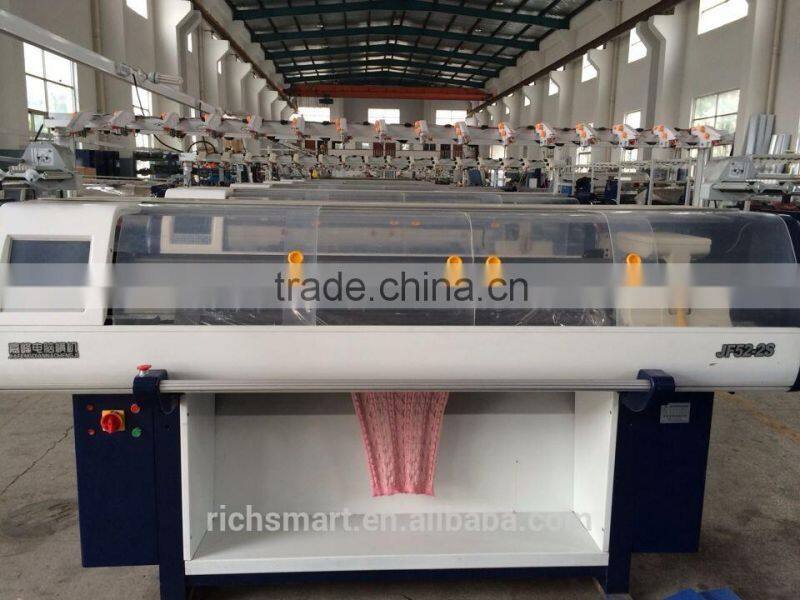

2014 Newest Type 60" Full Jacquard Flat Knitting Machine With ISO9001 Standard For Sweater

Gauge

3.5G,5G,7G,10G,12G,13G,14G,multi-gauge3-5-7G

Knitting width

52"  60"  72"

Knitting speed

Controlled by AC servo motor with 64 sections speed optional, max 1.2m/s.with high-speed digital signal processor (DSP) to control IGBT to achieve accurate electric current output.

Knitting system

double system with single carriage

Knitting function

Knit, miss, tuck, transfer, pointelle, intarsia, jacquard, hide, or apparent shaping and other regular patterns.

Racking system

Controlled by AC servo motor racking within 2 inches, support fine adjustment.

Needle detection

Capable of all-dimensional needle detection alarming

Encoder

Advanced encoder adopted.

Transfer cam

Combined type transfer cam, both single and double system all can transfer separately or synchronously, high efficiency.

Stitch density

Controlled by stepping motor, 24 sections density selectable,

Sinker system

Controlled by stepping motor, adjustable to different knitwear

Take down roller

(optional)

Computerized, controlled by stepping motor,24 levels selection of tension with adjustable scope:0-100

 Yarn feeder

2x8 yarn feeders, (special intarsia yarn feeders are optional).

Protection system

The machine will automatically alarm if yarn-breaking, knots floating, rewind, end of knitting, fail of racking, needle jack crash, error programming occur, also with safety auto-lock protection device.

Control system

1.  LCD touch screen, graphical interface. USB and network compatible, with expanded memory of up to 2G.

2.  Monitoring display: Various operating parameters can be displayed and can be adjusted anytime.

3.  Design system and control system (software) are easy to update for free.

Power supply

Single-phase 220V and triples-phase 380V, adopt advanced CMOS technology enabling memorizing at the instant of power outages and restoring of knitting thereafter.
