Help Center100% Fluke Test Slim UTP CAT6A PATCH CABLE RJ45 Cable
Related Products
-
Factory Price 10G Plus 600MHZ LSZH RJ45 SFTP CAT7 PATCH CABLEUS$ 0.50 - 0.50MOQ: 100 Pieces -
24AWG 100% Copper RJ45 UTP CAT6 PATCH CORDUS$ 0.40 - 0.40MOQ: 100 Pieces
-
New Product ! OD:3.5mm Supper Slim UTP CAT6A PATCH CORDUS$ 0.30 - 0.30MOQ: 100 Pieces
-
Hot Product !! CAT6 UTP Ethernet Patch CordUS$ 0.30 - 0.30MOQ: 100 Pieces
-
LSZH RJ45 S/FTP CAT6A PATCH CABLEUS$ 0.50 - 0.50MOQ: 100 Pieces
Component Level Tested !! Supper Slim OD:3.5mm Slim UTP CAT6A Patch Cable for Data Center
Application: Designed for High Density Environments( Data Center) where space is a premium.
Features
TIA/EIA-568B.2-1;ISO/IEO 11801;NEC/CEC
Fire protection – IEC60332-1 (CM)
Unique Sell Points:
1, OD at:3.5mm. It is 58% size of normal patch cord.
2, Better airflow & cooling performance in server & switch racks
3, Space-saving & Cost-effective
Wiring Scheme
ANSI/TIA/EIA-568-C.2: T568A & T568B
ISO/IEC 11801: 8-position conductor/pair assignment (1-2/3-6/4-5/7-8)
Cordage
Construction: 4 pairs, 7 strandsed oxyge-free copper,28 AWG, UTP CAT.6A
Pair Identification: Pair1= Blue/White Pair2= Orange/White
Pair 3= Green/White Pair4= Brown/White
Outer Cable Diameter: 3.5mm ± 0.2 mm
Outer Jacket: PVC/LSZH Jacket
Plug
Type:Unshielded RJ45 8P8C CAT6A Modular Plug
Housing: UL listed 94V-0/1/2 flame retardant polycarbonate
IDC blades: phosphor bronze, gold plating over 100 μin of nickel in contact area
MECHANICAL
Retention: 50 N (11 lbf) for 60±5 s Installation Temperature: 0°C to +60°C
Mating cycle life: min 750 cycles Operating temperature: -20°C to +60°C
Tensile strength: ≥ 20 N per wire Minimum bend radius: 4 outer cable diameters
Product Details:

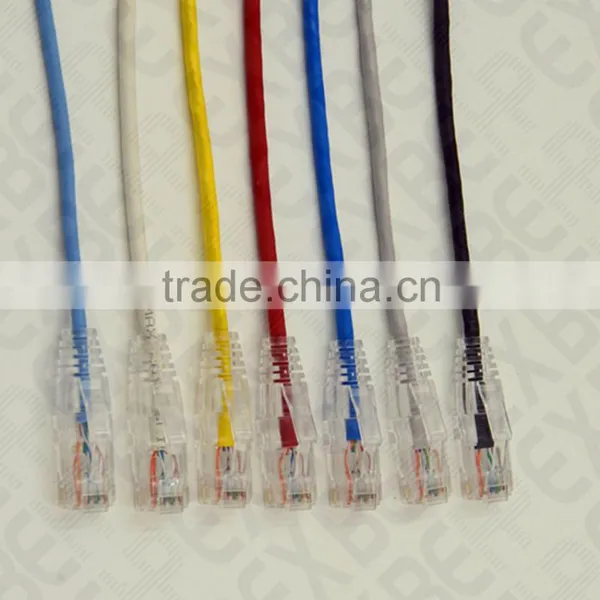

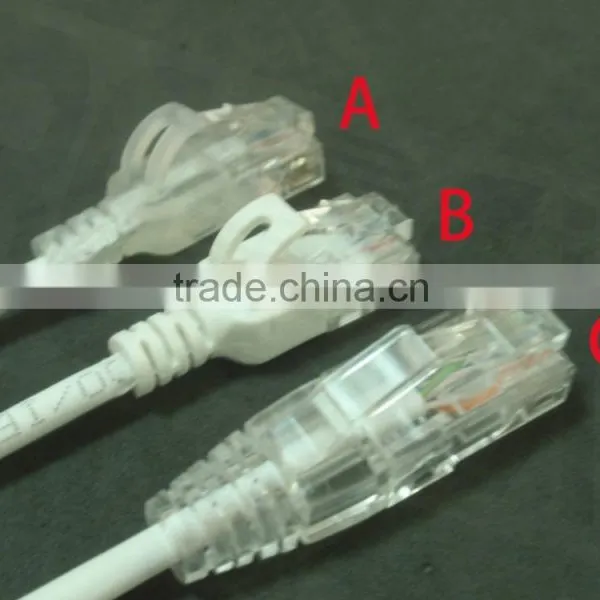

Boot Type
Test Limit

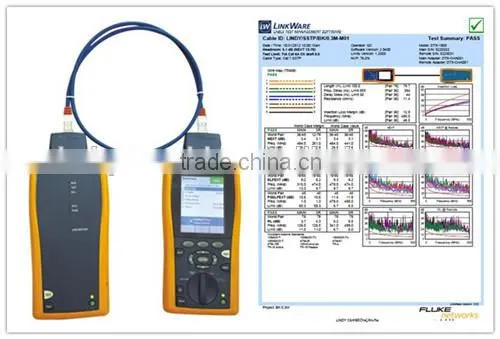

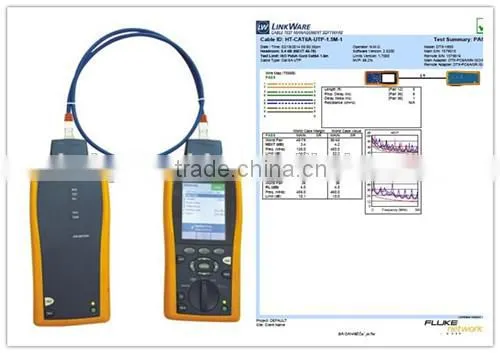

Component Level Tested ( DTX 1800 Fluke ISO Patch Cord Test )
Fluke DTX1800 Channel Test

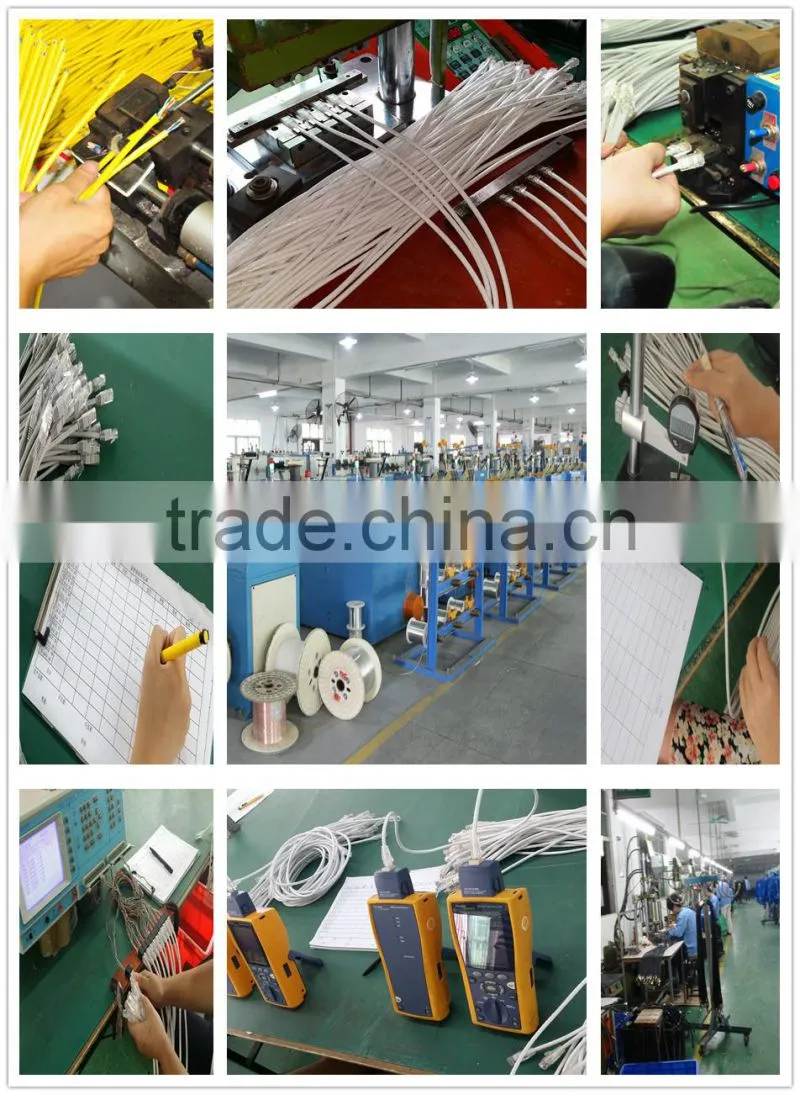

Production Procedure

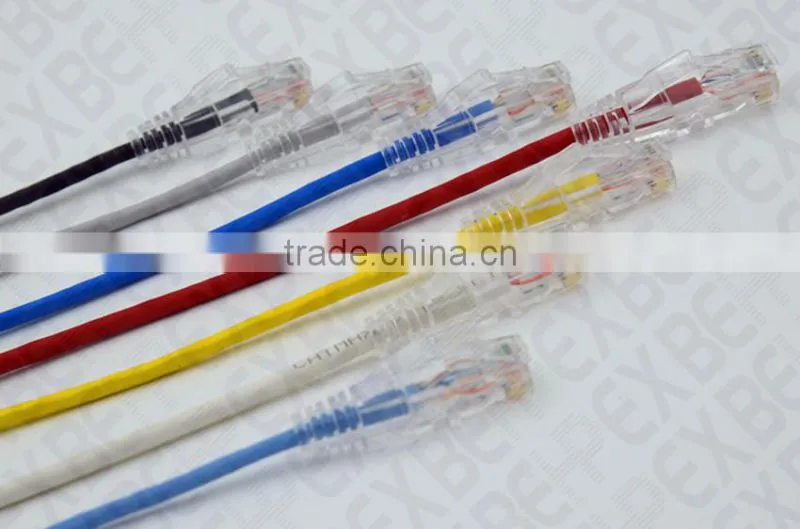

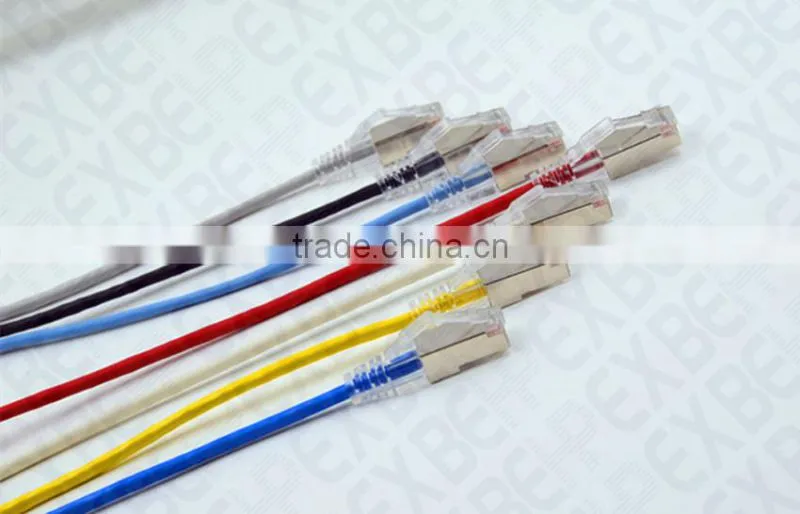

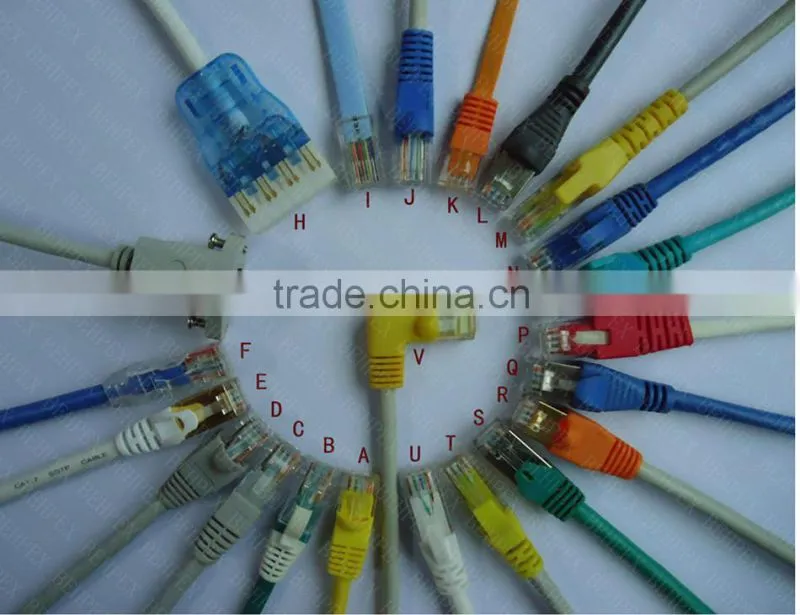

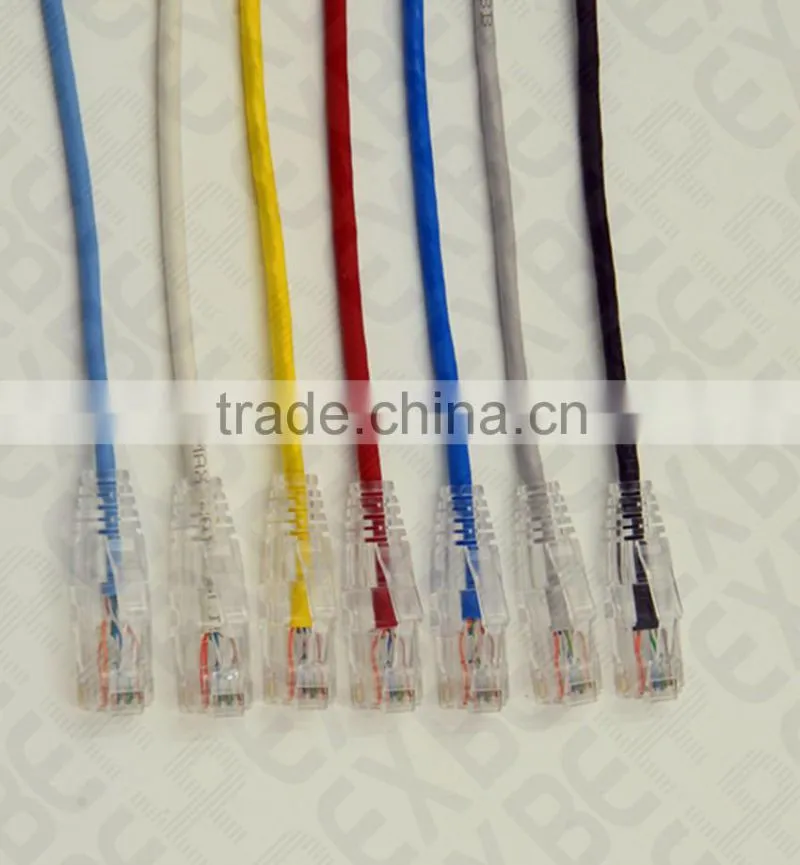

Color
Packing Rate

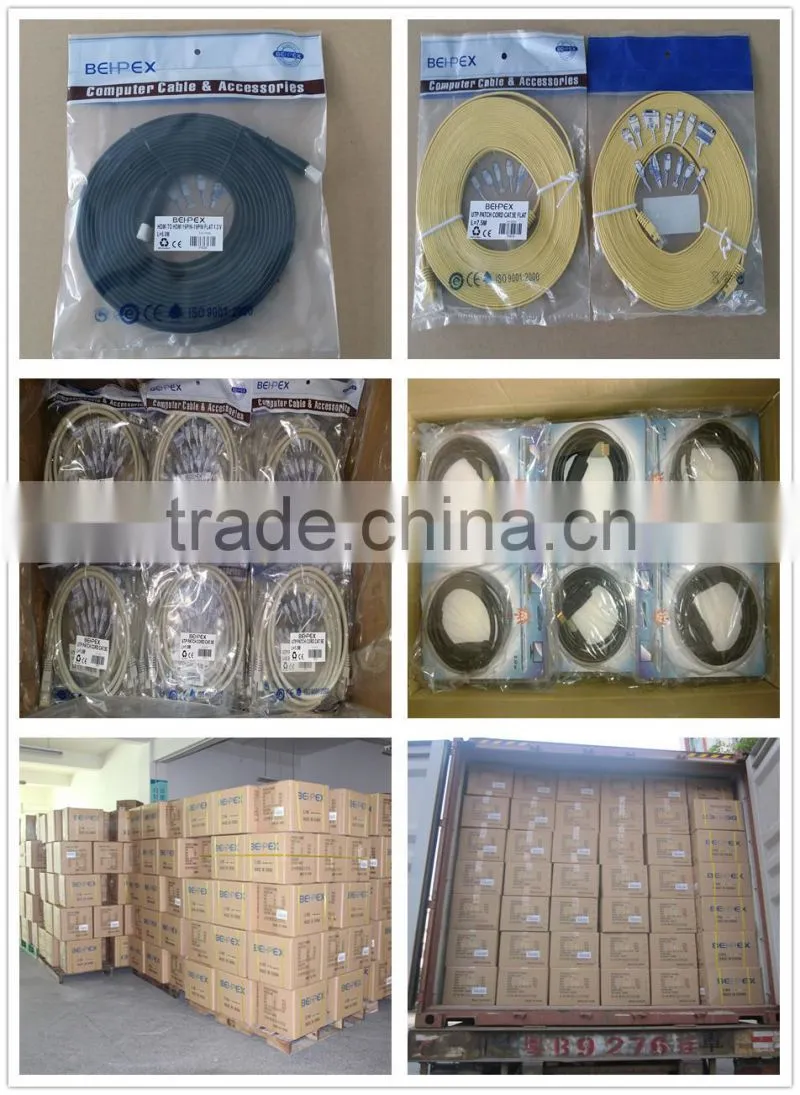

Package

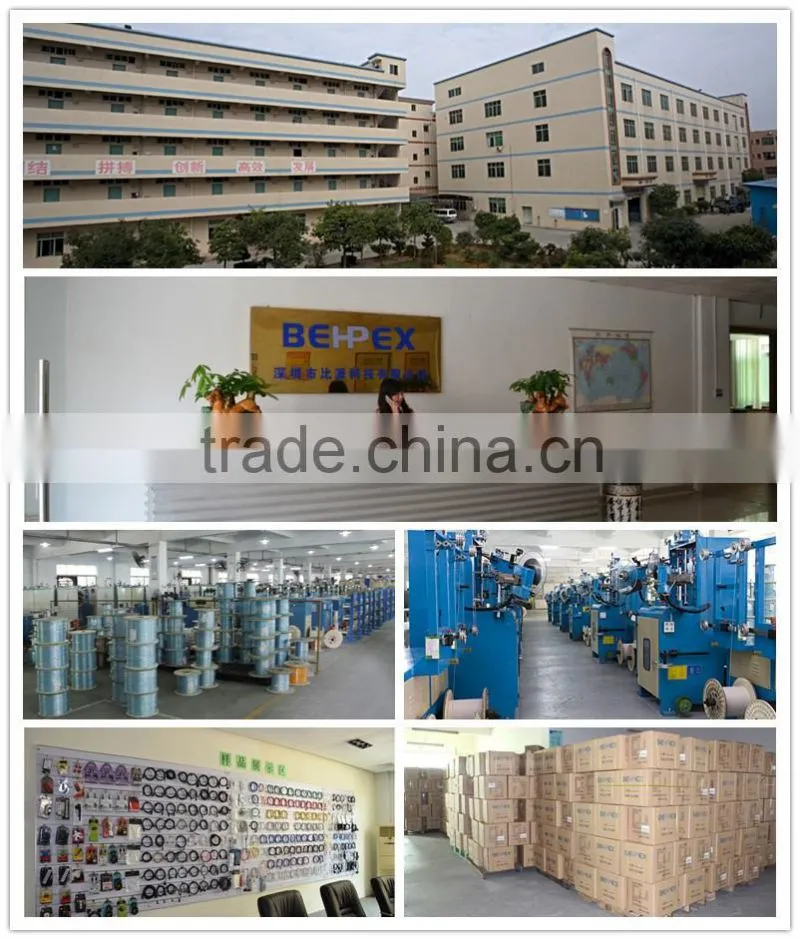

Factory Info
Send Inquiry to This Supplier
