High speed CAT7a SFTP CAT7 lan cablewith high quality
Features
TIA/EIA-568B.2-1;ISO/IEO 11801;NEC/CEC
Fire protection – IEC60332-1 (CM)
Application: Horizontal communication cable; for outdoor installation
Construction
Conductor: Bare Solid Copper Pair Identification: Pair1= Blue/White Pair2= Orange/White
Conductor Dia.:0.57mm+0.05mm (23AWG) Pair 3= Green/White Pair4= Brown/White
Pair Indulation: Polyethylene
Drain Wire:0.50mm
Outer Cable Diameter:7.5 ± 0.3mm
Outer Jacket: PVC/LSZH/CM/CMR/CMP Jacket
TECHNICAL MECHANICAL
Installation Temperature: 0°C to +60°C Pulling strength: 130 N
Operating temperature: -20°C to +75°C Minimum bend radius: 4 outer cable diameters
DC Resistance Unbalance :5% Dielectric Breakdown:1000 Volts DC Conductor to Conductor
Pair-to-Ground Capacitance Unbalance :330 pF/100 m Velocity of Propagation:PE=65%
Capacitance:14pF/ft nominal Maximum Skew:45ns@100 meters
PACKAGING

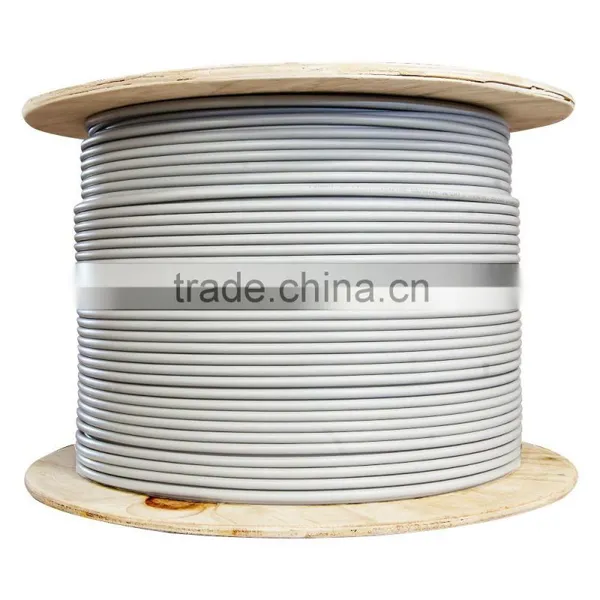

305m/1000ft/roll; 500m/wooden reel;1000m/wooden reel
