Specifications
1.volvo diesel generator 200kva2.ISO,CE certificate
3.one year warranty
4.vovlo technology
Factory price original volvo diesel generator 200kva with CE,ISO
1. volvo diesel generator 200kva general specifications:
Volvo have been widely used in large and small automobiles, heavy-duty trucks, engineering machineries and ships. Moreover, they are the ideal drive force of power generation sets. Volvo engines have high load capability as well as fast and reliable cold start performance.
2.VOLVO Diesel Generator Technical Data
Genset Technical Data | |
Prime power |
200 kW |
Standby power |
22 0kW |
Rated speed |
1500 RPM |
Output frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V |
Noise dB(A) @7m |
100 |
Engine model |
TAD734GE |
Alternator model |
MP-200-4 |
VOLVO Diesel Engine Technical Data
Engine Model |
TAD734GE |
Configuration |
4 cycle , 6 cylinders in line |
Aspiration |
Turbochargerd |
Bore×Stroke |
108x130 mm |
Rated speed |
1500rpm |
Displacement |
7.15 L |
Compression ratio |
17.0:1 |
Prime Power |
217KW |
Speed Governor |
Electronic |
Cooling System |
water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
204g/kw.h |
Starter Motor |
24V, |
Stamford Alternator Technical Data
Alternator model |
UCD274K |
Alternator manufacturer |
Stamford |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
200kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V(Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |
Control panel
The generator control panel is manufactured locally
Standard engine instrumentation
Voltmeter with selector switch
Ammeter with selector switch
Frequency meter
Current transformers
Instrument fuses duly wired and ferruled
Mcb of suitable rating with overload and short-circuit protection
With AMF control panel or with ATS (automatic transfer system)
With EPA certification
Accessories
1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.

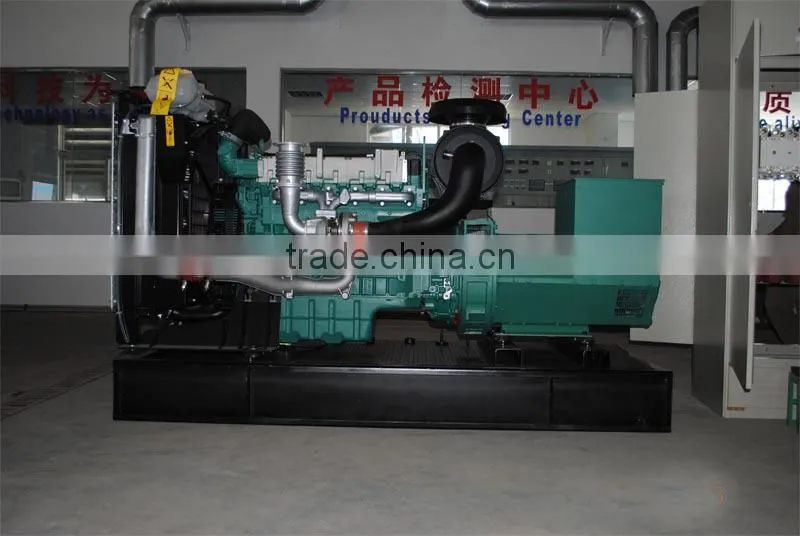

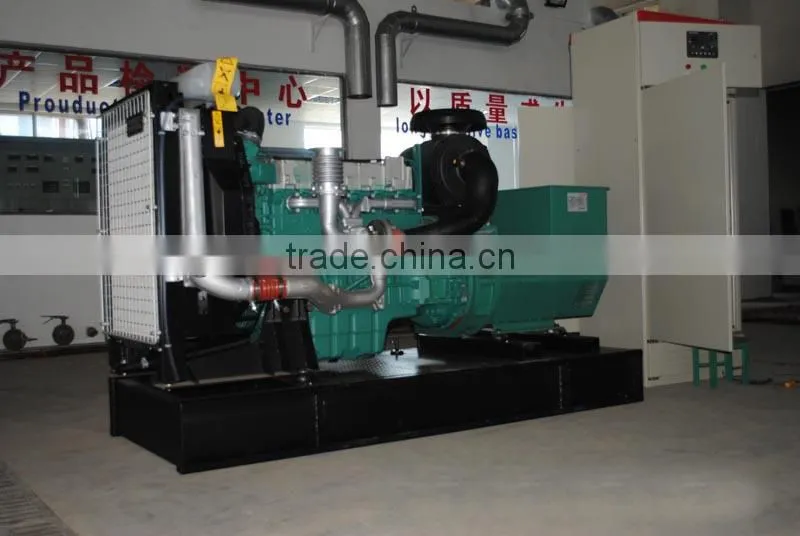

Genset Photos
Silent type
