CE approved Diesel Power Magnet Generator 500KW For Sale
|
Genset general feature:
|
1.Generator can be used as Main industrial generator
2.CCS,BV, CE, ISO9001:2008 approved
3. Water Cooled by radiator
4. Adopt Vovol Engine
5.Marathon single-shaft alternator standard , Stamford/Sunvim/Siemens/Megaton alternator is optional
6.Parallel connection: Two and more normal industrial generating sets can transfer loading without stoping ,
and can realize parallel.
7.Standard SAE coupling the engine and alternator

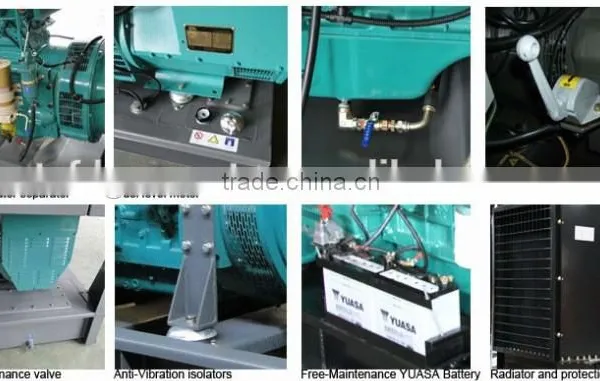

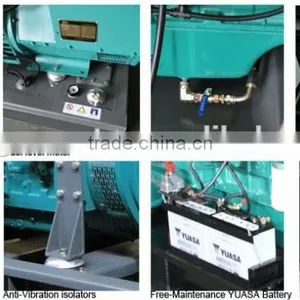

8.With efficiency anti-vibration devices
9.Cold rolled steel one time molded base
10.High reliability , low use and maintenance cost
|

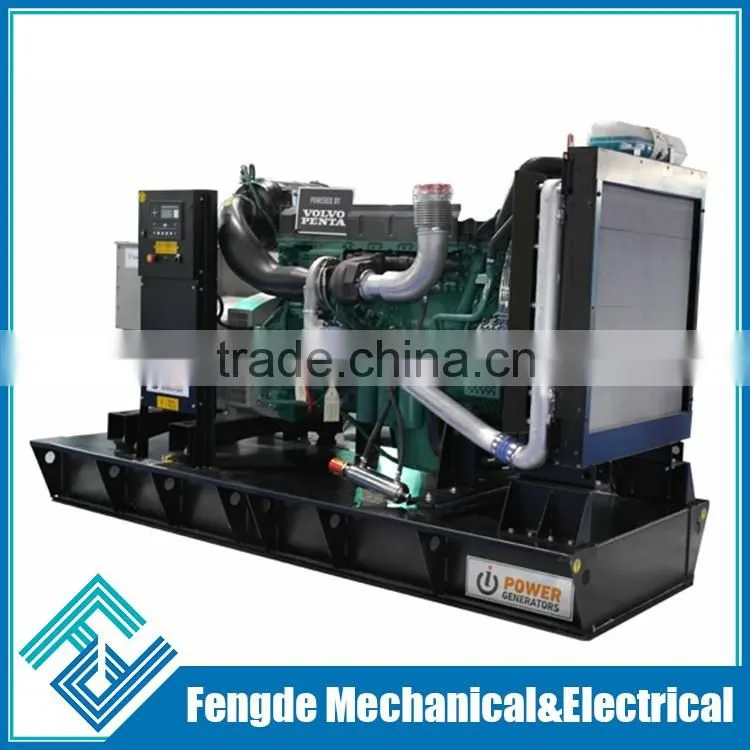

1.Main technical data of 500kW Volvo Penta Generator
| ||
1.1 |
Model |
FDV500GF |
1.2 |
Prime power |
500KW |
1.3 |
Prime voltage |
230/400V |
1.4 |
Speed |
1500 rpm |
1.5 |
Weight |
4000kg |
1.6 |
Overall dimension |
3400*1400*2050 mm (just for reference) |
2.Main technical data of engine | ||
Vovol engine, 4 stroke. DC start. Come with sea water pump, heater exchanger and expansion water tank, open-cycle cooling. | ||
2.1 |
Brand |
Vovol |
2.2 |
Model |
TAD1643GE |
2.3 |
Governor type |
Electronic |
2.4 |
Configuration |
4 cycle , 6 cylinder in line |
2.5 |
Cooling method |
water cooled by radiator |
2.6 |
Bore/Stroke |
144*165 mm |
2.7 |
Displacement |
16.12 L |
2.8 |
Starting method |
electronic |
2.9 |
Fuel consumption |
199g/kw.h |
3. Main technical data of alternator | ||
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation. | ||
3.1 |
Brand |
MARATHON |
3.2 |
Model |
MP-500-4A/S
|
3.3 |
Prime power |
500KW |
3.4 |
Configuration |
Brushless , self-exciting |
3.5 |
Prime voltage |
230V/400V |
3.6 |
Frequency |
50 HZ |
3.7 |
Power factor |
0.8(lagging) |
3.8 |
Phase/wire |
3 phase 4 wires |
3.9 |
Isolation |
H |
3.10 |
Protection grade |
IP23 |
|
68KW-500KW (85KVA-625KVA) Series
|
|
Photos of silent type
|
|

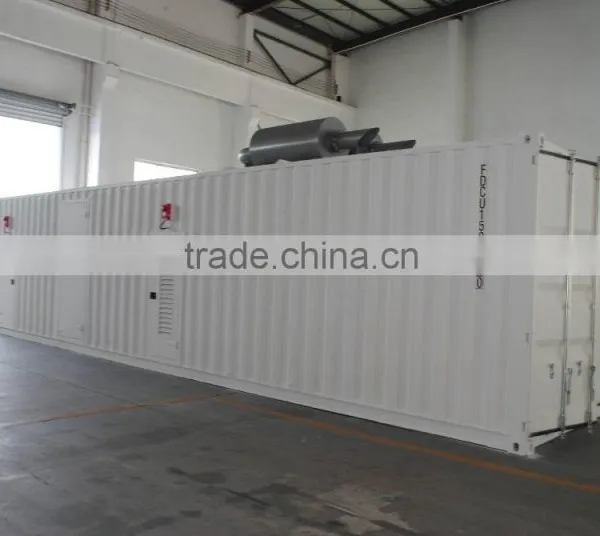

Photos of container type
|
|
Photos of trailer type
|
- According to ISO9001-2008 and GB/T 19001-2008 quality assurance model, Fengde company has set up a perfect technical service system, strict organization guarantee mechanism and rapid information feedback system, which can provide users with timely, good and thoughtful pre-sale, sale and after-sale serviece.
- To provide the energy situation investigation and analysis for users.
- To complete product appearance design and system solution according to customer's requirement.
- Available with user's training (site operation & theory training).
- Available with spare parts with more competitive price.
- To establish the user's database , one file for each user, available with a complete record of designing, producing and service process, to provide them continuously improved quality products and a lifetime service.
