Help CenterGenuine Volvo Penta Engine Soundproof 300kva Volvo Generator With CE,ISO
Related Products
-
Factory Price Original Volvo Diesel Generator 200kva With CE,ISOUS$ 8,500 - 158,000MOQ: 1 Set -
CE Approved Volvo Genset 200kva PriceUS$ 9,999 - 999,999MOQ: 1 Set
-
CE Approved Diesel Power Magnet Generator 500KW For SaleUS$ 9,999 - 999,999MOQ: 1 Set
-
120KW Volvo Generator Power With Best PriceUS$ 9,999 - 999,999MOQ: 1 Set
-
China Famous Brand Volvo 200kva Generator Supplier With CE,ISOUS$ 8,500 - 158,000MOQ: 1 Set
Specifications
1.300kva volvo generator2.ISO,CE certificate
3.reliable performance
4.global service for 12 montth
Genuine volvo penta engine soundproof 300kva volvo generator with CE,ISO
1. 300kva volvo generator specifications:
1) Output range:300kva (240kw)
2) Engine model: volvo engine
3) Alternator: Stamford
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) Sound-proof / weather-proof generator is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wiresalternating current output
2. Technical Data:
Genset Technical Data | |
Prime power |
260 kW |
Standby power |
286 kW |
Rated speed |
1500 RPM |
Output frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V |
Noise dB(A) @7m |
100 |
Engine model |
TAD941GE |
Alternator model |
MP-260-4 |
VOLVO Diesel Engine Technical Data
Engine Model |
TAD941GE |
Configuration |
4 cycle , 6 cylinders in line |
Aspiration |
Turbochargerd |
Bore×Stroke |
120x138 mm |
Rated speed |
1500rpm |
Displacement |
9.36 L |
Compression ratio |
17.4:1 |
Prime Power |
280KW |
Speed Governor |
Electronic |
Cooling System |
water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
202g/kw.h |
Starter Motor |
24V, |
Marathon Alternator Technical Data
Alternator model |
MP-260-4 |
Alternator manufacturer |
Marathon |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
260 kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V(Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |
3. Warranty
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
4. Document:
1) Alternator operation and maintenance manual 1PC
2)Engine operation and maintenance manual 1PC
3)Generator Overall drawings of the set 1PC
4)Electrinic system drawing 1PC
5)Bench test 1PC
6)Packing list 1PC
5.picture

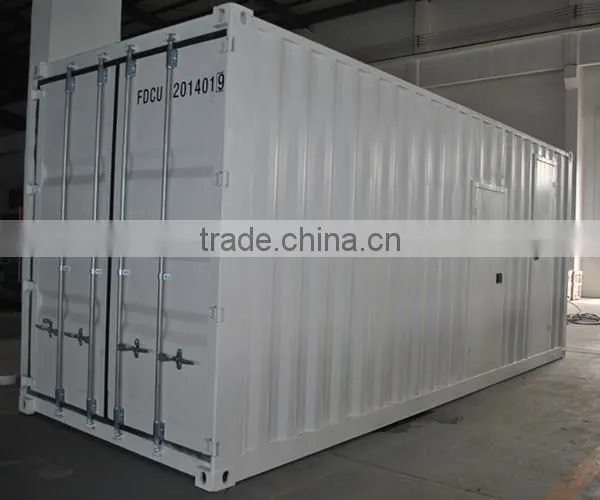

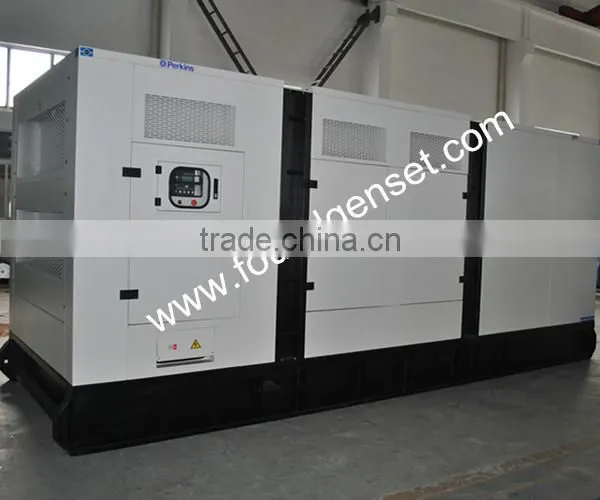

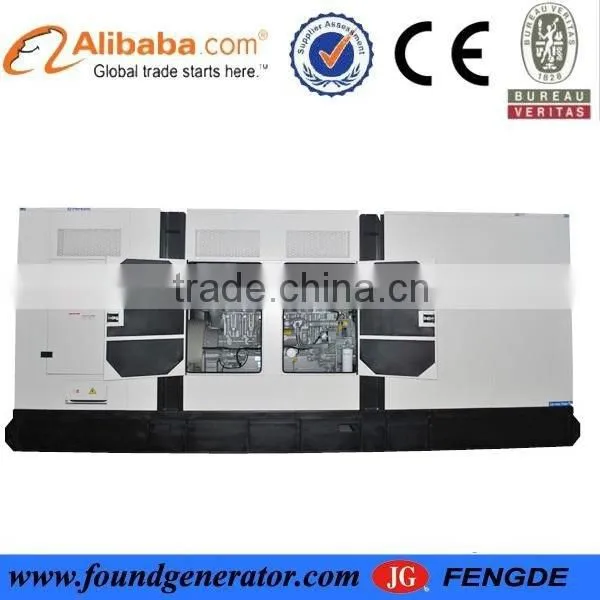

Soundproof generator
Open type Generator
