Specifications
1.250kw trailer diesel generator2.ISO,CE certificate
3.global service for 12 month
4.two wheels or four wheels
1.Description:

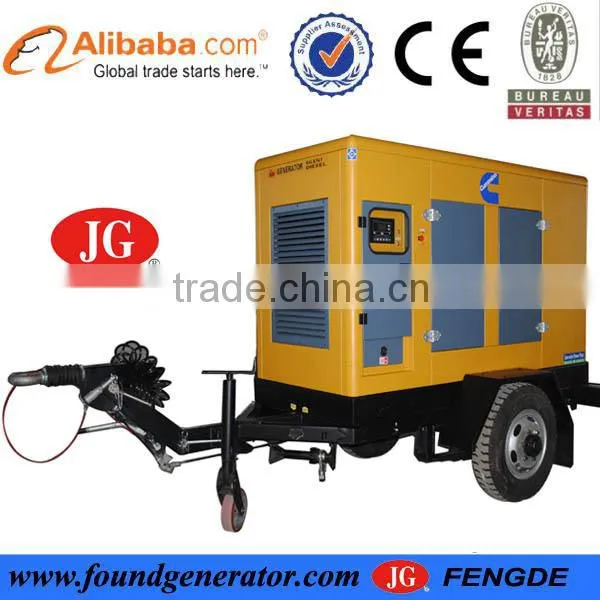

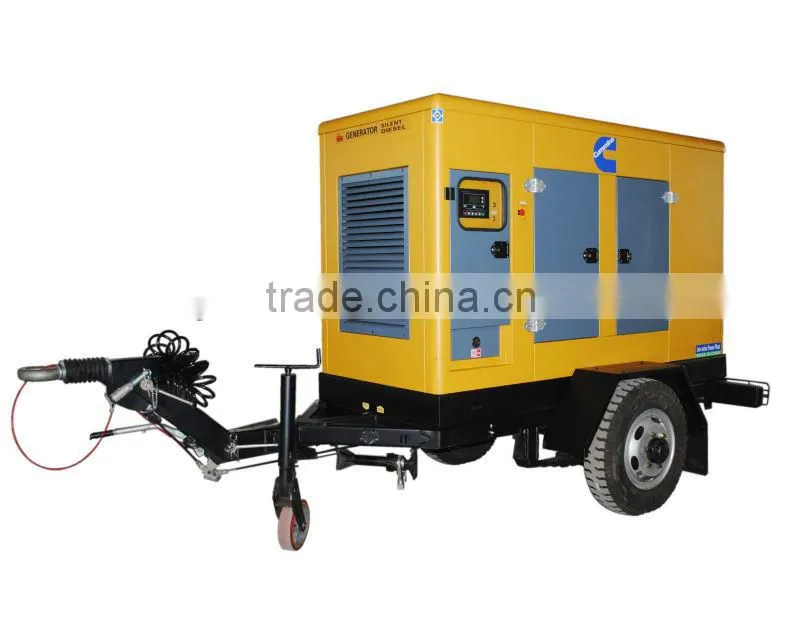

250kw trailer diesel generator
1).One year warranty
2). ISO,CE certificate
3).ATS/AMF is optional
4).In stock
We are the top VIP supplier on Alibaba ,
authorized by famous certification authority-BV ( Bureau Veritas ).
2.Technical Data:
Cummins Diesel Engine Technical Data
Engine Model |
NTA855-G1B |
Configuration |
4 cycle , 6 cylinders in line |
Aspiration |
Turbocharged after water-cooled |
Bore×Stroke |
140 x152 mm |
Rated speed |
1500rpm |
Displacement (Liter) |
14.0L |
Compression Ratio |
14.0:1 |
Prime Power |
283KW |
Speed Governor |
electrical |
Cooling System |
Water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
201g/kw.h |
Starter Motor |
DC24V, |
Marathon Alternator Technical Data
Alternator model |
MP-250-4 |
Alternator manufacturer |
Marathon |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
250 kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V(Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |
3.Warranty:
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
4.Supply documents:
|
a. Alternator operation and maintenance manual |
1PC |
|
b. Engine operation and maintenance manual |
1PC |
|
c. Generator Overall drawings of the set ELECTRINIC SYSTEM DRAWING Bench test Packing list |
1PC 1PC 1PC 1PC |
|
d. Control panel operation and maintenance manual |
1PC |
6.picture of control system and factory:
