Specifications
1.200kva silent diesel generators2.ISO,CE certificate
3.one year warranty
4.75dB at the distance of 7 meters
1. 200kva silent diesel generators general feature:
1) Output range: 160kW (200kVA)
2) Engine model: cummins engine
3) Alternator: Stamford, Marathon series Stamford copy
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) Sound-proof / weather-proof generator is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wiresalternating current output
9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: ≤+10%
12) Frequency return time: ≤3s
13) Voltage deviation at stable state: ≤±1%
14) Voltage deviation at instantaneous state: ≤+20%15) Voltage return time: ≤4s16) Voltage modulation: ≤0.3%
15)Generatig power :from 20KW to 1200KW
We are the top VIP supplier on Alibaba ,
authorized by famous certification authority-BV ( Bureau Veritas ).
2.diesel generator Technical Data:
.Main technical data of industry gensets | ||
1.1 |
Model |
JGC160GF |
1.2 |
Prime power |
160KW/176KVA |
1.3 |
Prime voltage |
230/400V |
1.4 |
Speed |
1500 rpm |
1.5 |
Weight |
2500kg |
1.6 |
Overall dimension |
1670×850×1270mm (just for reference) |
2.Main technical data of engine | ||
Cummins engine, 4 stroke. DC start. | ||
2.1 |
Brand |
CumminS |
2.2 |
Model |
6CTAA8.3-G2 |
2.3 |
Prime power |
188KW |
2.4 |
Governor type |
Electronic |
2.5 |
Configuration |
4 cycle , 6 cylinder in line |
2.6 |
Air Intake System |
Natural Aspirate |
2.7 |
Bore/Stroke |
114×135mm |
2.8 |
Displacement |
3.9 L |
2.9 |
Starting method |
Electric |
2.10 |
Compression ratio |
17:1 |
2.11 |
Fuel consumption |
205g/kw.h |
3. Main technical data of alternator | ||
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation. | ||
3.1 |
Brand |
MARATHON |
3.2 |
Model |
MP-160-4 |
3.3 |
Prime power |
160kW |
3.4 |
Configuration |
Brushless , self-exciting |
3.5 |
Prime voltage |
230V/400V |
3.6 |
Frequency |
50 HZ |
3.7 |
Power factor |
0.8(lagging) |
3.8 |
Phase/wire |
3 phase 4 wires |
3.9 |
Isolation |
H |
3.Warranty:
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.

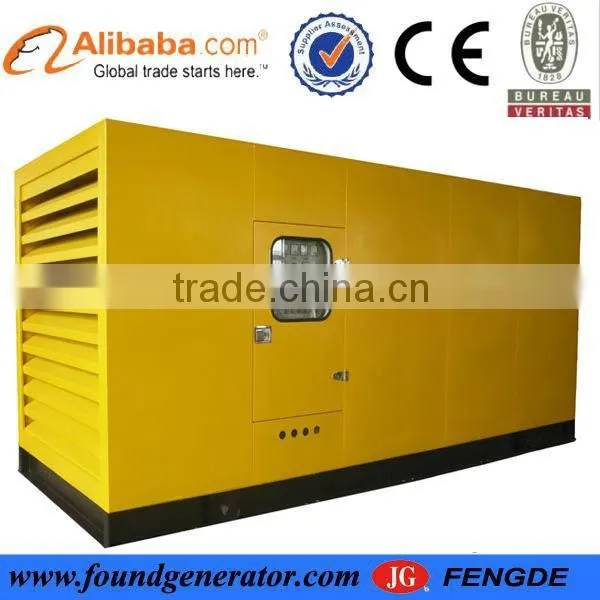

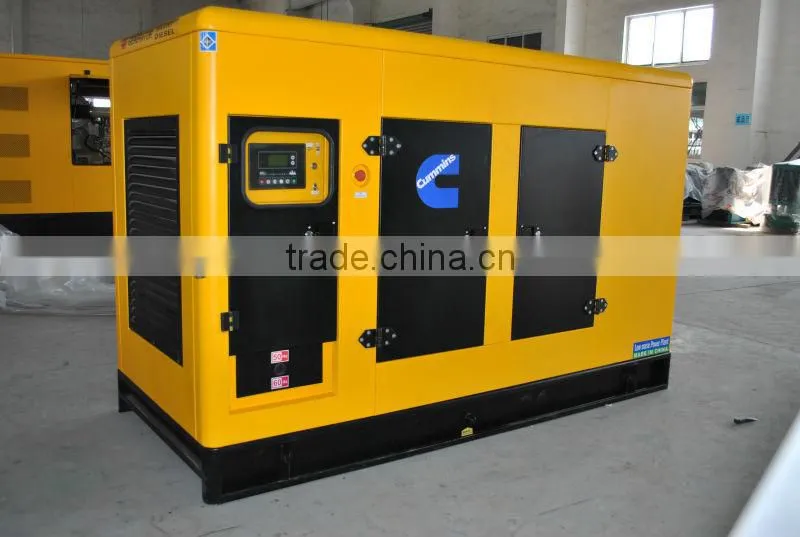

4.Picture :
product for reference
