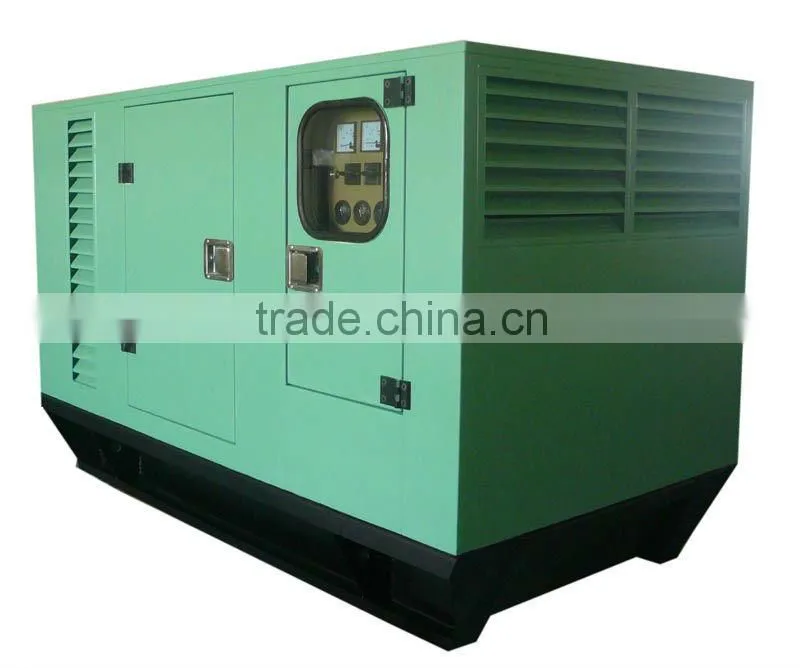

Best Price Sale Silent Generator 15kw

US$ 6,500 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

JGC15GF

Taizhou Fengde Mechanical & Electrical Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name JG

Model Number JGC15GF

Output Type AC Three Phase

Speed 1500rpm/1800rpm

Frequency 50hz/60hz

Rated Power 15kw

Rated Voltage 400v/440v

Rated Current 27A

Specifications

1.silent generator 15kw
2.ISO,CE certificate
3.gloabal service for 12 month
4.fast delivery time

1. silent generator 15kw general feature:

1) factory direct sale

2) relibale performance

3) best service after sales

We are the top VIP supplier on Alibaba ,

authorized by famous certification authority-BV ( Bureau Veritas ).

2. Cummins Diesel Generator Technical Data:

Genset Model	16GF
Genset Output Power	20KVA
Rated Voltage	380/220V
Frequency	50Hz
Power Factor(COS)	0.8(lagging)
Dimension (L×W×H) (mm)	2000×900×1200
Net weight (kg)	1100
Diesel Engine
Brand	DCEC Cummins
Model	4B3.9-G2
Engine Structure	In line 4 cylinder, 4 stroke, turbocharged
Rotating Speed	1500r/min
Engine Cooling Method	Radiator for ambient temp 40^OC, belt driven cooling fan with cover
Governor System	Precise electrical governor system
Starting Method	12V DC, with Silicon commutating charging motor
Engine Filter System	Dry type air filter, fuel filter, oil filter
Displacement(L)	3.9
Compression Ratio	16.51
Bore×Stroke(mm)	102×120
100% load fuel consumption (L/h)	6.7
Lube capacity(L)	10.9
Alternator
Brand	Kaijieli(China-French joint venture Leory Somer technology)
Model	TWGII184E
Excite Type	Brushless ,Self-exciting, AVR automatic voltage regulating
Connecting Type	3 Phase and 4 Wires
Steady Frequency Change	05%
No load voltage	≥95%105%
Steady voltage	≤±1%
Insulation degree	H degree
Enclosure degree	IP21
The components of the genset
(1) Diesel engine; (2) Generator; (3) Control panel; (4) Silent box
The Accessories
Wave pipe , curved pipe , muffler , accumulator and the connecting lines , shock-absorbing spacer , and data .
Control Panel
The control panel is Ordinary integrative type control panel, with the display of voltage,current, frequency, water temperature, oil pressure.
