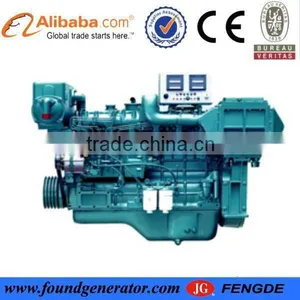

Yuchai Engine ,yuchai Marine Main Diesel Engines

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Engine:

4 Stroke

Engine Capacity:

> 6L

Taizhou Fengde Mechanical & Electrical Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Engine 4 Stroke

Fuel Type Diesel

Cylinders 6

Engine Position Inboard

Dimensions (L x W x H) (mm) 1280*780*1050

Specifications

Yuchai Marine Main Diesel Engine
1.One year warranty
2.CCS class certificate
3.TIER1/ TIER2
4.gear box is optional

Yuchai marine engine

CCS Class certificate

TIER1/ TIER2

Product Description

Yuchai power range from 30kw to 300kw;which we equip with Advanced brand marine geearbox,

and the gear rate is for our customers option.For this case, our marine engines have been widly used in

different boat, like fishing boats, small boat, cargo boat;

Technical Parameters of YC6105/08 Series Diesel Engines

Model		YC6105CA	YC6105CA1		YC6108CA	YC6108CA1	YC6108ZC	YC6108ZCA
Type		Vertical, in-line, water-cooled, 4-stroke
Intake way		Natural aspiration					Gas turbo-charging
No. of cylinders X Bore X Stroke mm		6×105×125			6×108×125
L Displacement		6.494			6.871
Compression ratio		16.5:1			17.5:1
Continuous power /speed(kW/r/min)		53(72)/1500		66(90)/2000	63(86)/1500	82(112)/2000	80(109)/1500	103(140)/2300
One-hour power/speed(kW/r/min)	Main machine	44(79)/1548		72.6(99)/2064	69.3(94)/1548	90.2(123)/2065	88(119)/1548	113.3(154)/2374
	Ancillary machine	44(79)/1500			69.3(90)/1500		88(119)/1500
Min. specific fuel consumption(g/kW·h)		≤218					≤210
Specific oil consumption (g/kW·h)		≤0.8
Crankshaft rotation direction (seen from power output end)		counterclockwise
Net weight (kg)		700					720
Overall dimensions (LxWxH) (mm)		1252×780×1075					1293×780×1198
Matched reduction gearbox		Hangzhou Qianjin Gearbox (models 120C, B170 etc.)			Hangzhou Qianjin Brand Gearbox (models HC65, 120C etc.)
Specification of connection with the gearbox		Casing:SAE3# Flywheel:11.5"
Overhaul period		more than 10000 hours
