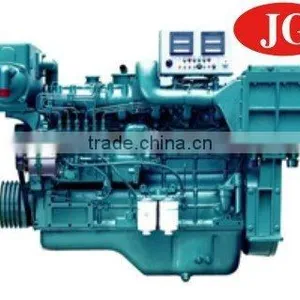

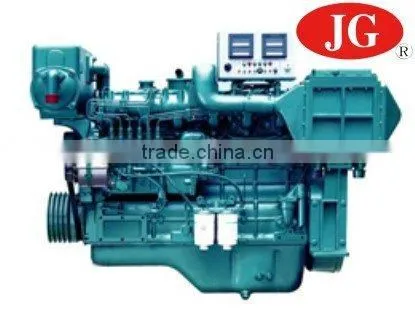

Yuchai Marine Diesel Engine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Output Type:

AC Three Phase

Taizhou Fengde Mechanical & Electrical Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name JG

Output Type AC Three Phase

Speed 1500-2374rpm

Rated Power 72-140HP

Specifications

Yuchai Marine Diesel Engine

Technical Parameters of YC6105/08 Series Diesel Engines

Model		YC6105CA	YC6105CA1		YC6108CA	YC6108CA1	YC6108ZC	YC6108ZCA
Type		Vertical, in-line, water-cooled, 4-stroke
Intake way		Natural aspiration					Gas turbo-charging
No. of cylinders X Bore X Stroke mm		6×105×125			6×108×125
L Displacement		6.494			6.871
Compression ratio		16.5:1			17.5:1
Continuous power /speed(kW/r/min)		53(72)/1500		66(90)/2000	63(86)/1500	82(112)/2000	80(109)/1500	103(140)/2300
One-hour power/speed(kW/r/min)	Main machine	44(79)/1548		72.6(99)/2064	69.3(94)/1548	90.2(123)/2065	88(119)/1548	113.3(154)/2374
	Ancillary machine	44(79)/1500			69.3(90)/1500		88(119)/1500
Min. specific fuel consumption(g/kW·h)		≤218					≤210
Specific oil consumption (g/kW·h)		≤0.8
Crankshaft rotation direction (seen from power output end)		counterclockwise
Net weight (kg)		700					720
Overall dimensions (LxWxH) (mm)		1252×780×1075					1293×780×1198
Matched reduction gearbox		Hangzhou Qianjin Gearbox (models 120C, B170 etc.)			Hangzhou Qianjin Brand Gearbox (models HC65, 120C etc.)
Specification of connection with the gearbox		Casing:SAE3# Flywheel:11.5"
Overhaul period		more than 10000 hours
