Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Yuchai Marine Engine-YC6A/6B Series

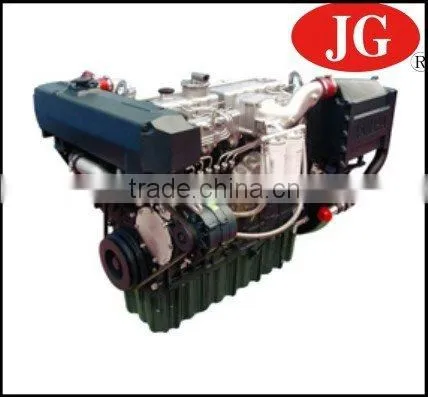

Yuchai Marine Engine-YC6A/6B Series
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
JG
Output Type:
AC Three Phase
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Yuchai Marine Diesel EngineNegotiableMOQ: 1 Set -
2015 China Factory Provide New 48hp Weichai Marine Diesel Engine PriceUS$ 2,500 - 4,000MOQ: 1 Set
-
Factory Price New 50kw Inboard Marine Diesel Engine for SaleUS$ 2,200 - 3,500MOQ: 1 Set
-
2015 New 32KW40KVA Weichai Series Marine Diesel Engine for SaleUS$ 1,500 - 3,000MOQ: 1 Set
-
65kw Marine EngineUS$ 3,000 - 10,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
JG
Output Type
AC Three Phase
Speed
1500-2300rpm
Rated Power
152-163HP
Specifications
Yuchai Marine EngineMain Technical Parameters of YC6A/6B Series Diesel Engines
Model |
YC6108ZLCB |
YC6A170C |
YC6A190C |
YC6A195C |
YC6A220C |
YC6108ZLCA |
YC6B150C |
YC6B165C |
|||||||
Type |
Vertical, in-line, water-cooled, 4-stroke |
||||||||||||||
Intake way |
Gas turbo-charging & inter-cooling
|
||||||||||||||
No. of cylinders X Bore X Stroke mm |
6×108×132
|
6×108×125
|
|||||||||||||
Displacement L |
7.252 |
6.871 |
|||||||||||||
Compression ratio |
17:1 |
17.5:1 |
|||||||||||||
Continuous power /speed(kW/r/min) |
112(152)/1500 |
125(170)/1500 |
140(190)/1800 |
145(197)/2300 |
162(220)/2300 |
90(122)/1500 |
110(150)/1800 |
120(163)/2300 |
|||||||
One-hour power/speed(kW/r/min) |
Main machine |
123.2(168)/1548
|
137.5(187)/1548 |
154(209)/1858 |
159.5(217)/2374 |
178.2(242)/2374 |
99(134)/1548 |
121(165)/1858 |
132(180)/2374 |
||||||
Ancillary machine |
123.2(168)/1500 |
137.5(187)/1500 |
99(134)/1500 |
||||||||||||
Min. specific fuel consumption(g/kW·h) |
≤205
|
≤208
|
|||||||||||||
Specific oil consumption (g/kW·h) |
≤0.5
|
≤0.8
|
|||||||||||||
Crankshaft rotation direction (seen from power output end) |
counterclockwise |
||||||||||||||
Net weight (kg) |
750 |
||||||||||||||
Overall dimensions (LxWxH) (mm) |
1252×780×1075
|
1415×910×1075
|
1415×877×1025
|
1408×877×1062
|
1415×877×1025
|
||||||||||
Matched reduction gearbox |
Hangzhou Qianjin brand gearbox (mjdels 120C, 135 etc.) |
HC65,135,120C etc
|
135,120C etc
|
HC65,120C etc
|
|||||||||||
Specification of connection with the gearbox |
Casing:SAE2#Flywheel:11.5"
Optional casing:135;Flywheel:135
|
Casing:135;
Flywheel:135
|
Casing:SAE2#
Flywheel:11.5"
|
Casing SAE2#
Flywheel:11.5"
Optional casing:135;
|
Casing:135;
Flywheel:135
|
Casing:SAE2#
Flywheel:11.5"
|
|||||||||
Overhaul period |
more than 12000 Hour
|
||||||||||||||
