Specifications
300kw Scania marine engine for marine diesel generatorone year or 1000 hours warranty
CCS BV approved
John Deere engine
We are the gold supplier in Alibaba!
The leading manufacture for land and marine use generator.
CE, CCS, BV approved

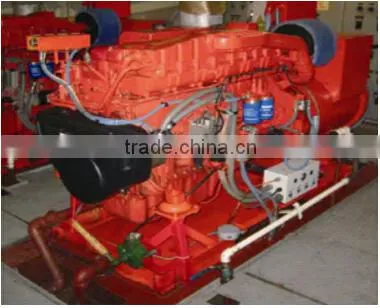

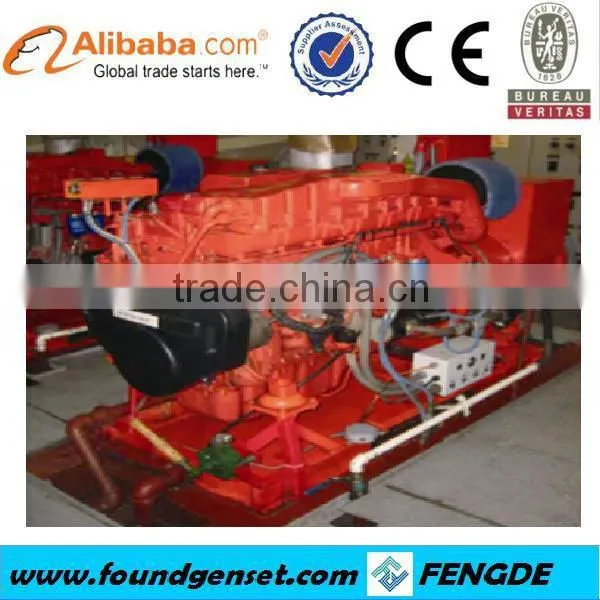

300kw Scania marine engine for marine diesel generator
|
Genset general feature:
|
1.Generator can be used as Main Marine generator , Marine emergency generator or Harbor generator
2.CCS,BV approved
3.Cooled by heat exchanger / radiator
4.Adopt Scania Engine
5.Marathon single-shaft alternator standard , Stamford alternator is optional
6.Parallel connection: Two and more normal marine generating sets can transfer loading without stoping ,
and can realize parallel.
7.Standard SAE coupling the engine and alternator
8.With efficiency anti-vibration devices
9.Cold rolled steel one time molded base
10.High reliability , low use and maintenance cost
|
1.Main technical data of gensets
| ||
1.1 |
Model |
CCFJ300J |
1.2 |
Prime power |
300KW |
1.3 |
Prime voltage |
230/400V |
1.4 |
Speed |
1500 rpm |
1.5 |
Weight |
2450kg |
1.6 |
Overall dimension |
2685*980*1260 mm (just for reference) |
2.Main technical data of engine | ||
Scania engine, 4 stroke. DC start. Come with sea water pump, heater exchanger and expansion water tank, open-cycle cooling. | ||
2.1 |
Brand |
Scania |
2.2 |
Model |
DI13 |
2.3 |
Prime power |
376KW |
2.4 |
Governor type |
Electronic |
2.5 |
Configuration |
4 cycle , 6 cylinders in line |
2.6 |
Cooling method |
By heater exchanger |
2.7 |
Bore/Stroke |
130×160 mm |
2.8 |
Displacement |
12.7 L |
2.9 |
Starting method |
Electric |
2.10 |
Fuel consumption |
200 g/kw.h |
3. Main technical data of alternator | ||
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation. | ||
3.1 |
Brand |
MARATHON |
3.2 |
Model |
MP-H-300-4 |
3.3 |
Prime power |
300KW |
3.4 |
Configuration |
Brushless , self-exciting |
3.5 |
Prime voltage |
230V/400V |
3.6 |
Frequency |
50 HZ |
3.7 |
Power factor |
0.8(lagging) |
3.8 |
Phase/wire |
3 phase 4 wires |
3.9 |
Isolation |
H |
|

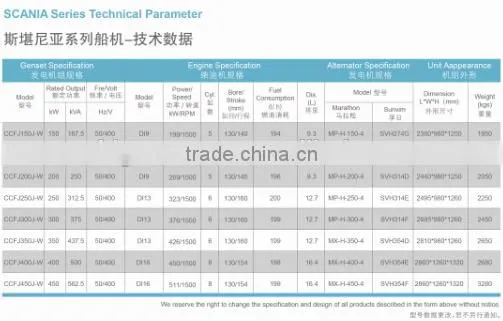

150KW-450KW (188KVA-560KVA) Series
|
|
Photos of open type
|
|
Photos of silent type
|
|
Photos of container type
|
