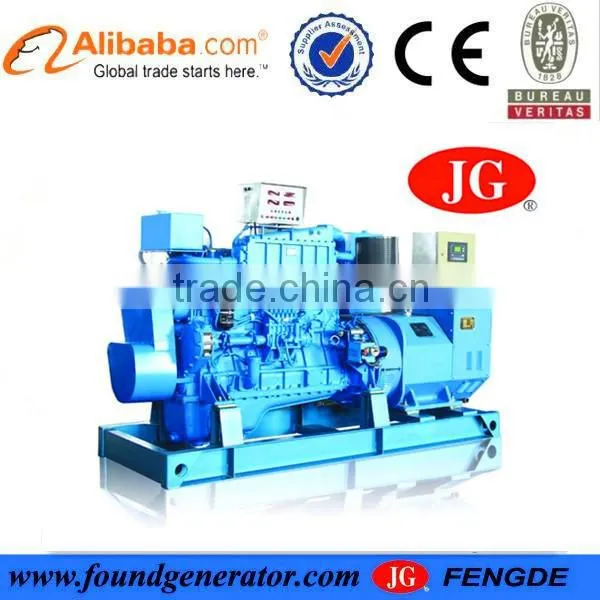

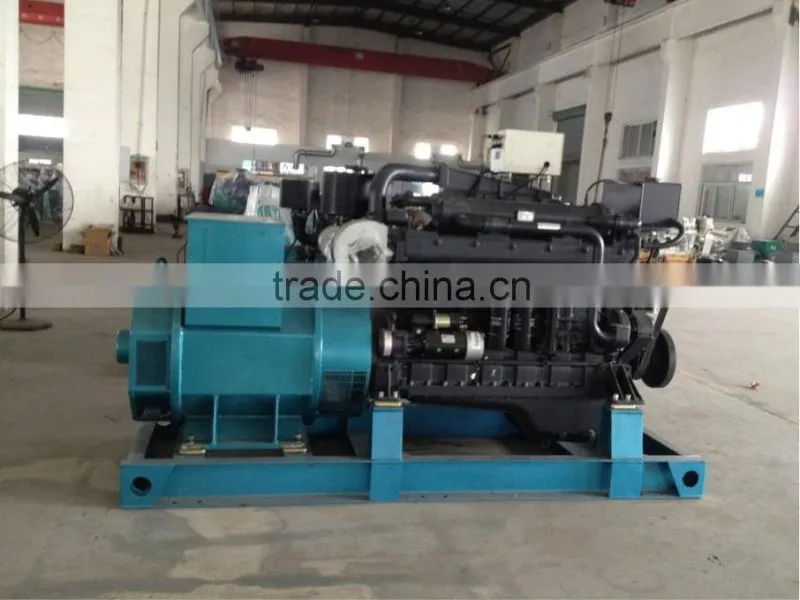

Help CenterChinese TOP Supplier Famous Shangchai Marine Genset 250KW Price BV Approved
Related Products
-
Chinese Top Supplier BV Approved Famous Brand 200kw MWM Marine Diesel Generator PriceNegotiableMOQ: 1 Set -
China Top Factory 1000KW MWM Generator PriceNegotiableMOQ: 1 Set
-
1000kw MWM Marine Diesel GeneratorUS$ 6,000 - 50,000MOQ: 1 Set
-
Hot Sale 750kw MWM Marine Diesel Generator PriceUS$ 6,000 - 50,000MOQ: 1 Set
-
3 Phase 500kw MWM Marine Diesel Generator PriceUS$ 6,000 - 50,000MOQ: 1 Set
Specifications
1,one year warranty and global service2,BV certificate
3,ATS or AMF
4,low fuel consumption
We are specific in this field for more than 20 years and the top vvip supplier on alibaba!
We have our own factory and many senior engineers.
Our products can meet the needs of different voltage and frequency.
If you have any demands not hesitate to contact us!
Criterion
- GB/T13032-1991
- ISO9001:2008 Quality Control System
- CCS approved
Engine Specification
Shangchai Diesel Engine
Technical Data
Engine Model |
G128ZLCaf3 |
Number of Cylinders |
6 cylinders in line |
Cycle |
4 stroke |
Aspiration |
Turbocharged and aftercooled |
Bore×Stroke |
135 x150 mm |
Displacement |
12.88 L |
Prime Power/Speed |
276KW/1500rpm |
Speed Governor |
electrical |
Cooling System |
By heat exchanger |
Fuel Consumption at 100% Load |
197 g/kw.h |
Starter Motor |
DC24V |

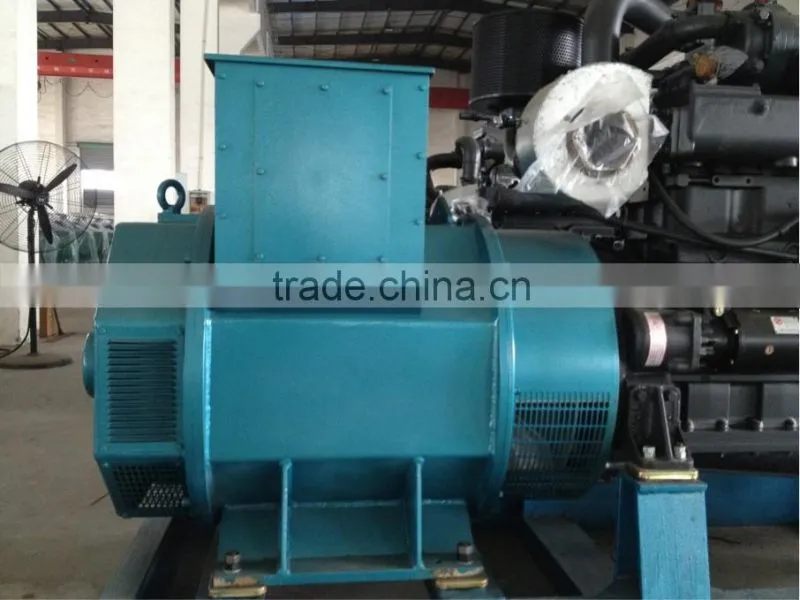

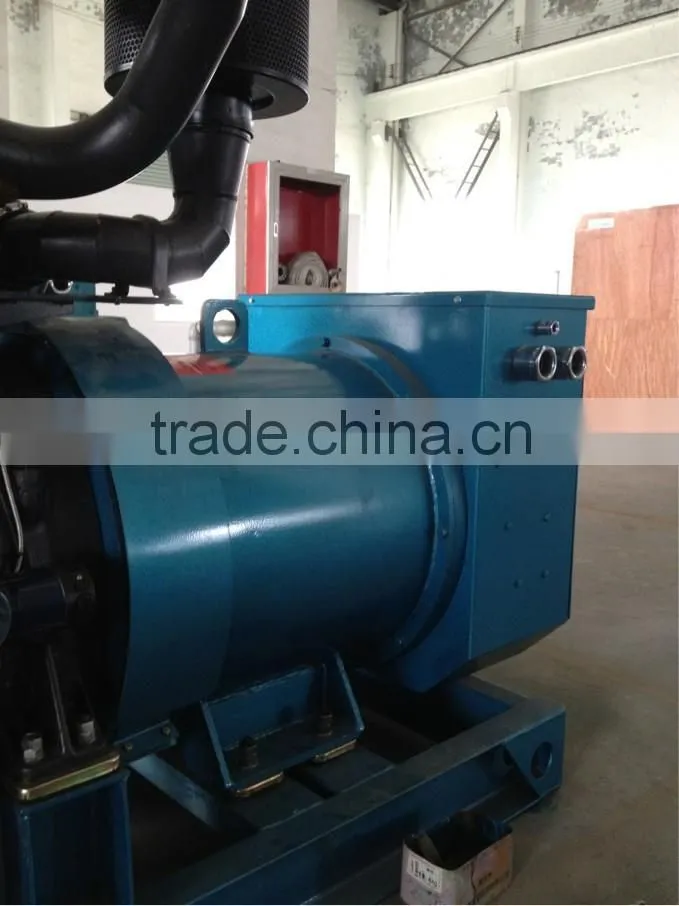

Alternator Specification
SUNVIM Alternator (Standard)
Technical Data
Alternator Model |
SVH314 |
Prime power |
250KW |
Frequency/speed |
50HZ/1500rpm |
Exciter type |
Brushless, Self-excited |
Power factor |
0.8 |
Insulation Grade |
H |
Protection Grade |
IP23 |
Phase / wire |
3 phase 4 wires |
control system
MODEL:MFKC200AG
*Microcomputer digital control, and reliable work;
*Digital display of parameters of diesel engine, and integration of measuring and monitoring;
*Modularization of functional configuration, and ntegration of product structures;
*Resistance to vibration, humidity, salt mist and high/low temperature;
*Powerful ability to resist interference, convenient installation and use, and high performance-price ratio;
*Remote monitoring of running parameters;
*Automatic zero set of lubricating oil pressure
*Accumulation of running period of diesel engine.
