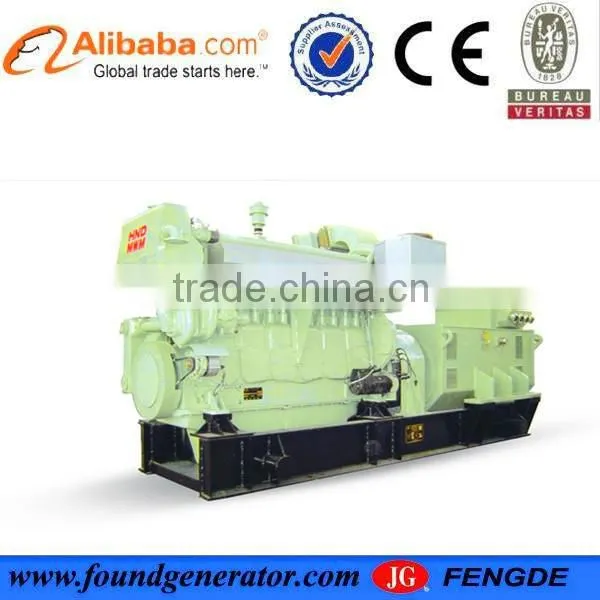

Help CenterChinese Top Supplier BV Approved Famous Brand 200kw MWM Marine Diesel Generator Price
Related Products
-
China Top Factory 1000KW MWM Generator PriceNegotiableMOQ: 1 Set -
1000kw MWM Marine Diesel GeneratorUS$ 6,000 - 50,000MOQ: 1 Set
-
Hot Sale 750kw MWM Marine Diesel Generator PriceUS$ 6,000 - 50,000MOQ: 1 Set
-
3 Phase 500kw MWM Marine Diesel Generator PriceUS$ 6,000 - 50,000MOQ: 1 Set
-
World Famous Brand MWM Marine Diesel Generator PriceUS$ 6,000 - 50,000MOQ: 1 Set
Specifications
1,one year warranty and global service2,high quality
3.factory direct sale
4.BV certificate
We are specific in this field for more than 20 years and the top vvip supplier on alibaba!
We have our own factory and many senior engineers.
Our products can meet the needs of different voltage and frequency.
If you have any demands not hesitate to contact us!
Criterion
- GB/T13032-1991
- SO9001:2008 Quality Control System
- CCS approved
Engine Specification
MWM Diesel Engine
Technical Data
Engine Model |
TBD234V8 |
Number of Cylinders |
8 cylinders in V |
Cycle |
4 stroke |
Aspiration |
Turbocharged and after cooled |
Bore×Stroke |
128x 140 mm |
Displacement |
14.4L |
Compression ratio |
15:1 |
Prime Power/Speed |
249KW/1500rpm |
Speed Governor |
electrical |
Cooling System |
By heat exchanger |
Fuel Consumption at 100% Load |
196 g/kw.h |
Starter Motor |
DC24V |
Alternator Specification
Marathon Alternator (Standard)
Technical Data
Alternator Model |
MP-H-200-4 |
Prime power |
200KW |
Frequency/speed |
50HZ/1500rpm |
Exciter type |
Brushless, Self-excited |
Power factor |
0.8 |
Insulation Grade |
H |
Protection Grade |
IP23 |
Phase / wire |
3 phase 3 wires |
Control System
Model KCMII G
*engine start/stop
*engine coolant temperature
*oil pressure and temperature
*tachometer
*coolant temperature alarm
*oil pressure alarm
*battery charging indicator
*generator to be protection from overload and overheat
