Specifications
600KW Baudouin diesel marine generator with best price1/one year or 1000hrs warranty
2/Baudouin engine,marine use
We are the gold supplier in Alibaba!
The leading manufacturer for land and marine use generator.
CE, CCS, BV, ISO9001:2008 approved
Name: 600KW Baudouin diesel marine generator with best price
Genset general feature: |
1.Generator can be used as Main Marine generator , Marine emergency generator or Harbor generator
2.CCS,BV, CE, ISO9001:2008 approved
3.Cooled by heat exchanger
4.Adopt Baudouin Engine
5.Marathon single-shaft alternator standard , Stamford alternator is optional
6.Parallel connection: Two and more normal marine generating sets can transfer loading without stoping ,
and can realize parallel.
7.Standard SAE coupling the engine and alternator
8.With efficiency anti-vibration devices
9.Cold rolled steel one time molded base
10.High reliability , low use and maintenance cost
1.Main technical data of gensets | ||
1.1 |
Model |
CCFJ600J |
1.2 |
Prime power |
600KW |
1.3 |
Prime voltage |
230/400V |
1.4 |
Speed |
1500 rpm |
1.5 |
Weight |
5000kg |
1.6 |
Overall dimension |
3637*1372*1962 mm (just for reference) |
2.Main technical data of engine | ||
Baudouin engine, 4 stroke. DC start. Come with sea water pump, heater exchanger and expansion water tank, open-cycle cooling. | ||
2.1 |
Brand |
Baudouin |
2.2 |
Model |
12M26 |
2.3 |
Governor type |
Electronic |
2.4 |
Configuration |
4 cycle , 12 cylinder in V type |
2.5 |
Cooling method |
By heater exchanger |
2.6 |
Bore/Stroke |
150*150 mm |
2.7 |
Displacement |
31.8L |
2.8 |
Starting method |
Electric |
2.9 |
Fuel consumption |
143.5L/h |
3. Main technical data of alternator | ||
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation. | ||
3.1 |
Brand |
MARATHON |
3.2 |
Model |
MX-H-600-4 |
3.3 |
Prime power |
600KW |
3.4 |
Configuration |
Brushless , self-exciting |
3.5 |
Prime voltage |
230V/400V |
3.6 |
Frequency |
50 HZ |
3.7 |
Power factor |
0.8(lagging) |
3.8 |
Phase/wire |
3 phase 4 wires |
3.9 |
Isolation |
H |

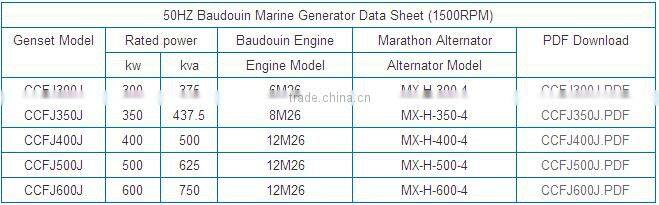

300KW-600KW (375KVA-750KVA) Series |
Photos of open type |
Photos of silent type |
Photos of container type |
