Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > CE Approved 60hz 3 Phase 4BT3.9-G2 40kva Generator

CE Approved 60hz 3 Phase 4BT3.9-G2 40kva Generator

US$ 6,500 - 8,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

CCFJ30J

Contact Supplier Request Quote Chat Now

Taizhou Fengde Mechanical & Electrical Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name JG

Model Number CCFJ30J

Output Type AC Three Phase

Speed 1800rpm

Frequency 60hz

Rated Power 30kw

Rated Voltage 400v

Rated Current 54A

Specifications

1.40kva generator
2.ISO,CE certificate
3.global service for 12 month
4.reliable quality

1. 40kva generator general feature:

Fengde Cummins series marine generator have features of compact structure, large power , low oil consumption , low discharge, low noise, reliable performances, and long services life .Its professional service networks are spread across the country and world , which can provide 24 hours after service and assure the supplying of accessories in time .
Feature:
Marine generator can use for Marine generator,

  Marine emergency generator or Harbor generator
  We use the marine synchronouse Alternator with the brands of Stamford , Maraphon and Simens marine Alternator etc. Also can be supplied at the request of customers.
  Parallel connection: Two and more normal marine generating sets can transfer loading without stoping , and can realize parallel.
  Protection function :Thare are over-limit alarming for speed , oil pressure, cooling water temperature and oil temperature.
  Can provide CCS, BV , ABS,GL,RS, DNV classification certificate.

We are the top VIP supplier on Alibaba ,

authorized by famous certification authority-BV ( Bureau Veritas ).

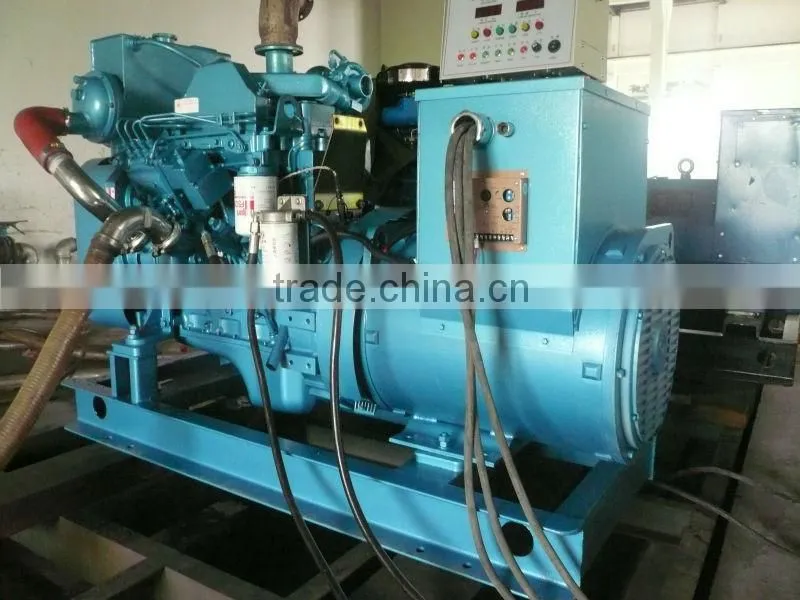

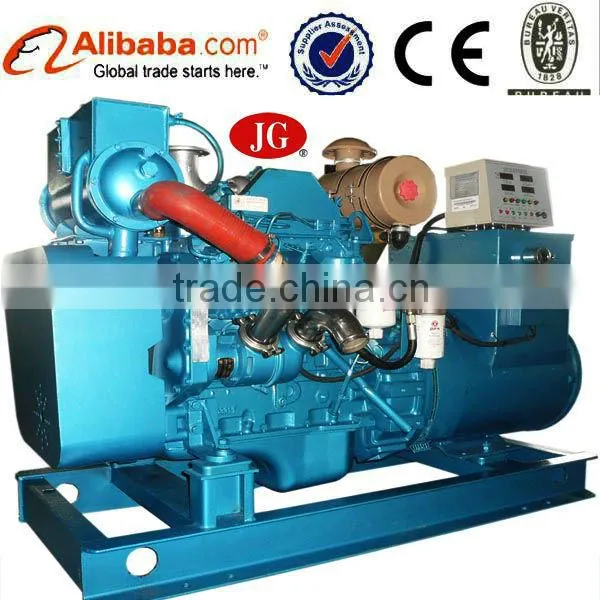

CE approved 60hz 3 phase 4BT3.9-G2 40kva generator

2. Diesel Generator Technical Data

Technical data
Genset Model	30GF
Genset Output Power	30KW
Rated Voltage	380/220V
Frequency	50Hz
Power Factor(COS)	0.8(lagging)
Noise level (at rated load) dB(A)/7m	68
Dimension(Silent type) (L×W×H) (mm)	2200×940×1460
Net weight(Silent type) (kg)	1290
Diesel Engine
Brand	DCEC Cummins
Model	4BT3.9-G2
Engine Structure	In line 4 cylinder, 4 stroke, turbocharged
Rotating Speed	1500r/min
Engine Cooling Method	Radiator for ambient temp 40OC, belt driven cooling fan with cover
Governor System	Precise electrical governor system
Starting Method	24V DC, with Silicon commutating charging motor
Engine Filter System	Dry type air filter, fuel filter, oil filter
Displacement(L)	3.9
Compression Ratio	16.51
Bore×Stroke(mm)	102×120
100% load fuel consumption (L/h)	9.3
Lube capacity(L)	11
Alternator
Brand	Kaijieli(China-French joint venture Leory Somer technology)
Model	TWG2C
Excite Type	Brushless ,Self-exciting, AVR automatic voltage regulating
Connecting Type	3 Phase and 4 Wires
Steady Frequency Change	0∼5%
No load voltage	≥95%∼105%
Steady voltage	≤±1%
Insulation degree	H degree
Enclosure degree	IP21
The components of the genset
(1) Diesel engine; (2)Generator; (3)Generator; (4)Control panel(With 320B Controller); (5)Silent box
The Accessories
Wave pipe , curved pipe , muffler , accumulator and the connecting lines , shock-absorbing spacer , and data .
Control panel
The control panel is Ordinary integrative type control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The diesel engine with battery volt lowhigh water temperaturelow oil pressureover/under speed protection function.
