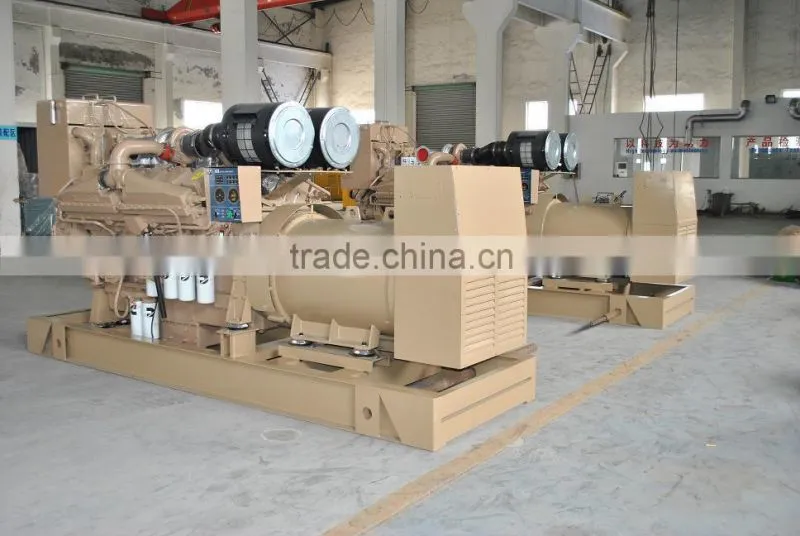

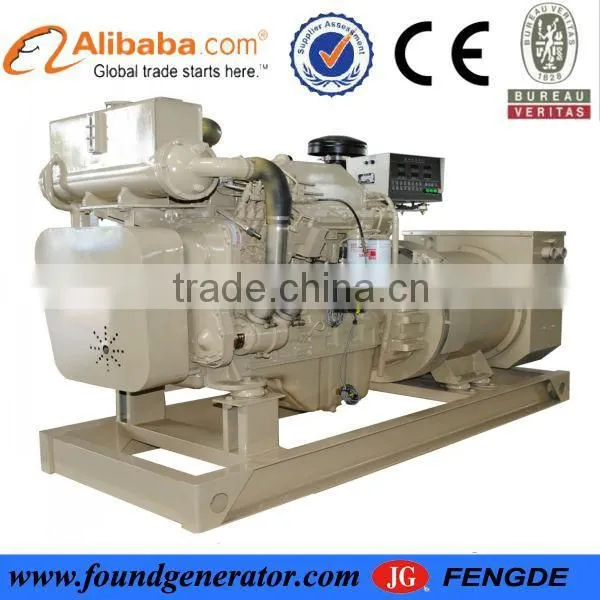

300KW 50HZ 6-cylinders Types of Electric Power Generator

Name: 300KW 50HZ 6-cylinders Types of Electric Power Generator
Brand: JG electric power generator
SKU: 103722317

US$ 43,800 - 45,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

JG electric power generator

Model Number:

CCFJ300JY

Taizhou Fengde Mechanical & Electrical Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name JG electric power generator

Model Number CCFJ300JY

Output Type AC Three Phase

Speed 1500RPM

Frequency 50HZ

Rated Power 300KW

Rated Voltage 230/400V

Rated Current 540A

Specifications

300kw types of electric power generator
1/ CE certificate
2/ ISO9001:2000 certificate
3/ one year warranty
4/ OEM manufactor

300kw types of electric power generator General feature:

1.Coupled with Cummins diesel engine and Marathon

alternator

2.24V DC start motor

3.Brushless, Self-excited, IP23, insulation class H alternator

4.All qualified generator sets are subjected to a comprehensive performance test which includes 50% load,

75% load, 100% load, 110% load and to check, verify that all control systems, alarm and shut-down protection.

5.Stability, reliability and easy-service

6.Low operating and maintenance cost

7.Widely used, location to meet customer needs

8.Easy-installation, easy-operation and maintenance

300kw types of electric power generator Main Parameter:

1.Main technical data of Electric Power Generator
1.1	Model	CCFJ300JW
1.2	Prime power	300KW
1.3	Prime voltage	230/400V
1.4	Speed	1500 rpm
1.5	Weight	3750kg
1.6	Overall dimension	3100×950×2080mm (just for reference)
2.Main technical data of engine
Cummins engine, 4 stroke. DC start. Come with sea water pump, heater exchanger and expansion water tank, open-cycle cooling.
2.1	Brand	CUMMINS
2.2	Model	KTA19-DM
2.3	Prime power	336KW
2.4	Governor type	Electronic
2.5	Configuration	4 cycle , 6 cylinder in line
2.6	Cooling method	By heater exchanger
2.7	Bore/Stroke	159×159 mm
2.8	Displacement	18.9L
2.9	Starting method	Electric
2.10	Fuel consumption	209g/kw.h
3. Main technical data of alternator
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation.
3.1	Brand	MARATHON
3.2	Model	MP-H-300-4
3.3	Prime power	300KW
3.4	Configuration	Brushless , self-exciting
3.5	Prime voltage	230V/400V
3.6	Frequency	50 HZ
3.7	Power factor	0.8(lagging)
3.8	Phase/wire	3 phase 4 wires
3.9	Isolation	H
