Home > Products > C marine generator > China Supplier 1000 Kva Generator,generators 1000 Kva

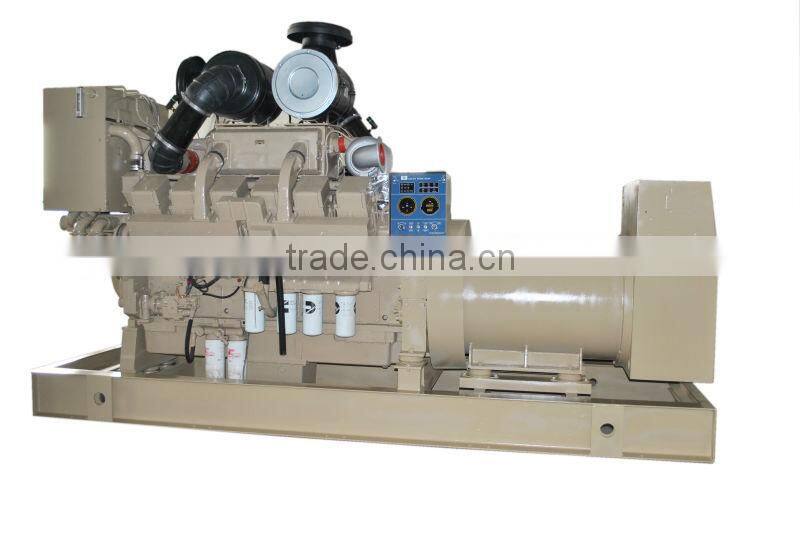

China Supplier 1000 Kva Generator,generators 1000 Kva
- Shanghai
- T/T L/C Credit Card
You May Like
-
China Supplier Electric Generator, Electric Motor Generators
-
RS,BV,CCS Approved 400kva Generator,electric Generator 400kva Price
-
BV,CCS Approved 40-900kw Digital Diesel Generator
-
CE Approved 50hz 3 Phase Heat Exchanger Cooled 75kva Generator Set
-
CE Approved Electric Diesel Generator,75kva Generator
-
CE Approved Electric Power 75kva Generator for Sale
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JG | |
| Model Number | JGC800GF | Output Type | AC Three Phase | |
| Speed | 1500rpm | Frequency | 50hz | |
| Rated Power | 800kw | Rated Voltage | 400v | |
| Rated Current | 1440A |
Product Description
Specifications
1.generators 1000 kva2.ISO,CE,BV,CCS certificate
3.global service for 12 month
4.one year warranty
1.1000kva generator general technical data:
1) soon delivery time
2) reliable performance
3) gloabl support for 12 moths
We are the top VIP supplier on Alibaba ,
authorized by famous certification authority-BV ( Bureau Veritas ).
2. Cummins Engine Technical Data:
Engine Model | KTA38-G2A |
Configuration | 4 cycle , 12 cylinders in "V" |
Aspiration | Turbocharged after water-cooled |
Bore×Stroke | 159 x159 mm |
Rated speed | 1500rpm |
Displacement | 38.0L |
Compression Ratio | 14.5:1 |
Prime Power | 813KW |
Standby Power | 895KW |
Speed Governor | electrical |
Cooling System | Water-cooled , 40°C Radiator As Standard, 50°C Is Optional. |
Speed Stability (%) | ≤5% |
Fuel Consumption at 100% Load | 196g/kw.h |
3.Marathon alternator Technical Data:
Alternator model | MX-850-4 |
Alternator manufacturer | Marathon |
Exciter type | Single bearing, Brushless, Self-excited |
Rated output prime power | 800 kW |
Rated speed | 1500 RPM |
Rated frequency | 50 Hz |
Phase | 3 |
Rated voltage | 400 V(Available with customer requirements) |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation grade | H |
Protection grade | IP23 |
4.Warranty:
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
5.Certificate & Document:
1) Alternator operation and maintenance manual 1PC
2)Engine operation and maintenance manual 1PC
3)Generator Overall drawings of the set 1PC
4)Electrinic system drawing 1PC
5)Bench test 1PC
6)Packing list 1PC
6.picture:
