Specifications

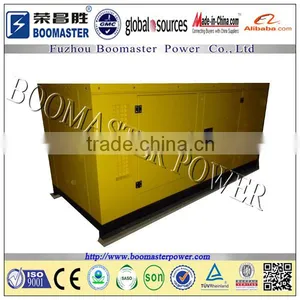

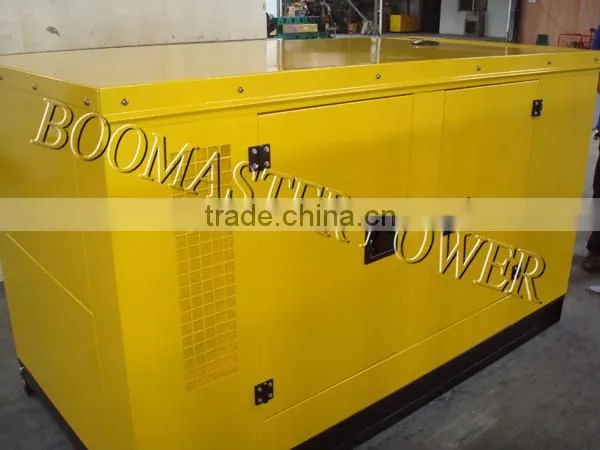

Generators for home with prices deutz engine 45kva,Hot sale!!!1.Duetz engine
2.Stamford alternator
Generators for home with prices deutz engine 45kva,Hot sale!!!
Genset specification
Genset model |
BD-45 |
Prime power(kw/kva) |
36/45 |
Standby power(kw/kva) |
40/49 |
Engine model |
TD226B-3D Deutz |
Alternator model |
STG224C |
dimension(L*W*H)mm |
1900*900*1550 |
Weight(kgs) |
850 |
Engine details
Engine |
TD226B-3D |
12h Rate output(kw) |
45 |
Aspiration & Cooling |
Turbo |
Cylinders Capacity(Lt) |
3 |
In Line | |
Engine Speed(RPM) |
1500 |
Bore & Stroke(mm*mm) |
105*120 |
Compression Ratio |
16.4 |
Governor |
M/E |
Fuel consumption(g/kwh) |
208 |
Lub-oil Capacity(Litre) |
7.75 |
Coolant Capacity(Litre) |
17 |
Air Combustion(m3/min) |
3 |
Exhaust Air Flow(m3/min) |
158 |
Alternator details
Model |
STG224C |
Rater power |
34kw |
Exciting Style |
Brushless,self-exciting,self-radiating |
Voltage-Regulating System |
AVR automatic regulation |
Insulation class |
H |
Protection grade |
IP22 |
Regulating rate of steady voltage |
±0.5% |
Regulating rate of transient frequency |
±0.5% |
Regulating rate of transient frequency |
≤3S |
Products photo:
Factory:
Exhibition:
Cetificate:
