Made in China Diesel Generator by Deutz Engines
US$ 8,999 - 9,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Deutz
Model Number:
BD-100
Payment & Shipping
Payment Methods:
Port of Shipment:
FuZhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Industry Deutz Diesel Generator for SaleUS$ 6,999 - 7,999MOQ: 1 Set -
Soundproof Yuchai Diesel Generator Chinese Supplier 25kva 30kva 50kva 75kva 100kva 160kva 200kva 250kvaUS$ 3,999 - 19,999MOQ: 1 Set
-
FuZhou Quanchai Diesel Generator With Hot SaleUS$ 6,999 - 7,999MOQ: 1 Set
-
Electric Mini Portable Diesel Generator Chinese SupplierUS$ 400 - 900MOQ: 1 Set
-
Generators for Home With Prices Deutz Engine 45kva,Hot Sale!!!US$ 5,999 - 6,999MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
Deutz
Model Number
BD-100
Output Type
AC Three Phase
Speed
1500/1800rpm
Frequency
50/60Hz
Rated Power
80KW
Rated Voltage
230v/400v
Rated Current
144A
Specifications
Made in china diesel generator by Deutz engines1.Duetz engine
2.Stamford alternator
Made in china diesel generator by Deutz engines
| 80kw/100kva Deutz diesel generator | |
| Genset Specification | |
| Genset Model | BC-100 |
| Prime Power(Kw/Kva) | 80/100 |
| Standby power(kw/kva) | 88/110 |
| Frequency | 50Hz |
| Structure type | Open or Soudproof |
| Dba"@7m | silent genset 55-78 dba @ 7m , open type75-98 dba @7m |
| Engine Model | F3L912 |
| Alternator Model | STG184G |
| Open type DimensionL*W*H(mm) | 1460*680*800 |
| Weight(Kg) | 650 |
| Silent type DimensionL*W*H(mm) | 1660*680*1000 |
| Weight(Kg) | 750 |
| Engine Detail | |
| Engine brand | Deutz |
| Engine Model | F3L912 |
| In-line, 3Cylinder, 4 Cycle Diesel Engine | |
| Bore×Stroke | 100mm×120mm |
| Displacement | 2.827 Liters |
| Compression Ration | 0.709027778 |
| Cooling Way | Air cooled |
| Combustion system | Direct injection |
| Inspiration | Natural intake |
| Direction of rotation | Counterclockwise(face To flywheel end) |
| Fuel consumption ratio | 240.7g/kwh(limit value) |
| Oil consumption ratio | 2.04g/kwh(limit value) |
| Lubricant Capacity | 8Liters |
| Net Weight | 330kg |
| Overall Dimension(L×W×H) | 722mm×664mm×814mm |
| Alternator Detail | |
| Model | STG184G |
| Output power(Kw/Kva) | 80/100 |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Number of Pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | 0.50% |
| Total haarmonics (TGH/THC) | 4% |
| Wave form:Nema=TIF | 50 |
| Wave form:I.E.C=THF | 2% |
| Bearing | single |
| Coupling | Direct |

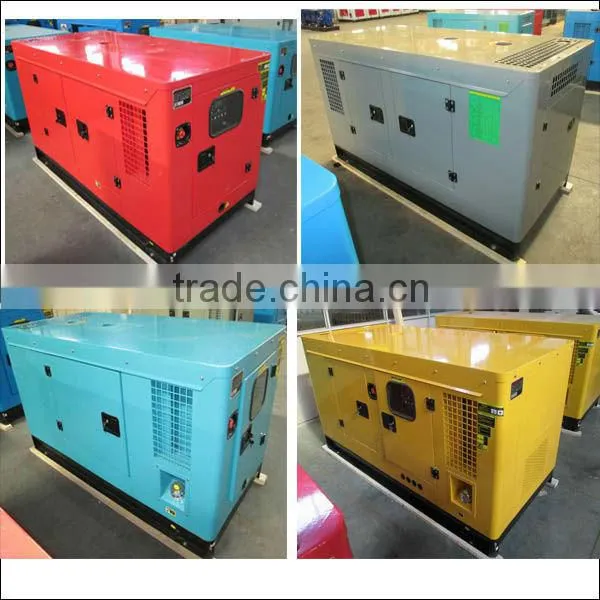

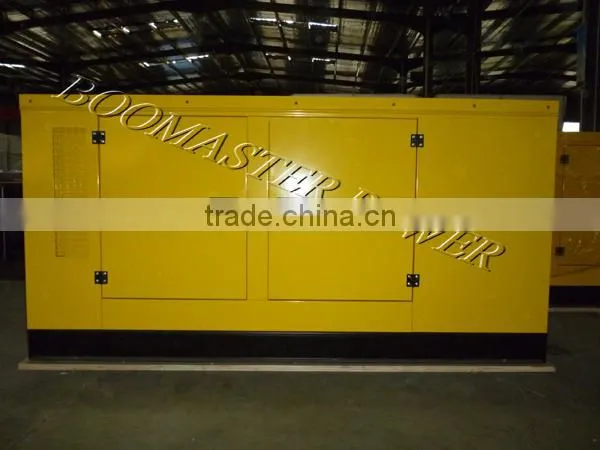

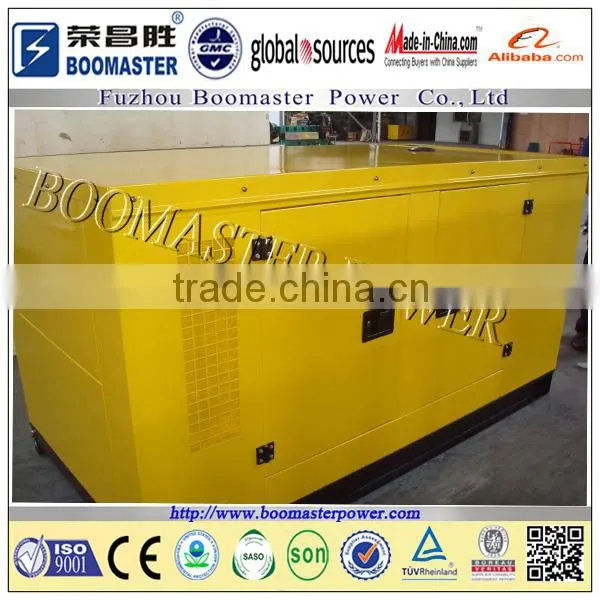

Products photo:
Factory:
Exhibition:
Cetificate:
