Specifications
1. silent Type2. three-phase
3. Power:10kw
4.low niose
5.one year warranty
10kw yanmar generator with CE&ISO9000 approved
Generator Supply Scope:
Ø .Standrad tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator
Ø .brand-new engine, w/ start motor.
Ø .brand new brushless alternator, single bearing, flange connection, IP23, H insulation class, with AVR.
Ø .auto control panel, with LCD display.
Ø .Engine mounted battery-charging alternator, Genset with battery charger of mains supply.
Ø .Circuit Breaker,Exhaust Silencer
Ø .Copper Radiator for 50°C ambient temperature and bouble-deck cooling,with fan guard and front guard
Ø .Antivibration pads are fixed between engine/alternator and base frame,as to ensure the compete genset running under stablilization.
Ø .Skid-mounted bottom Fuel tank - 8hrs continous running(bigger fuel tank by your demand under extra cost)
Ø .External recessed emergency stop button for extra safety
Ø .The colors & Brands by your requests
Ø .Optional Choice:Soundproof, ATS (automatic transfer switch), AMF panel, Trailer, Parallel system by your extra choose.
Diesel Engine Specifications
Engine Model | 3TNV88-GGE |
Engine manufacturer | Yanmar |
Number of Cylinders | 3 |
Cylinder arrangement | Vertical in line |
Cycle | 4-cycle |
Intake system | Turbocharged |
Bore x Stroke (mm x mm) | 70 x 74 |
Displacement (L) | 0.57 |
19. | |
Prime Power/Speed (KW / rpm) | 12/ 1500 |
Standby Power/Speed (KW / rpm) | 13 / 1500 |
Speed Governor | Mechanical |
Cooling System | Water-cooled, 40°C Radiator as Standard, 50°C Is Optional |
Speed Stability (%) | ≤5% |
Lubrication system capacity (L) | 6.7 |
Coolant capacity (L) | 2 |
Fuel Consumption at 100% Load (g/kWh) | 245 (at 1500RPM) |
Starter Motor | DC12V |
Alternator | AC12V |
Alternator Specifications
Brand | Original Stamford |
Model | PI 044F |
Prime Power | 10kw/12kva |
Rated Current (A) | 11 |
Rated Voltage | 220V / 380V |
Frequency | 50HZ @ 1500rpm |
Power Factor(COS) | 0.8 |
Phase | 3-phase 4-wire |
Excitation | Brushless, Self-excited, Automatic voltage regulation. Insulation Class: H . Protection Grade : IP23. |
Voltage Regulation | AVR |
The regulating rate of steady voltage | ≤1% |
The regulating rate of instantaneous voltage: | -15%~ +20% |
The time of steady voltage: | ≤1.5sec |
The waving rate of voltage: | ≤1.0% |
The regulating rate of steady frequency: | ≤3% |
The regulating rate of instantaneous frequency: | ≤±10% |
The time of steady frequency: | 3sec |
The waving rate of frequency: | ≤1% |
Generator set warranty and maintenance:
Ø Do the full power load test for five hours before package.
Ø One year or 1000 working hours, whichever comes first, global warranty for Cummins. Deutz, UK P, Volvo, Daewoo.
Ø After expiration, we provide spare parts maintenance with low price.
Other pictures:

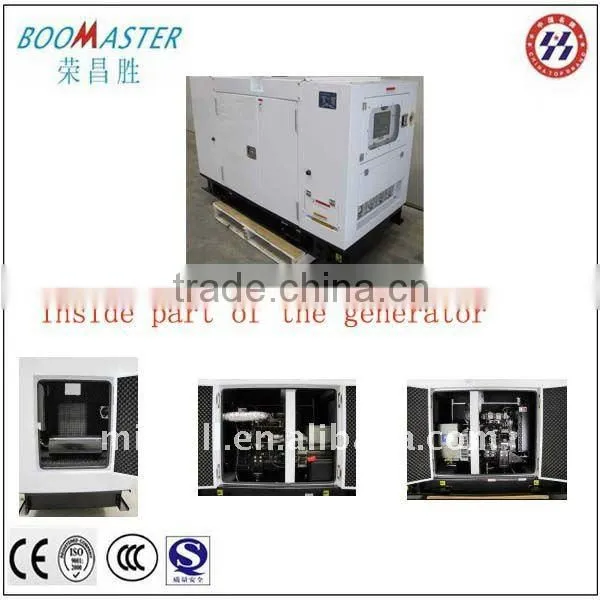

Silent diesel generator
Our factory
Certification
