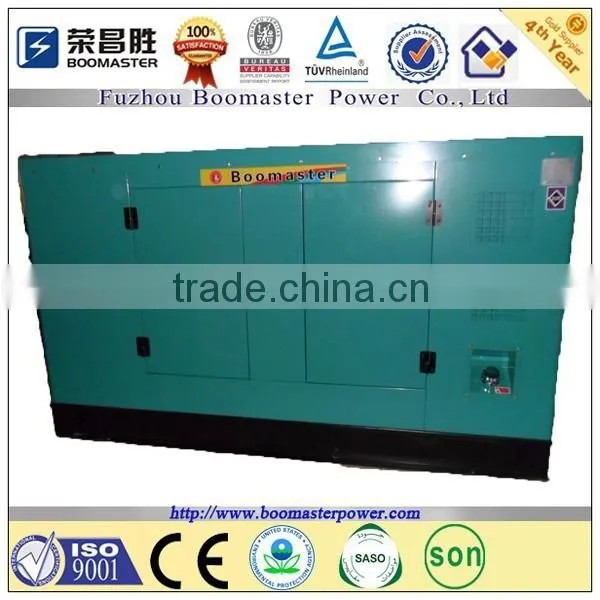

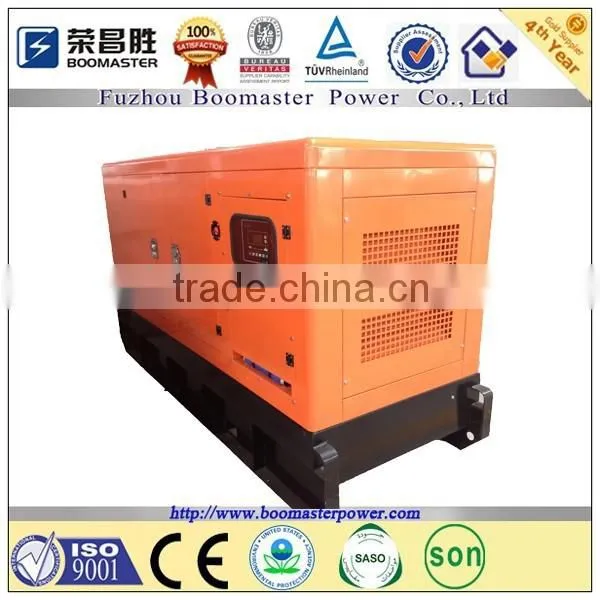

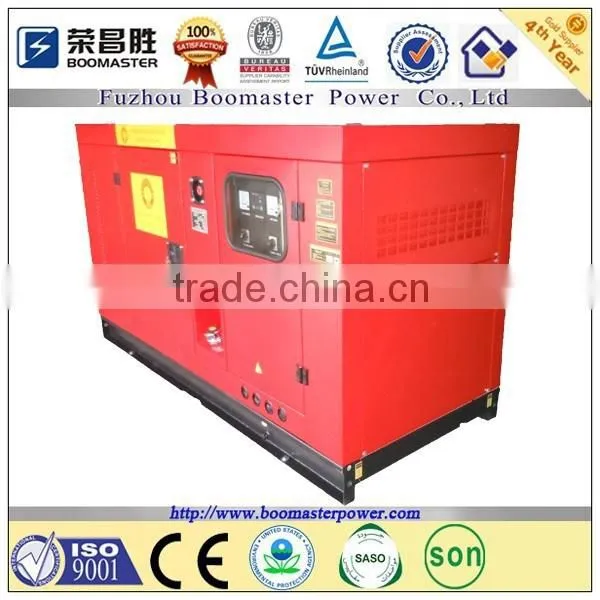

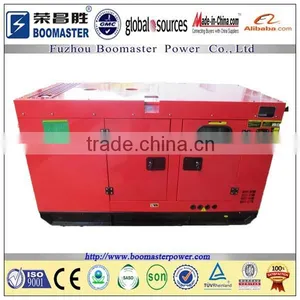

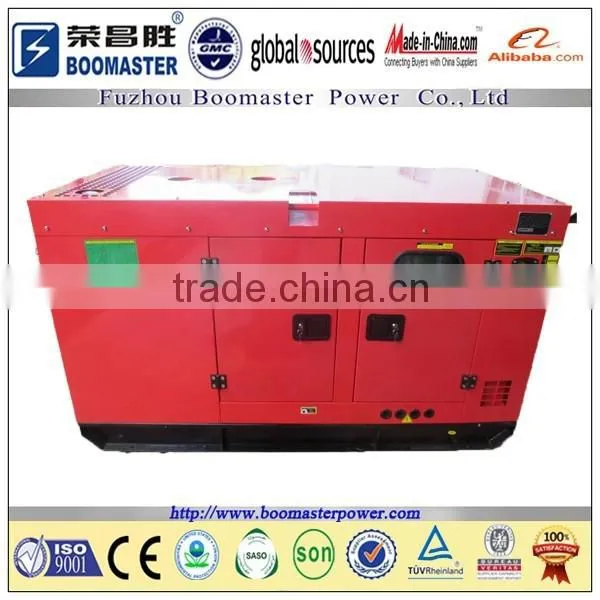

Help Center20 kw Diesel Generator,silent Generator Set 20 kw
Related Products
-
50HZ Three Phase Open/silent Cummins Engine Diesel Generator SetUS$ 4,500 - 250,000MOQ: 1 Set -
Use in Generate Electricity Cummins Engine Diesel Generator With Hot SaleUS$ 2,999 - 19,999MOQ: 1 Set
-
4B3.9-G2 Power by Cummins Engine Diesel Generator Price List With 28 KvaUS$ 5,999 - 6,999MOQ: 1 Set
-
6CTA8.3-G2 Power by 175kva Slient Water-cooled Cummins Engine Diesel Generator Price ListUS$ 19,999 - 29,999MOQ: 1 Set
-
4BT3.9-G2 38kva Cummins Engine Slient Diesel Generator in StockUS$ 5,999 - 6,999MOQ: 1 Set
Genset model |
BK-25 |
Prime power |
20kw/25kva |
Standby power |
22kw/27.5kva |
Engine model |
495D |
Alternator model |
184F |
dimension(L*W*H)mm |
1800*930*1100 |
Weight(kgs) |
900 |

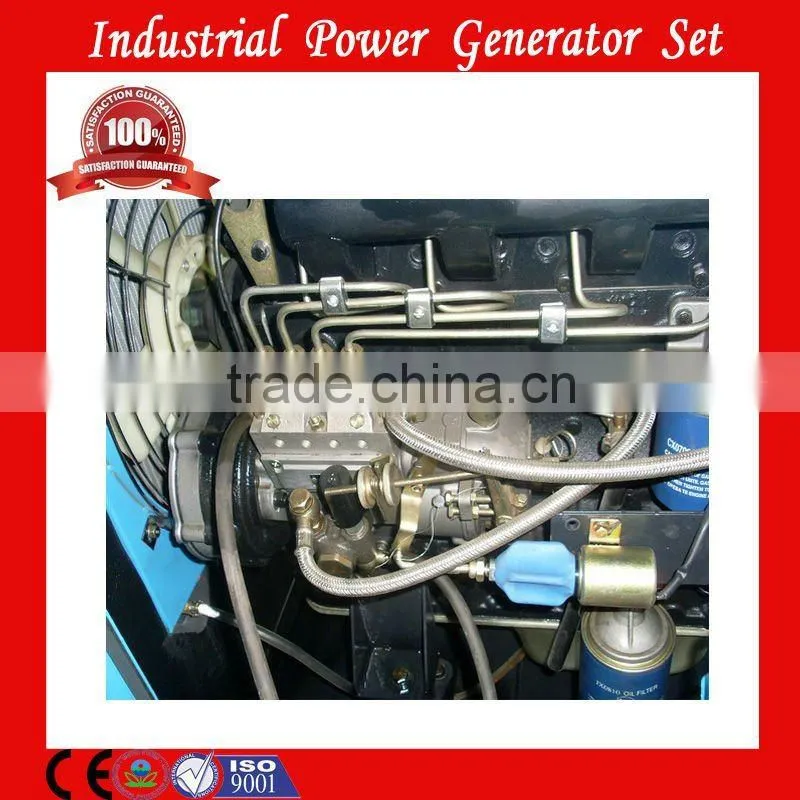

Engine details
Diesel engine model |
495D |
Type |
water-cooled, inline, 4-storkes, swirl combusion chamber |
Constant Output (kW/kVA) |
26.5/33 |
Speed (r/min) |
1500 |
Cylinder No.-Bore*Stroke(mm) |
4-95-115 |
Total Displacement of Piston(L) |
3.26 |
Pressure Ratio |
19 |
Air Intake Type |
Natural |
Fuel Consumption(g/kw/.h) |
243.3 |
Oil Consumption(g/kw.h) |
2.04 |
Exhaust Temperature(°C) |
470 |
Crankshaft Ratating |
Inverse Hour (Facing the power output end) |
Cooling Type |
Forced Water Cooling |
Lubricating Type |
Compound type with pressure and splash |
Starting Type |
Electric Start |
Alternator details
Model |
STG184F |
Rater power |
22kw |
Exciting Style |
Brushless,self-exciting,self-radiating |
Voltage-Regulating System |
AVR automatic regulation |
Insulation class |
H |
Protection grade |
IP22 |
Regulating rate of steady voltage |
±0.5% |
Regulating rate of transient frequency |
±0.5% |
Regulating rate of transient frequency |
≤3S |
MOQ |
1 set |
Delivery Clause |
FOB Fuzhou |
Delievery time |
15 to 20 days after the order is confirmed |
Terms of payment |
T/T, L/C at sight |
.Leading Professional manufacturer of power generator
.Certification:CE EPA ISO IEC
.Fast delivery:we will do our best to meet your requirement when you need it.
.Fast delivery:we will do our best to meet your requirement when you need it.
.Excellent sales and service team.Should you have any problem,feel free to contact with us.We will do
.OEM is warmly welcomed
