Specifications
coal fired chain grate boiler1, Efficiency
2, Full automatic operation
3,Suitable for different fuel
4,Safe and reliable

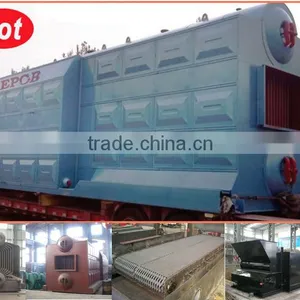

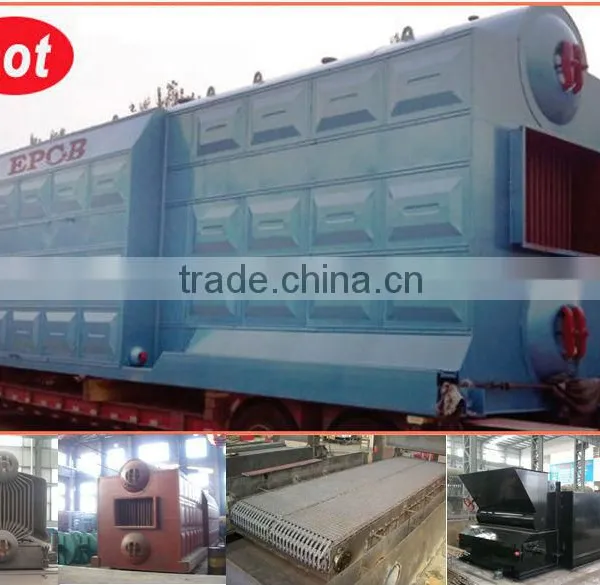

chain grate stoker boiler,coal fired chain grate boiler
1.Boiler design structure |
1, The usage of high-performance heat transfer components - threaded pipe, with a reasonable gas flow rate, the boiler thermal efficiency is higher 6-8 percentage points than the state high professional standards. |
2. Boiler advantage: |
1.Safety: with water level, leakage steam, steam pressure control. Make sure boiler working safety. |
2.Product quality ensured by:Strength calculation report , hydraulic test, X-ray, non-destructive test. |
3.Efficient: well insulation and excellent structure. |
4. Spirally conrrugated tube increase the strength and also meets the needs of heat expansion of each parts. |
3. Our Main Product scope: |
1.WNS series Horizontal oil/gas fired boilers (0.5-30T/H, 0.7-14MW) |
2. SZS serires Horizontal Oil/gas fired boiler (4- 35T/H ) |
3. LHS series Vertical Oil/gas fired boiler (0.1-2 T/H, 0.06-0.7MW ) |
4. DZL new type water fire tube boilers (1-35T/H, 0.7-29MW) |
5. SZL series water tube biomass boilers (4-35T/H, 1.4-29MW) |
6. SHX boiler boiler ( 10--35 T/H) |
7. CFB Circulating Fluidized Bed boiler ( 35T--130 T ) |
4.Boiler technical data:
ItemType |
SZL2.8-0.7/95/70-A Ⅱ |
SZL4.2-1.0/115/70-A Ⅱ |
SZL5.6-1.0/115/70-A Ⅱ |
SZL7.0-1.0/115/70-A Ⅱ |
SZL10.5-1.25/115/70-A Ⅱ |
SZL14-1.25/130/70-A Ⅱ |
|
Rated capacity MW |
2.8 |
4.2 |
5.6 |
7 |
10.5 |
14 |
|
Rated working pressure Mpa |
0.7 |
1.0 |
1.0 |
1.0 |
1.25 |
1.25 |
|
Supply water temperature °C |
95 |
115 |
115 |
115 |
115 |
130 |
|
Return water temperature °C |
70 |
70 |
70 |
70 |
70 |
70 |
|
Circle flow m3/h |
96 |
80 |
106 |
133 |
200 |
200 |
|
Heated area M2 |
radiation/convection |
15.6/112 |
21.6/132 |
25.2/171.5 |
29.5/204.1 |
37.21/284.68 |
58.4/307.4 |
Heat efficiency % |
81 |
78 |
78 |
79 |
79 |
79 |
|
Fuel consumption kg/h |
658 |
1033 |
1367 |
1688 |
2530 |
3375 |
|
Effective area of grate m2 |
6.4 |
7.8 |
10.04 |
11.8 |
17.81 |
22.56 |
|
Transportation size of boiler mm |
length |
7070 |
7860 |
6900 |
7900 |
9300 |
11500 |
width |
2750 |
2960 |
3100 |
3100 |
3300 |
3300 |
|
height |
3542 |
3524 |
3525 |
3525 |
3500 |
3540 |
|
transportation weight of boiler ton |
31 |
33.5 |
29 |
39 |
43 |
54 |
|
Notes:This form only for your reference,if any changed,please refer to Ex-factory technical documents. | |||||||
5. Company Introduction |
Spirit: Supply Reliable & high efficient heating system. |
|
1, More than 600 sets of boilers (5000 t/h) can be produced by us per year. Class A boiler manufacturer. Class A1, A2 pressure vessel manufacturer. 2, Each boiler system parts is from first class brand all over the world or China. 3, Strict quality control system. From the material, welding, to finished boiler shipment. From project establishment, drawing design, to final audit. 4, We are the stable and long term supplier of many Top 500 Groups all over the world. Such as PetroChina, Sinopec, Nestle, Mercedes-Benz, Coca cola, etc,. |
ntact information: |
|
If any needs ,pls feel free to contact with me Qingdao East Power Industry Equipment Co., Ltd |
Skype:epcbsale18 |
Tel: 0086-532-66717007 |
Fax: 0086-532-66717006 |
Mobile:0086-133-45000699 |
Web: |
Add: Hi-technology Industrial Park, Qingdao, Shandong, China |
7.Pictures:
boiler product process
boiler factory scence
certificaition
customer visiting
foreign exhibition

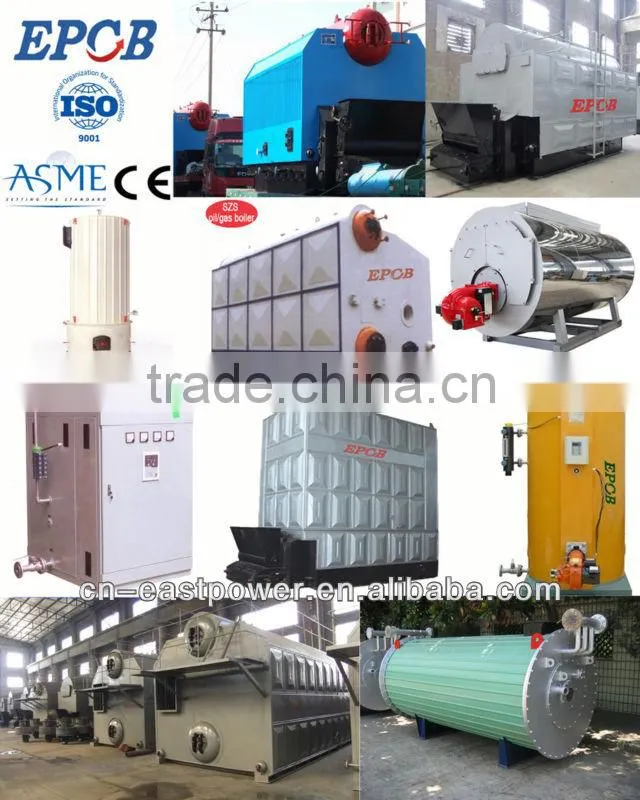

our main boiler
