Specifications
biomass boiler1, Low cost, high quality
2, Larger heating area, energy-saving
3.A class manufacturer
2013 the best selling products _ biomass stove 2013 the best selling products _ biomass stove 2013 the best selling products _ biomass stove
1.horizontal wood boiler characteristics |
1, The usage of high-performance heat transfer components - threaded pipe, with a reasonable gas flow rate, the boiler thermal efficiency is higher 6-8 percentage points than the state high professional standards. |
2. Boiler advantage: |
1.Safety: with water level, leakage steam, steam pressure control. Make sure boiler working safety. |
2.Product quality ensured by:Strength calculation report , hydraulic test, X-ray, non-destructive test. |
3.Efficient: well insulation and excellent structure. |
4. Spirally conrrugated tube increase the strength and also meets the needs of heat expansion of each parts. |
3.Boiler technical data:
2013 the best selling products _ biomass stove | |||||
ItemType |
DZL2-1.0-M DZL2-1.25-M |
DZL4-1.25-M |
DZL6-1.25-M |
DZL8-1.25-M |
|
Rated capacity t/h |
2 |
4 |
6 |
8 |
|
Rated steam pressure Mpa |
1.0/1.25 |
1.25 |
1.25 |
1.25 |
|
Rated steam temperature°C |
184/194 |
194 |
194 |
194 |
|
Feed water temperature°C |
20 |
20 |
20 |
60 |
|
Heat efficiency % |
80 |
81 |
83 |
85 |
|
Fuel consumption kg/h |
358 |
707 |
1036 |
1382 |
|
largest size of boiler transportation mm |
length |
5290 |
6258 |
6630 |
7486 |
width |
2240 |
2700 |
3150 |
3200 |
|
height |
3400 |
3814 |
4186 |
3650 |
|
weight of largest parts of boiler ton |
20.8/21.9 |
29 |
32 |
35 |
|
If you need parameter, please feel free to let me know. | |||||
4. Our Main Product scope: |
1.WNS series Horizontal oil/gas fired boilers (0.5-30T/H, 0.7-14MW) |
2. SZS serires Horizontal Oil/gas fired boiler (4- 35T/H ) |
3. LHS series Vertical Oil/gas fired boiler (0.1-2 T/H, 0.06-0.7MW ) |
4. DZL new type water fire tube boilers (1-35T/H, 0.7-29MW) |
5. SZL series water tube biomass boilers (4-35T/H, 1.4-29MW) |
6. SHX boiler boiler ( 10--35 T/H) |
7. CFB Circulating Fluidized Bed boiler ( 35T--130 T ) |
5. Company Introduction |
Spirit: Supply Reliable & high efficient heating system. |
|
1, More than 600 sets of boilers (5000 t/h) can be produced by us per year. Class A boiler manufacturer. Class A1, A2 pressure vessel manufacturer. 2, Each boiler system parts is from first class brand all over the world or China. 3, Strict quality control system. From the material, welding, to finished boiler shipment. From project establishment, drawing design, to final audit. 4, We are the stable and long term supplier of many Top 500 Groups all over the world. Such as PetroChina, Sinopec, Nestle, Mercedes-Benz, Coca cola, etc,. |
ntact information: |
|
If any needs ,pls feel free to contact with me Qingdao East Power Industry Equipment Co., Ltd |
Skype:epcbsale18 |
Tel: 0086-532-66717007 |
Fax: 0086-532-66717006 |
Mobile:0086-133-45000699 |
Web: |
Add: Hi-technology Industrial Park, Qingdao, Shandong, China |
Why do you choose us? --Our Competitive Advantage |
1. A class boiler manufacturer. |
2. Standards :ASME, GB,ISO9001, CE, AS, GOST. |
3. Boiler running life > 20 years. |
4,100%safety, running stably, excellent water level and pressure control, fully automatic operation. |
5. Provide the best quality accessories for boiler safe and long running. |
6,Good after-sale service. It is free for you to get the damaged spares in warranty period(1 year) if there is any questions. Assure that we can supply you spares in boiler’s all life. |
7,We can arrange engineer to your company for installation and commissioning and training. If you need us at any time, we can send our technicians and prepare in a short time. |
8, Special paint is used after assembly. Paint is particularly used in your climate area, which is anti-corrosion, anti-abrasion and color-fastness. |
7. Pictures:
Certification

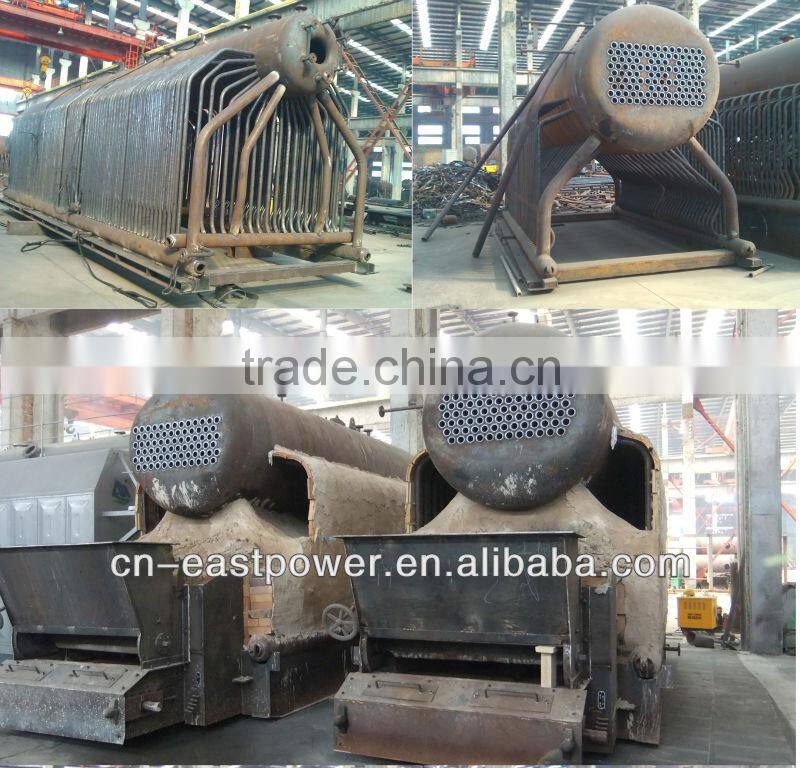

Boiler detailed picture
boiler factory scene
customer visiting
foreign exhibition
our main boiler
