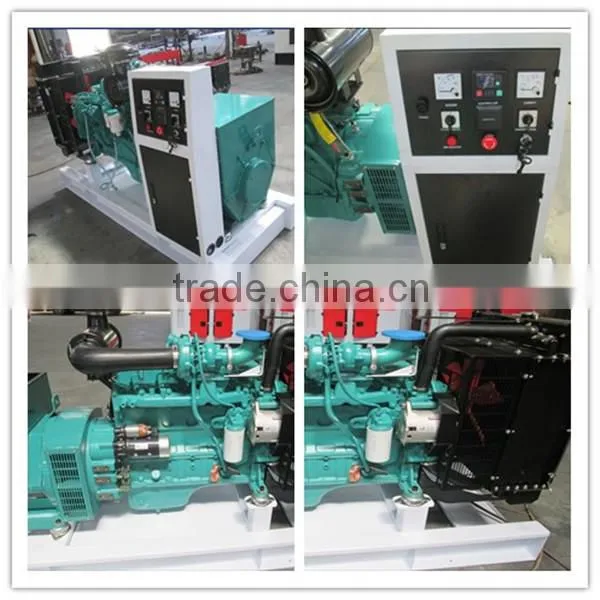

28kva open cummins engine generator electric set
| Product Overview | |
| 1) Brand-Cummins power by | |
| 2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR. | |
| 3) Auto control panel with LCD display. | |
| 4) Engine mounted battery-charging alternator,Genset with battery charge of main supply. | |
| 5) Circuit Breaker,Exhaust Silencer. | |
| 6) Copper Radiator for 40°C ambient temperature and double-deck cooling,with fan guard and front guard. | |
| 7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable. | |
| 8) Skid-mounted bottom 8 hours fuel tank. | |
| 9) Extemal recessed emergency stop button for extra safety. | |
| 10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system. | |
| 28kva Cummins engine diesel generator | |
| Genset Specification | |
| Genset Model | BC-28 |
| Prime Power(Kw/Kva) | 22/27.5 |
| Frequency | 60Hz |
| Structure type | Open or Soudproof |
| Dba"@7m | silent genset 55-78 dba @ 7m , open type75-98 dba @7m |
| Engine Model | 4B3.9-G1 |
| Alternator Model | STG184E |
| Open type DimensionL*W*H(mm) | 1460*680*800 |
| Weight(Kg) | 650 |
| Silent type DimensionL*W*H(mm) | 1660*680*1000 |
| Weight(Kg) | 750 |
Generator soundproof/Silent and canopy box:
Ø 8 hours’ base fuel tank
Ø Excellent ventilation
Ø Black finish stainless steel locks and hinges
Ø Zinc plated or stainless steel fasteners
Ø Body made from steel components treated with polyester powder coating
ØTwo large doors on either side
Ø Radiator fill access plate
Ø Fully guarded cooling fan and battery charging alternator
Ø Fuel fill and battery access via lockable access doors
Ø Emergency stop button on canopy exterior
Ø Lube oil drain and radiator drain to exterior
Ø Control panel viewing window
Ø Lifting points on base frame
Ø 1m<80DBA / 7m<70DBA
Generator set warranty and maintenance:
ØDo the full power load test for five hours before package.
ØOne year,whichever comes first, global warranty for Cummins.
ØAfter expiration, we provide spare parts maintenance with low price
open Cummins engine Generator
