Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > China Silent Diesel Generator Set
China Silent Diesel Generator Set
US$ 1,999 - 5,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Weichai
Model Number:
BQ-30S
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Denyo 20 KVA GeneratorUS$ 2,500 - 2,900MOQ: 1 Set -
AC Single Phase Output Type Electric Start for GeneratorUS$ 2,500 - 2,900MOQ: 1 Set
-
AC Three Phase Output Type Super Silent Diesel Generator 20kvaUS$ 2,500 - 2,900MOQ: 1 Set
-
AC Three Phase Output Type 10kva GeneratorUS$ 2,000 - 2,500MOQ: 1 Set
-
20kv Generator SetUS$ 2,500 - 2,900MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
Weichai
Model Number
BQ-30S
Output Type
AC Three Phase
Speed
1500rpm, 1500rpm or 1800rpm
Frequency
50Hz
Rated Power
24KW/30KVA
Rated Voltage
230/400V
Rated Current
43.30A
Specifications
china silent diesel generator set1.power: 20-150kw
2.MOQ: 1 Set
3.Guarantee/Warranty:12month
China Supplier Silent Weichai Diesel Generator Set
| Product Overview | |
| 1) Brand-new engine,w/start motor. | |
| 2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR. | |
| 3) Auto control panel with LCD display. | |
| 4) Engine mounted battery-charging alternator,Genset with battery charge of main supply. | |
| 5) Circuit Breaker,Exhaust Silencer. | |
| 6) Copper Radiator for 40°C ambient temperature and double-deck cooling,with fan guard and front guard. | |
| 7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable. | |
| 8) Skid-mounted bottom 8 hours fuel tank. | |
| 9) Extemal recessed emergency stop button for extra safety. | |
| 10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system. | |
| Genset Specification | |
| Genset Model | BQ-30 |
| Prime Power(Kw/Kva) | 2430 |
| Frequency | 50Hz |
| Structure type | Open or Soudproof |
| Dba"@7m | silent genset 55-78 dba @ 7m , open type75-98 dba @7m |
| Engine Model | 4102D |
| Alternator Model | STG184G |
| Open type DimensionL*W*H(mm) | 1900x700x900 |
| Weight(Kg) | 520 |
| Silent type DimensionL*W*H(mm) | 2000x900x1040 |
| Weight(Kg) | 620 |
| Engine Detail | |
| Manufacturer | Quanchai engine Co.,Ltd |
| Model | 4102D |
| Engine speed | 1500rpm |
| Engine power | |
| …………Prime power | 33KW(50Hz) |
| Type | vertical,4 cylinder,in-line,water-cooled,four-stroke |
| Aspiration | Naturally aspirated |
| Governor | electrical |
| Bore*Stroke | 102*118mm |
| Displacement | 3.857L |
| Alternator Detail | |
| Model | STG184G |
| Output power(Kw/Kva) | 2430 |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Number of Pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | 0.50% |
| Total haarmonics (TGH/THC) | 4% |
| Wave form:Nema=TIF | 50 |
| Wave form:I.E.C=THF | 2% |
| Bearing | single |
| Coupling | Direct |

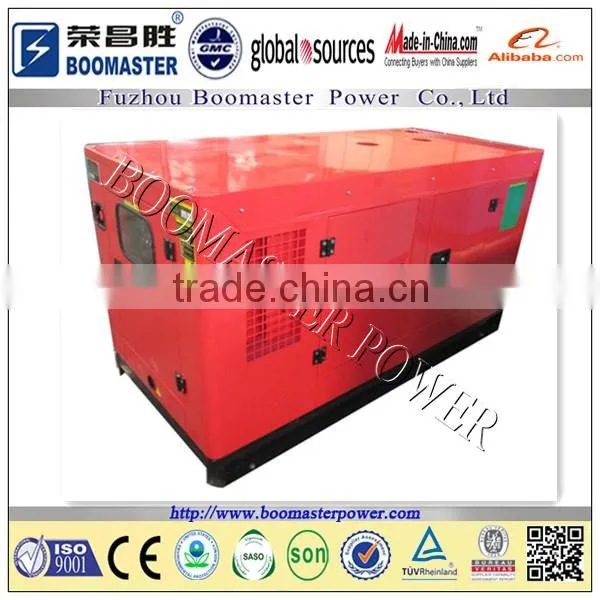

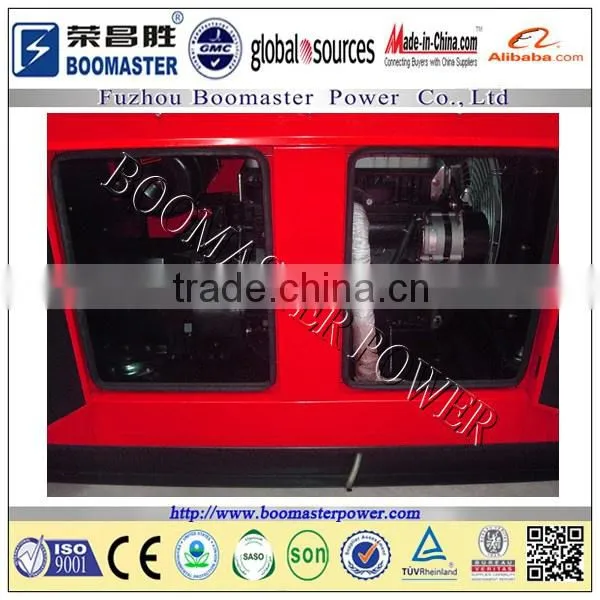

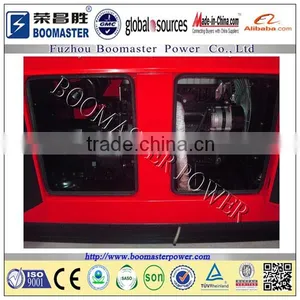

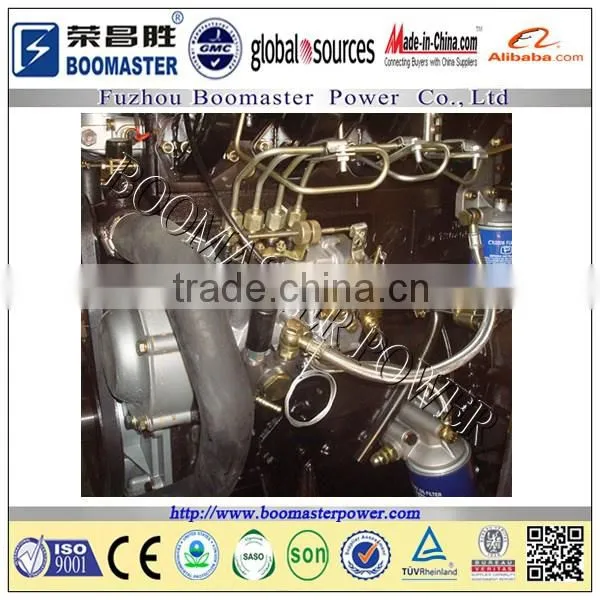

DETAIL PHOTO
PROCESSION MACHINE PHOTO
WORK ROOM
EXHIBITION
Send Inquiry to This Supplier
Business Type
Trading Company
Year Established
2012
Factory Size
Below 1,000 square meters
Total Employees
11 - 50 People
