10-40Kva Quanchai Diesel Generators Prices
US$ 999 - 99,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
BOOMASTER
Model Number:
BQ series
Payment & Shipping
Payment Methods:
Port of Shipment:
ANY PORT IN CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
80KW/100Kva Yuchai Diesel Generators PricesUS$ 999 - 99,999MOQ: 1 Set -
160KW/200Kva Silent Yuchai Standby Power GeneratorUS$ 999 - 99,999MOQ: 1 Set
-
Best Gasoline Generator With CE,EPA,Copper Wire and Full PowerUS$ 99 - 999MOQ: 10 Sets
-
1000kva Jichai GeneratorUS$ 3,999 - 99,999MOQ: 1 Set
-
800KW Jichai Name GeneratorUS$ 3,999 - 99,999MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
BOOMASTER
Model Number
BQ series
Output Type
AC Three Phase
Speed
1500/1800rpm
Frequency
50/60Hz
Rated Power
10Kva to 40Kva
Rated Voltage
120/208V,230/400V
Rated Current
14.5-58A
Specifications
1.Quanchai diesel generators prices2.Many Engines available
3.Single/three phase,50/60HZ
4.Low noise/stable power
10Kva to 40Kva Quanchai diesel generators prices
Product Description

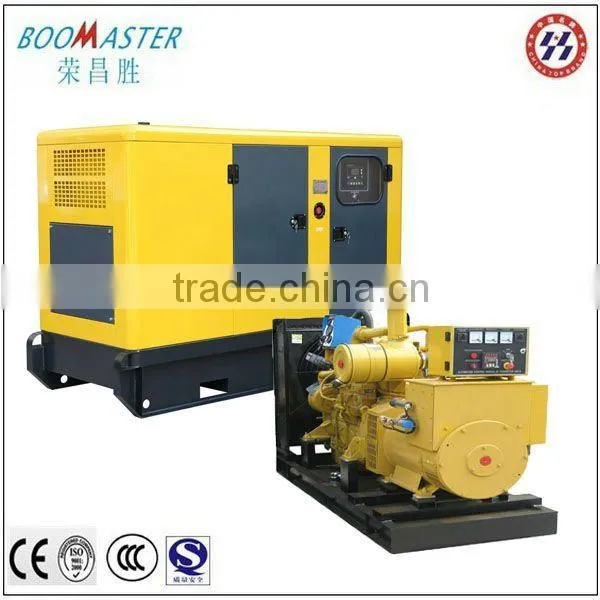

Silent Diesel Generator Set Power by Quanchai
Rate power: 10-40KVA
Voltage: 230/400v (110-760v)
Frequency: 50(60Hz)
1. Quanchai diesel engine:
2. Alternator: SLG or STG series Brushless Alternator
Standard parts: Meter. DieselFuel tank. Digital controller etc
3. Optional parts: ATS
| Technical Data | |||||
| Type | BQ-10 | BQ-20 | BQ-30 | BQ-40 | |
| Rated Power(KVA) | 10 | 20 | 30 | 40 | |
|
Quanchai Diesel Engine |
Type | QC380D | N485D | 4102D | 4105D |
| cylinder no. | 3L | 4L | 4L | 4L | |
| Diesel-Consumption (g/kw.h) | <237 | <237 | <237 | <237 | |
| Bor*stroke(mm) | 80*90 | 85*90 | 100*105 | 100*105 | |
| Starting systerm |
Electric Starting |
Electric Starting |
Electric Starting |
Electric Starting |
|
| cooling Mode | Closed Circulation Water Cooling | ||||
|
Brushless Alternator |
Type | MIC-10 | MIC-20 | MIC-30 | MIC-40 |
| Rated Power(Kva) | 10 | 20 | 30 | 40 | |
| Characteristic | Stamford model.Brushless Self excitation. With AVR | ||||
| Rated Voltage(V) | 120/208V,230/400V | ||||
| Rated Freq.(Hz) | 50/60HZ | ||||
| Rated Speed(r/min) | 1500/1800RPM | ||||
Genset |
Standar parts: |
with meter.indicator,Emergency stop switch. with battery and Diesel fuel tank |
|||
| Additional Parts | Digital Controller panel | ||||
Open Genset |
Dimensions(LxWxH)mm | 1600*700*900 | 1700*700*900 | 1900*700*900 | 1900*700*900 |
| Weight(kgs) | 550 | 700 | 800 | 900 | |
Silent Genset |
Dimensions(LxWxH)mm | 1660x880x950 | 1830x880x950 | 2000x900x1040 | 2000x900x1040 |
| Weight(kgs) | 650 | 800 | 950 | 950 | |
