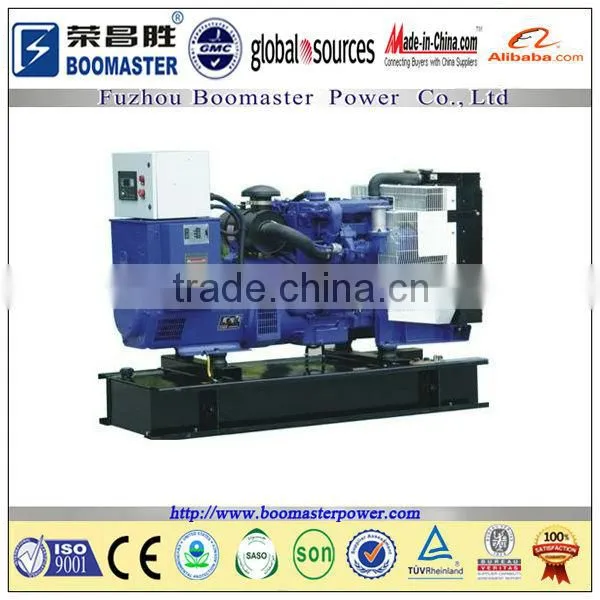

Kofo Electric generator for pakistan goods
Genset specification
Genset model | BK-50 |
Prime power | 40kw/50kva |
Standby power | 44kw/55kva |
Engine model | 4105ZD |
Alternator model | STC-40 |
dimension(L*W*H)mm | 2300*1100*1300 |
Weight(kgs) | 1200 |
Engine details
Model | 4105ZD |
Type | IN-LINE,WATER COOLED,4-STOKE,DIRECT INJECTION |
Output power(kw) | 56 |
Fuel consumption(g/kw.h) | 239 |
Cooling method | Water cooling |
Starting method | Electric starting |
Cylinders | 4 |
Bore(mm) | 105 |
Stroke(mm) | 125 |
Engine displacement(L) | 4.33 |
Compression ratio | 16:01 |
Combustion system | Direct injection |
Lubricating manner | Combined pressure and splash |
Inspiration method | Natural inspiration |
Overalldimention(L×W×H)(mm) | 1100×780×1100 |
Net weight(KGS) | 420 |
Alternator details
Model | STC-40 |
Rater power | 40kw |
Tyep | Brush A.C.Synchronous |
Altitude | Not exceed 100m |
Cooling air temperature | 258-313K(-15°C-40°C) |
Relative humidity | Not exceed 90% |
Insulation class | B |
Protection grade | IP21 |
