CE Approved Single Output Constant Voltage Ac/dc 150W 5V 30A Psu Power Supply Unit
- Guangzhou port
- T/T Credit Card
You May Like
-
dc Single Output 150w 36v Medical Power Supply With CE RoHS
-
Guangdong Manufacturer Sell Single Output Constant Voltage Acdc 150w 220v 3.3v Power Supply
-
Manufacturing Company Sell ac to dc Single Output Constant Voltage 110v ac to 24v dc Power Supply 200w
-
CE RoHS 120w Open Frame Power Supply 12v 5v
-
ac to dc Single Output Constant Voltage 150w 36v 250w 12v Switching Power Supply for Audio With CE RoHS
-
3.3v 45a 150w 100 Volt dc Power Supply With CE Approved
Product Details
| Place of Origin | Guangdong, China | Brand Name | HPower | |
| Model Number | HB-150W-5V | Output Power | 101 - 200W | |
| Output Type | Single | Input Voltage | 220V | |
| Output Voltage | 5V | Output Frequency | N/A | |
| Output Current | 30A |
Product Description
Specifications
Isolated led tube driver 5v 30a 150wCE
Input voltage: 90~132VAC/180~264VAC
Potections: short circuit / over load / over vol
Isolated led tube driver description:
Product name: HB-150W-5V isolated led tube driver
Rated power: 150W
Output voltage: DC5V
Ripple & Noise (max.): 100mVp-p
Over load protection: 110~115% rated output power
Over voltage protection: 5.5~6.75V
Over temperature protection: 100°C±5°
Business type: Manufacturer/Factory
Trade Mark: HPower
Certificates: CE, RoHS, CCC
Warranty: 2 years
Isolated led tube driver features:
v Universal AC input/Full range
v High efficiency up to 90%
v Protection: Short circuit/Overload /Over Voltage/Over Temperature
v Bult-in constant current limiting circuit
v 8 hrs and 100% full load bult-in test
v Compliance to worldwide safety regulations for lighting
v Suitable for LED lighting and moving sign applications
v 2 years warranty
Isolated led tube driver details:
150w Series, include output 3.3v, 5v, 12v, 15v, 24v and 36v.
| Model | HB-150W-3.3V | HB-150W-5V | HB-150W-12V | HB-150W-15V | HB-150W-24V | HB-150W-36V | |
| Output | DC Voltage | 3.3V | 5V | 12V | 15V | 24V | 36V |
| Rated Current | 45A | 30A | 12.5A | 10A | 6A | 4A | |
| Current Range | 0~45A | 0~30A | 0~12.5A | 0~10A | 0~6A | 0~4A | |
| Rated Power | 148.5W | 150W | 150W | 150W | 144W | 144W | |
| Ripple & Noise (max.) | 100mVp-p | 100mVp-p | 100mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | |
| Voltage Adj. Range | 3.14~3.63V | 4.75~5.5V | 11.4~13.2V | 14.3~16.5V | 22.8~26.4V | 34.2~39.6V | |
| Voltage Tolerance | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±1.0% | ±1.0% | |
| Line Regulation | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±0.5% | ±0.5% | |
| Load Regulation | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | |
| Setup,Rise time | 600ms,30ms at full load | ||||||
| Hold Up Time(Typ.) | 13ms at full load | ||||||
| Input | Voltage Range | 90~132VAC/180~264VAC | |||||
| Frequency Range | 47~63HZ | ||||||
| Efficiency(Typ.) | 82% | 83% | 86% | 85% | 88% | 90% | |
| AC Current (Typ.) | 5A/115VAC 3A/230VAC | ||||||
| Inrush Current (Typ.) | 20A/115VAC 40A/230VAC | ||||||
| Leakage Current | <2mA / 240VAC | ||||||
| Protection | Over Load | 110~115% rated output power | |||||
| Protection type: Shut down O/P,re-power on to recover | |||||||
| Over Voltage | 3.63~4.46V | 5.5~6.75V | 13.2~16.2V | 16.5~20.25V | 26.4~32.4 | 39.6~48.6V | |
| Protection type: Shut down O/P,re-power on to recover | |||||||
| Over Temperature | 100°C±5°C(3.3V~12V); 105°C±5°C(15V~36V); TSW1 detect on main power transformer for others | ||||||
| Protection type: Shut down O/P,recovers automatically after temperature goes down | |||||||
| Environment | Working Temperature | -20~+40°C | |||||
| Working Humidity | 20~90% RH Non-condensing | ||||||
| Storage temp.& humidity | -20~+85°C, 10~95%RH | ||||||
| Temp. coefficient | ±0.03%/°C (0~50°C) | ||||||
| Vibration | 10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X,Y,Z axes | ||||||
| Safety & EMC | Safety Standards | UL60950-1 approved | |||||
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||||||
| Others | MTBF | 10000hrs MIL-HDBK-217F (25°C) | |||||
| Dimension | 200*110*38mm (L*W*H) | ||||||
| Packing | 0.55Kg; 36pcs/21.4Kg/1.85CUFT | ||||||
| Note | 1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25°C of ambient temperature. | ||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 10uf parallel capacitor. | |||||||
| 3. Tolerance: includes set up tolerance, line regulation and load regulation. | |||||||
| 4. Derating may be needed under low input voltages. | |||||||

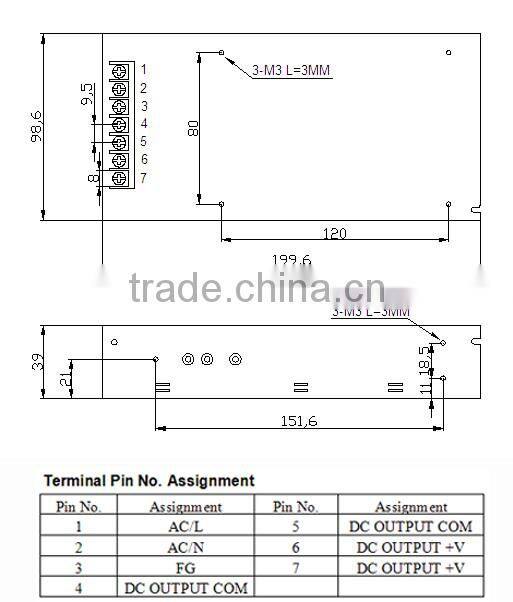

Isolated led tube driver structural drawing(Unit::mm):
Isolated led tube driver derating curve:
Isolated led tube driver applications:
1. LED display, led strip, nixie tube, street light, lamp;
2. Electrical equipment, Instrumentation ;
3. LCD, LED, CCTV camera;
4. Digital and electronic products;
5. Building lighting decoration;
6. Communications and security products.

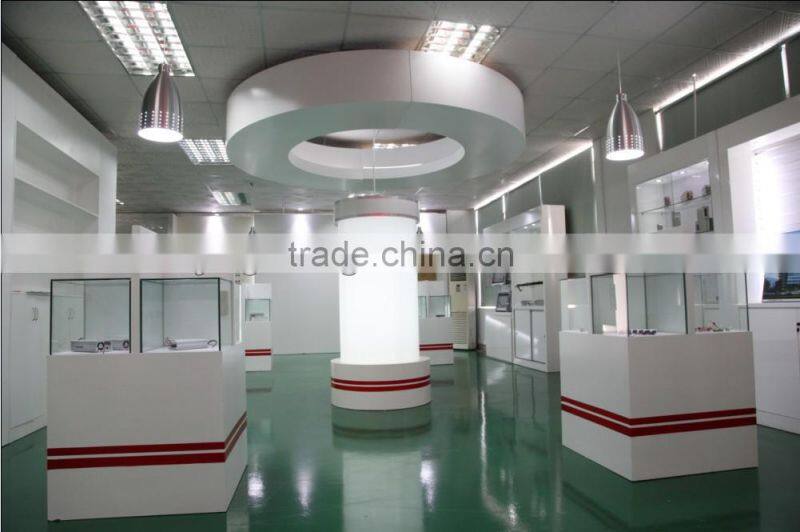

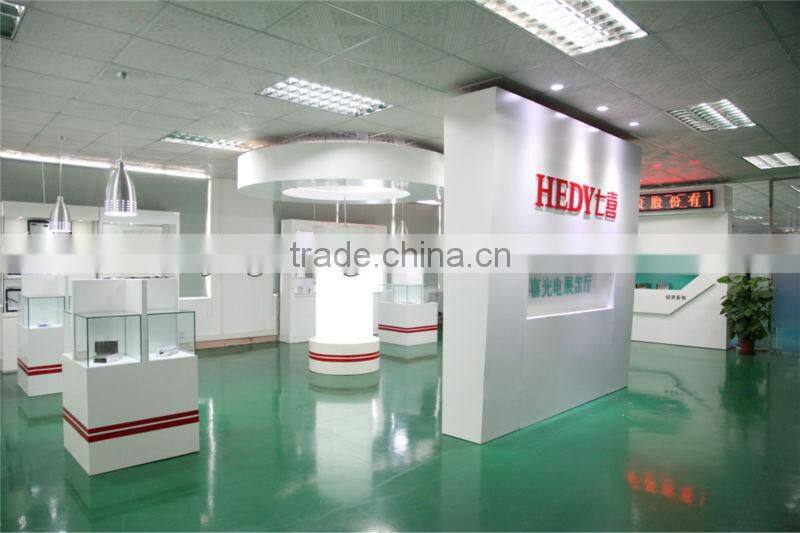

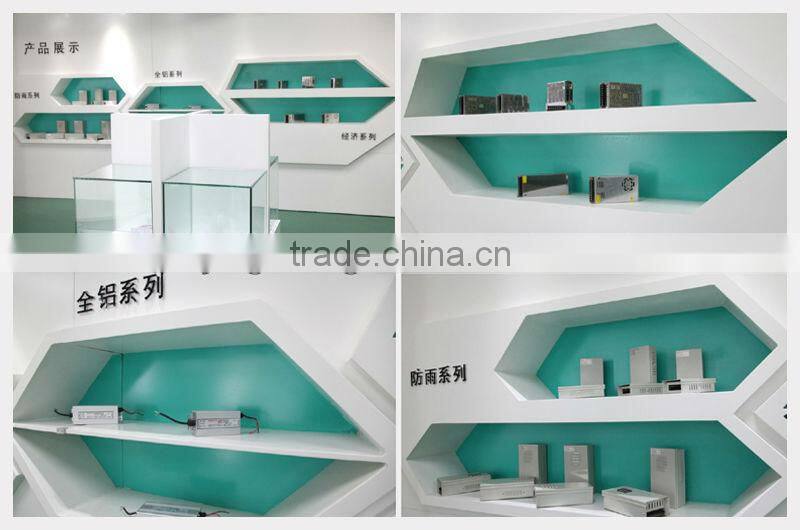

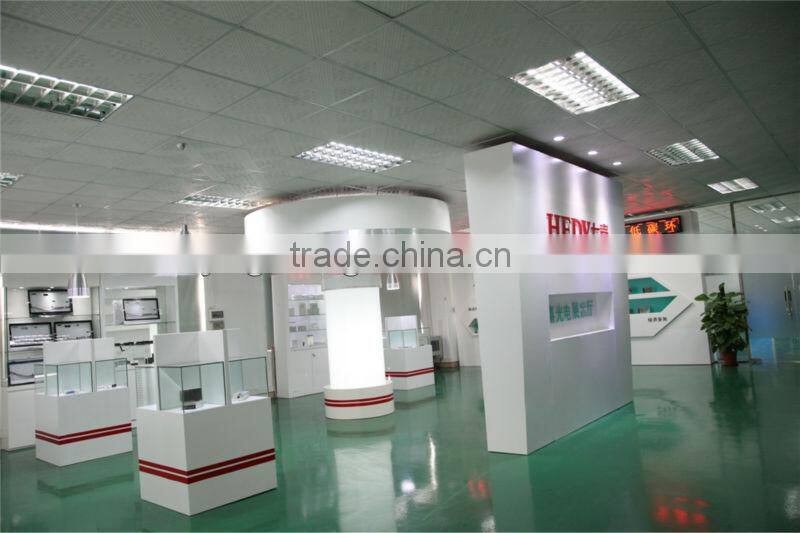

Our isolated led tube driver show room HEDY:

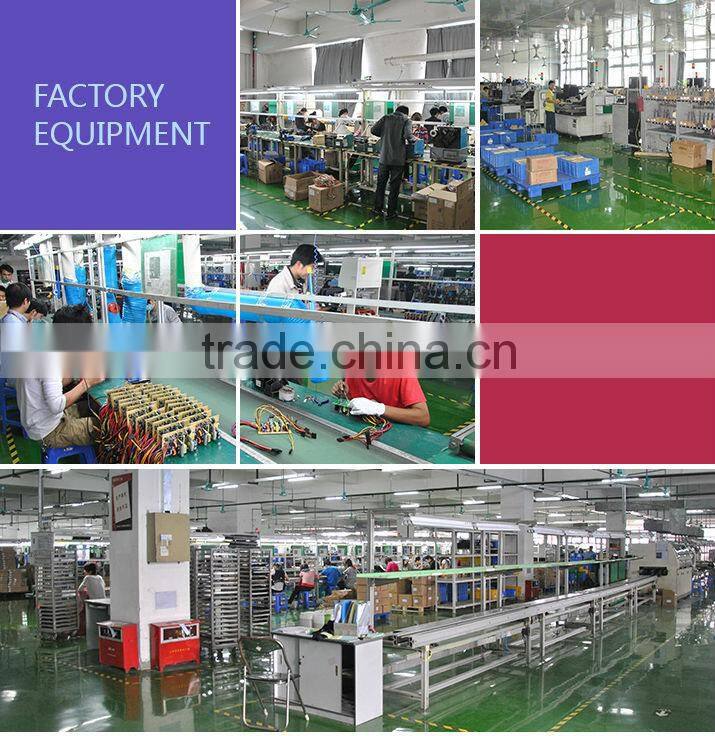

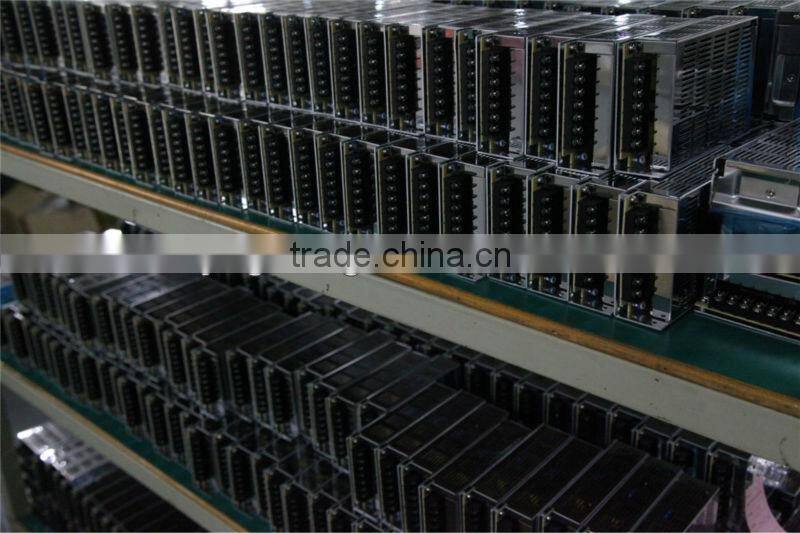

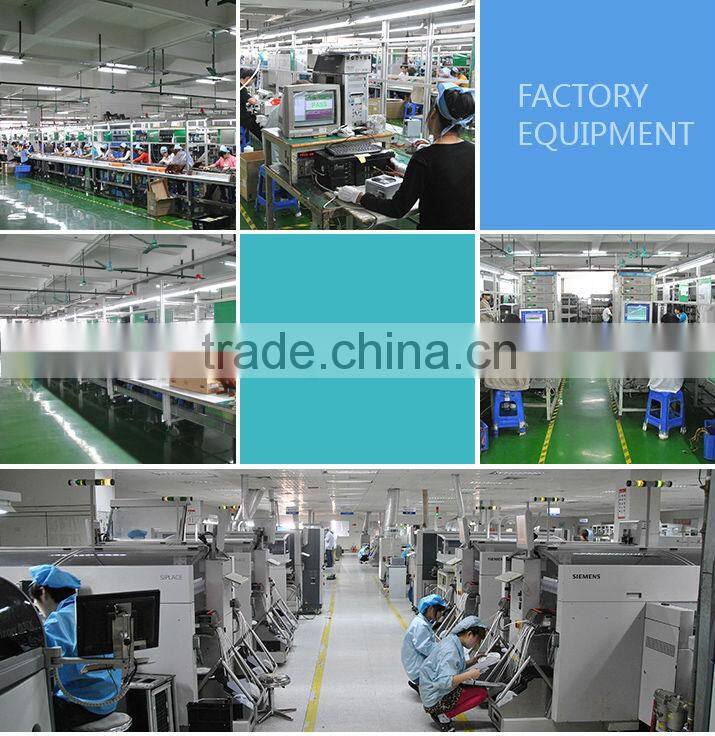

Our isolated led tube driver workshop HEDY:
Isolated led tube driver packing and delivery
Lead time: 7-15 days
Delivery method:
ü Express service: FedEx/DHL/UPS/TNT/EMS
ü Air transportation: factory to airport
ü Ocean shipping: factory to port
