Specifications
200w 15v IP67 waterproof led display driverInput voltage: 90~132VAC/180~264VAC
Output voltage:15V
Constant voltage
CE RoHS
200w waterproof led display driver description:

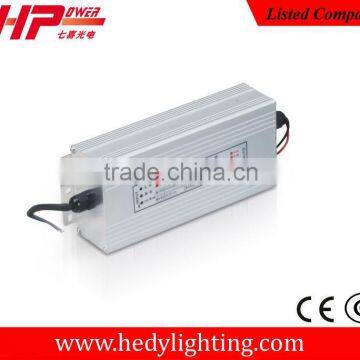

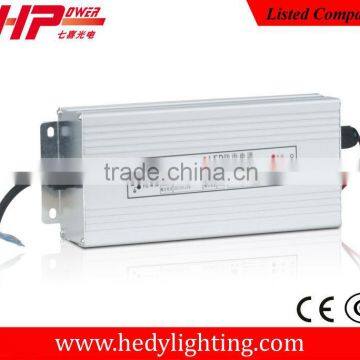

Product name: 200w 15v IP67 waterproof led display driver
Rated power: 200W
Output voltage: DC15V
Ripple & Noise (max.): 100mVp-p
Over load protection: 110~115% rated output power
Over voltage protection: 16.5~20.25V
Over temperature protection: 100°C±5°
Business type: Manufacturer/Factory
Trade Mark: HPower
Certificates: CE, RoHS, CCC
Warranty: 2 years
200w 15v waterproof power supply features:
v Waterproof / IP67
v Universal AC input/Full range
v Protection: Short circuit/Overload /Over Voltage/Over Temperature
v Bult-in constant current limiting circuit
v 100% full load bult-in test
200w 15v waterproof power supply applications:
1.Digital and electronic products;
2.LCD, LED, CCTV camera;
3.Communications and security products;
4.Electrical equipment, Instrumentation
5.LED display, led strip, nixie tube, street light, lamp;
6. Building lighting decoration.
200w waterproof power supply details:
200w IP67 waterproof Series, include output 12v, 15v, 24v and 36v.
| Model | HA-200-12V-U | HA-200-15V-U | HA-200-24V-U | HA-200-36V-U | |
| Output | DC Voltage | 12V | 15V | 24V | 36V |
| Rated Current | 17A | 13A | 8.5A | 5.5A | |
| Current Range | 0~17A | 0~13A | 0~8.5A | 0~5.5A | |
| Rated Power | 204W | 195W | 204W | 198W | |
| Ripple & Noise (max.) | 100mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | |
| Voltage Adj. Range | 11.4~13.2V | 14.3~16.5V | 22.8~26.4V | 34.2~39.6V | |
| Voltage Tolerance | ±2.0% | ±2.0% | ±1.0% | ±1.0% | |
| Line Regulation | ±1.0% | ±1.0% | ±0.5% | ±0.5% | |
| Load Regulation | ±5.0% | ±5.0% | ±5.0% | ±5.0% | |
| Setup,Rise time | 600ms,30ms at full load | ||||
| Hold Up Time(Typ.) | 13ms at full load | ||||
| Input | Voltage Range | 90~132VAC/180~264VAC | |||
| Frequency Range | 47~63HZ | ||||
| Efficiency(Typ.) | 82% | 85% | 87% | 90% | |
| AC Current (Typ.) | 5A/115VAC 3A/230VAC | ||||
| Inrush Current (Typ.) | 20A/115VAC 40A/230VAC | ||||
| Leakage Current | <2mA / 240VAC | ||||
| Protection | Over Load | 110~115% rated output power | |||
| Protection type: Shut down O/P,re-power on to recover | |||||
| Over Voltage | 13.2~16.2V | 16.5~20.25V | 26.4~32.4 | 39.6~48.6V | |
| Protection type: Shut down O/P,re-power on to recover | |||||
| Over Temperature | 100°C±5°C(5V~12V); 105°C±5°C(15V~36V); TSW1 detect on main power transformer for others | ||||
| Protection type: Shut down O/P,recovers automatically after temperature goes down | |||||
| Environment | Working Temperature | -20~+40°C | |||
| Working Humidity | 20~90% RH Non-condensing | ||||
| Storage temp.& humidity | -20~+85°C, 10~95%RH | ||||
| Temp. coefficient | ±0.03%/°C (0~50°C) | ||||
| Vibration | 10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X,Y,Z axes | ||||
| Safety & EMC | Safety Standards | UL60950-1 approved | |||
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||||
| Others | MTBF | 10000hrs MIL-HDBK-217F (25°C) | |||
| Dimension | 220*90*50mm (L*W*H) | ||||
| Packing | 0.9Kg; 28pcs/27.4Kg/1.88CUFT | ||||

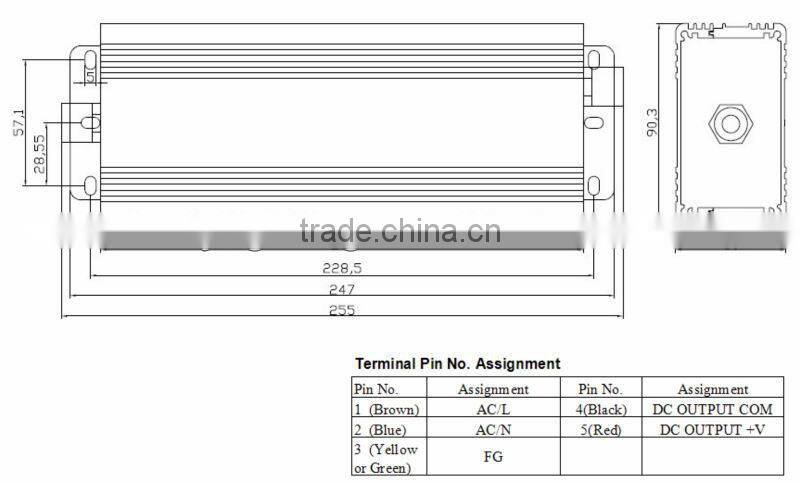

IP67 water power supply structural drawing:
IP67 waterproof power supply derating curve:
Waterproof led drivery packaging and shipping:
0.32Kg/pc; 28pcs/carton; 27.4Kg/carton; 1.88CUFT/carton
Lead time: 7-15 days
Delivery method:
ü Express service: FedEx/DHL/UPS/TNT/EMS
ü Air transportation: factory to airport
ü Ocean shipping: factory to port
Our led driver show room:

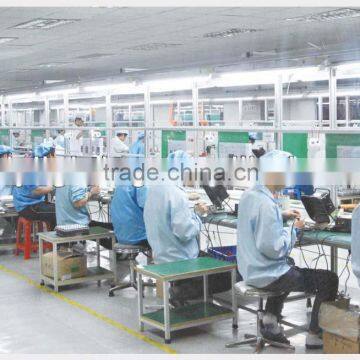

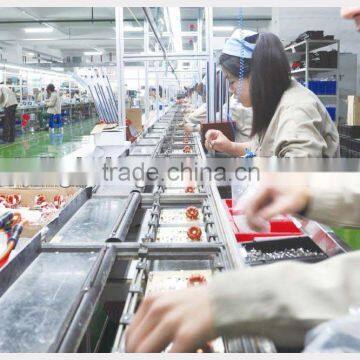

Our led driver workshop:
