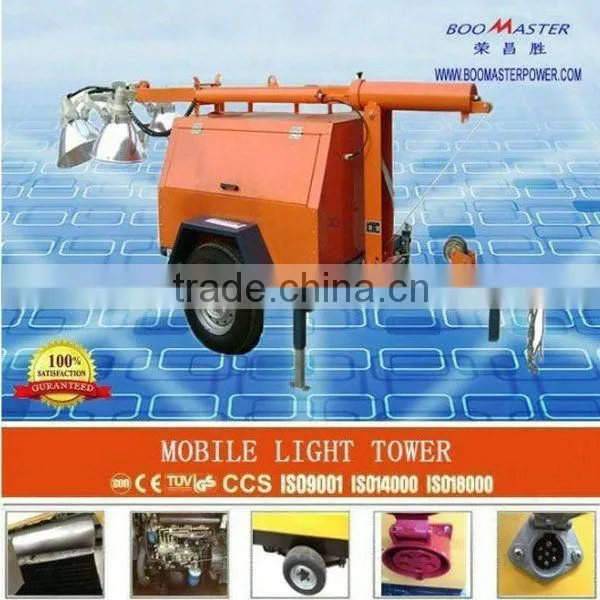

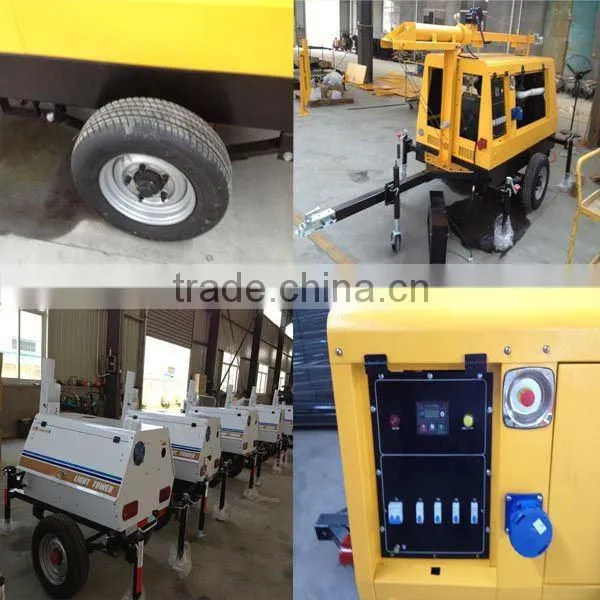

Mobile Generator Light Tower With 4 x 1000w Lamps and 5kw Generator
US$ 1 - 2,999
MOQ: 5 Sets
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Boomaster
Model Number:
BLT4000
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Fujian, China
Brand Name
Boomaster
Model Number
BLT4000
Output Type
AC Single Phase
Speed
3000rpm / 3600rpm
Frequency
50/60hz
Rated Power
5kw
Rated Voltage
110/220, 230/400v
Specifications
Mobile light tower1 lamps: 4 X 1000w
2 Generator: 5000w
3.fuel tank: 36L
Detailed Product Description
| MODEL | BLT4000 |
| Mast | |
| Maximum extention of mast | 9m |
| Elevation | Mechanical / Electric |
| Rasing / Lowing mast | Winch(Mechanical) / Button(Electric) |
| Stages | 3 |
| Turning angle | 360 degree non-continuous |
| Lamp | |
| Total power of lamps | 4×1000W |
| Type of lamp | Metal halide lamp |
| Light capacity | 4×110000 lumen |
| Frequency | 50Hz / 60Hz |
| Lifetime of lamp | 5000 hours |
| Working temperature | ≤85°C |
| Connection protection index | IP54 |
| Light Coverage | 5 to 7 acres |
| Characterisitics of the generator | |
| Model | DG7500S |
| Rated power | 50Hz 4.5 kW 60Hz 5.0kW |
| Standby power | 50Hz 5.0 kW 60Hz 5.5kW |
| Voltage | 120,220,230,240 |
| Engine model | 186FA |
| Engine speed | 50Hz 3000 rpm 60Hz 3600 rpm |
| Starting systerm | Electric |
| Alternator | 2-pole,brushless |
| Fule tank capacity | 36L |
| Prime fuel consumption at 100% load | 1.65L/h |
| Working hours | 28 |
| Control systerm | Mechanical control pannel |
| Power outlet | 2 |
| Trailer | |
| Tow hitch | Ring or ball hitch |
| Stabilier Support | 5 × manual |
| Tire Size | Diameter=52cm |
| Anti-wind capacity | ≤10 |
| Brakes | Manual |
| Dimension & Weight | |
| Retracted Dimension | 4400 × 1200 × 1930 |
| Container load (20FT / 40FT) | 8 / 16 (At least) |
| Net weight | 680kg |
| Other Options: | |
| 6m mast | |
| Truck tire (Diameter=65cm) | |
| Boomaster power is flexible enough to meet your custom product needs | |
| Please contact Boomaster Power for more information on options available. | |
