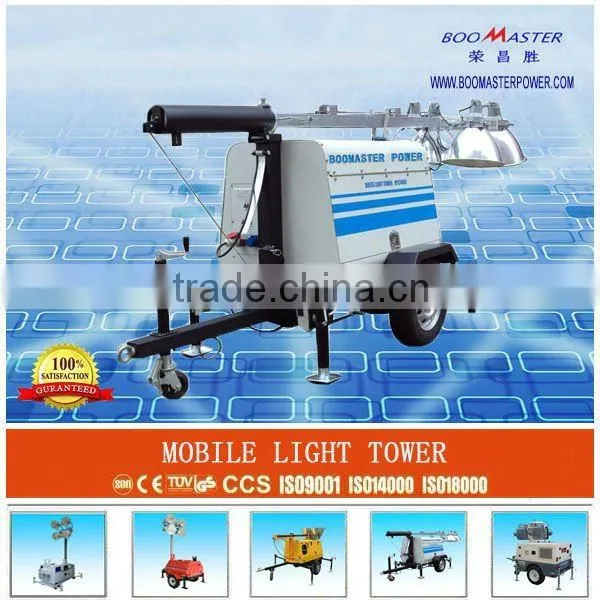

Chinese Engine Light Tower Move by Trailer
US$ 999 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
BOOMASTER
Model Number:
BLT Series
Payment & Shipping
Payment Methods:
Port of Shipment:
ANY PORT IN CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Fujian, China
Brand Name
BOOMASTER
Model Number
BLT Series
Output Type
AC Single Phase
Speed
1500/1800rpm
Frequency
50/60Hz
Rated Power
from 1-10kw
Rated Voltage
120/208V,230/400V
Rated Current
from 99-999A
Specifications
Chinese engine Light Tower move by Trailer1.360 degree non-continuous
2.Low noise/stable power
3.support Kubota, Perkins
Chinese engine Light Tower move by Trailer
Detailed Product Description
1.Model: BLT SERIES
2.Floodlights: 4* 400/ 1000watts.
3.Generator: 5kw
4.Luminous flux(lm):440000lm
| Model | BLT1600 | BLT400 |
| Mast | ||
| Maximum extention of mast | 7m | 9m |
| Elevation | Mechanical / Electric | Mechanical / Electric |
| Rasing / Lowing mast | Winch(Mechanical) / Button(Electric) | Winch(Mechanical) / Button(Electric) |
| Stages | 2 | 3 |
| Turning angle | 360 degree non-continuous | 360 degree non-continuous |
| Lamp | ||
| Total power of lamps | 4×400W | 4×1000W |
| Type of lamp | Metal halide lamp | Metal halide lamp |
| Light capacity | 4×25000 lumen | 4×110000 lumen |
| Frequency | 50Hz / 60Hz | 50Hz / 60Hz |
| Lifetime of lamp | 2000 hours | 5000 hours |
| Working temperature | ≤ | ≤85°C |
| Connection protection index | IP54 | IP54 |
| Light Coverage | 5 to 7 acres | |
| Characterisitics of the generator | ||
| Model | DG6500 | DG7500S |
| Rated power | 50Hz 4.2 kW 60Hz 5.0kW | 50Hz 4.5 kW 60Hz 5.0kW |
| Standby power | 50Hz 4.5 kW 60Hz 5.5kW | 50Hz 5.0 kW 60Hz 5.5kW |
| Voltage | 120,220,230,240 | 120,220,230,240 |
| Engine model | 186FA Diesel | 186FA |
| Engine speed | 50Hz 3000 rpm 60Hz 3600 rpm | 50Hz 3000 rpm 60Hz 3600 rpm |
| Starting systerm | Recoil & Electric | Electric |
| Alternator | 2-pole,brushless | 2-pole,brushless |
| Fule tank capacity | 36L | |
| Prime fuel consumption at 100% load | 1.65 l/h | 1.65L/h |
| Working hours | 9.5 | 28 |

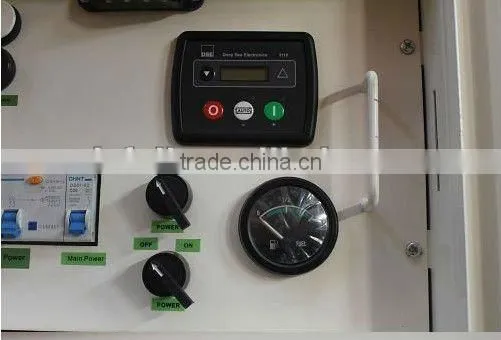

| Control systerm | Digital control pannel | Mechanical control pannel |
| Power outlet | 2 | 2 |
| Trailer | ||
| Tow hitch | Ring or ball hitch | |
| Stabilier Support | 4 × manual | 5 × manual |
| Tire Size | Diameter= | Diameter=52cm |
| Anti-wind capacity | ≤6 | ≤10 |
| Brakes | Manual | Manual |
| Dimension & Weight | ||
| Dimension (mm) | 2300 × 610 × 1060 | 4400 × 1200 × 1930 |
| Container load ( / ) | 12 / 24 (At least) | 8 / 16 (At least) |
| Net weight | 350kgs | 680kg |
