Diesel Engine Mobile Light Tower With 10kw Generator
US$ 1 - 6,999
MOQ: 5 Sets
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Boomaster / Perkins
Model Number:
BLT10000
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Diesel Engine Mobile Light Tower With EPA CertificateUS$ 1 - 5,999MOQ: 5 Sets -
Diesel Engine Mobile Light Tower With 8.8kw/10kw GeneratorUS$ 1 - 4,999MOQ: 5 Sets
-
Pekrins Engine Mobile Light Tower With 360 Degree Non-continuous Truning AngleUS$ 7412.00 - 7412.00MOQ: 1 Set
-
Kubota Engine Mobile Light Tower With 4 x 1000w Lamps Quality ChoiceUS$ 7835.00 - 7835.00MOQ: 1 Set
-
Mobile Generator Light Tower With 4 x 1000w Lamps and 5kw GeneratorUS$ 1 - 2,999MOQ: 5 Sets
Place of Origin
Fujian, China
Brand Name
Boomaster / Perkins
Model Number
BLT10000
Output Type
AC Single Phase
Speed
1500rpm / 1800rpm
Frequency
50/60hz
Rated Power
8.8kw / 11kw
Rated Voltage
110/220, 230/400v
Specifications
Mobile light tower1 lamps: 4 X 1000w
2 .With 10KW diesel generator
3. Smartgen Digital Controller
Detailed Product Description

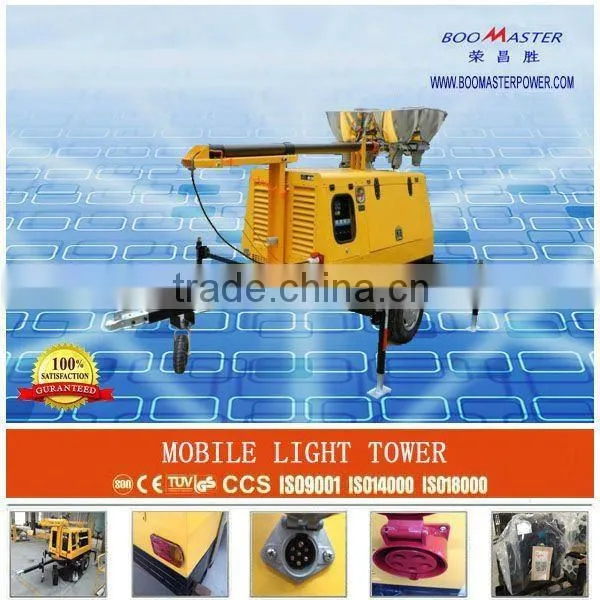

diesel engine mobile light tower BLT10000
| Mobile Light Towers | ||||
| Tower Light | Specifications | |||
| Height of Mast | 9M | |||
| Power of Lamps | 4*1000W Metal Halide, Square | |||
| Luminous Flux | 440000lm | |||
| Elevation of Mast | Manual/Electric/Pneumatic | |||
| Raising/lowing of Mast | Manual/Electric | |||
| Rotation of Mast | 360°, Manual | |||
| Windproof Ability | < 10M/S or 19KTS | |||
| Inclination | <10 degree | |||
| Lampholder | E40, Edison screw | |||
| Alternator | ||||
| Alternator Type | Brushless, with AVR | |||
| Alternator Model | Stamford | Leroy Somer | Chinese Brand | |
| PI044F | LSA40.VS2 | 164C | ||
| Frequency | 50Hz 60Hz | |||
| Continous AC Power | 10kVA 12 kVA | |||
| AC Voltage | 110/220, 115/230, 120/240V etc. | |||
| Phase Number | Single Phase | |||
| Power Factor | 1 | |||
| Insulation Class | H | |||
| Engine | ||||
| Engine Type | Water-cooled, 4-stroke, Diesel, 3-Cylinder | |||
| Engine Model | Kubota | Perkins | Quanchai | |
| D1505-BG | 403D-22G | QC480D | ||
| Aspiration | Natural | |||
| Emission Level | Stage2/Tier4 | Stage2/Tier4 | EU Stage A | |
| Engine Speed | 1500rpm 1800rpm | |||
| Fuel Capacity | 120L (base tank) | |||
| Full Tank Operating | 60 hr | |||
| Start System | Electric | |||
| Noise at 7M | 70 db(A) | |||
| Trailer | ||||
| Hitch | Ring or Ball | |||
| Tyre Diameter | 520MM | |||
| Stablizing Legs | 4 pcs, Manual | |||
| Suspension System | Leaf Spring Axle | |||
| Weight&Packing | ||||
| Net Weight | 1060 kg | |||
| Gross Weight | 1100 kg(Plywood Case) | |||
| Retracted Size | 4200x1370x1750 MM | |||
| 20'GP Qty (units) | 4 for Plywood Case/8 for nude packing | |||
| 40'HQ Qty (units) | 8 for Plywood Case/16 for nude packing | |||
