Specifications
1) 96 Three Sets Digital AC Panel meter2) Display: 4 digits LED display
3) Consumption:<3VA

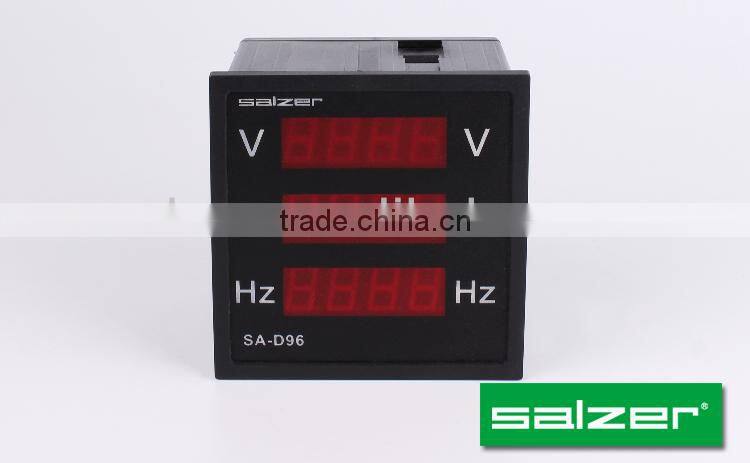

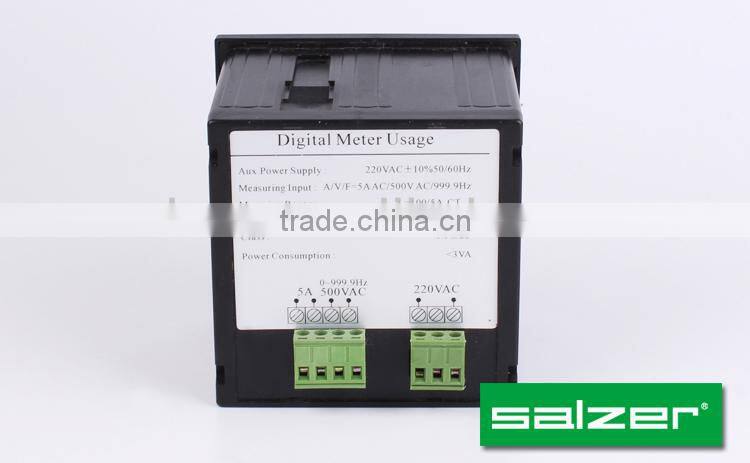

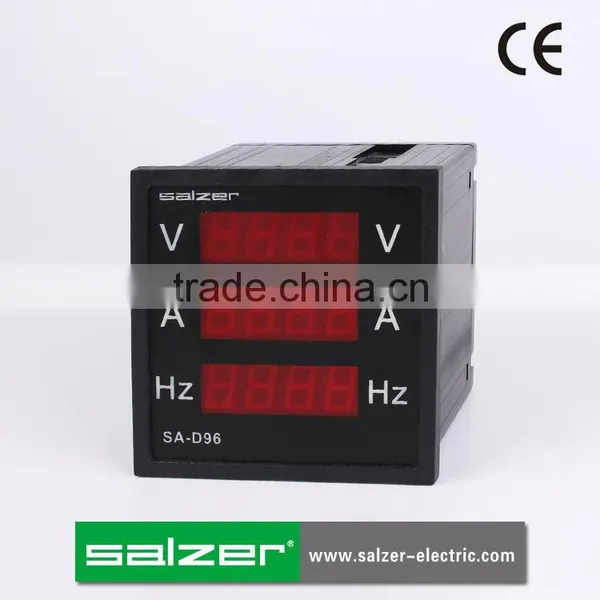

SALZER Brand SA-D96 AC V-A-Hz 96 Three Sets Digital AC Panel meter
| Name | 96 Three Sets Digital AC Panel Meter |
| Model | SA-D96 AC V-A-HZ |
| Display | 4 digits LED display |
| Accuracy | 0.5% ± 2 digits |
| Auxiliary power | AC 110V ± 10% 50/60Hz or 220V ± 10% 50/60Hz |
| Input signal | AC voltage 600V. It must be connected by a suitable potential transformer if the voltage is more than 600VAC. AC current 0-1A or 0-5A. It must be connected by a suitable AC current transformer if the current more than 5A. |
Frequency | 0-999.9Hz |
Measuring range display | It is selectable from 1.00 to 9000 for the AC voltage. |
| Consumption | <3VA. |
| Operating environment | Temperature 0~40°C, humidity: ≤70% |
| Withstand voltage surge | Over 2000V |
| Outer size of the digital frequency meter | 96x96mm |
We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.
