Home > Instruments & Meters > Meter for Electricity > Current Meter > SALZER Brand SA-T48A(C) Analog Current Meter

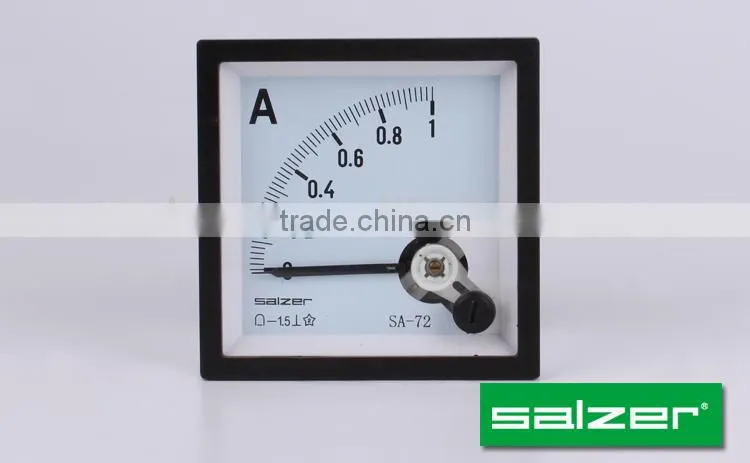

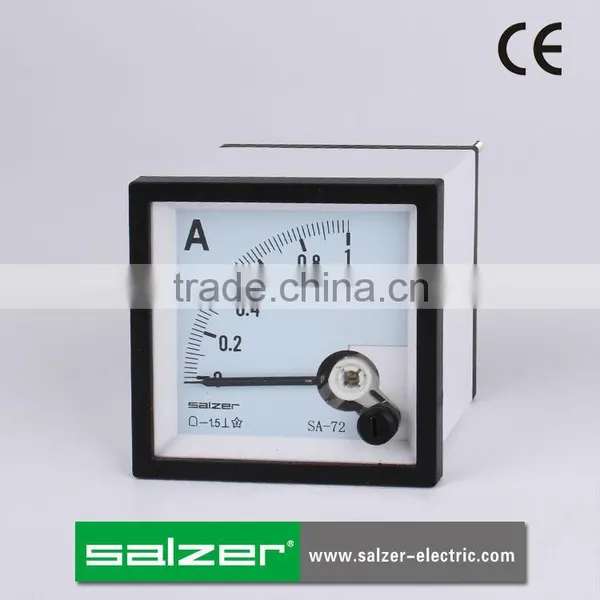

SALZER Brand SA-T48A(C) Analog Current Meter

Name: SALZER Brand SA-T48A(C) Analog Current Meter
Brand: SALZER
SKU: 103706221
Availability: InStock

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

SALZER

Model Number:

SA-T48A(C)

Contact Supplier Request Quote Chat Now

Yueqing Leyi Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name SALZER

Model Number SA-T48A(C)

Display Type Analog Only

Measuring Range 0.1A-100A, X/5A

Accuracy Class Class 1.5

Operating Temperature 0-40deg.

Dimensions 96x96mm

Specifications

1) SA-T48A(C) Analog Current Meter
2) Accuracy: Class 1.5
3) Mounting Depth:Max 43mm

SALZER Brand SA-T48A(C) Analog Current Meter

An analog panel meter is a type of panel meter which drives the needle to move based on the electromechanical principle and the position where the pointer stops shows the measured value. Generally, the analog panel meter includes analog ammeter, analog voltmeter, analog frequency meter, analog power factor meter and analog power meter.

Moving Iron Instruments AC Ammeters and Voltmeter

Feature	With cover on the moving needle(F), without cover on the moving needle(C)
Model	SA-T96A, SA-T96V, SA-T72A, SA-T72V, SA-T48A,SA-T48V
Accuracy	Class 1.5
Specification	0.1A, 0.5A, 1A, 7.5A, 10A, 15A, 20A, 25A, 30A, 40A, 50A, 60A, 75A, 100A, X/5A. For 10A-10KA, use external current transformer with secondary current 1A or 5A.
Notes	60A, 75A, 100A direct reading meters can be directly connected to circuit, but their accuracy is class 2.5. For SA-48 analog ammeter, 20A to 60A direct reading meter can be directly connected to circuit, but the accuracy class is 2.5.
Changeable scale	All scales with printing technique. The dial plates with different scale, which is at the same division and internal value, can be changeable, and the accuracy is unchangeable. The scale plates of SA-48 meter can be changeable with the same division.
Specification of Voltmeter	30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 450V, 500V, 600V For 450-450KV, meters can use potential transformer with secondary voltage 100V.
Heat Resistance	Case of non-combustible plastic material. Fastening by means of nuts, absolutely safe, fast robust, side-by side.
Mounting Depth	Max 43mm

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
