engine for new cummins marine diesel engine

FOB Price

USD $9,100 - $9,600 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

engine for new cummins marine diesel engine

1)Data of Generator Set

Technical Data
Marine Gensets Model			MG-100D
Rated capability (KVA)			100
Rated Power (KW)			80
Alternator Model	Marine Brushless Insulation Class H		TFW2-H-100
Marine Diesel Engine Model			TD226B6CD1
Rated output of engine(KW)			120
Cylinder No.			6
Bore*Stroke			105*125
Rated Voltage(V)			380/220
Phase/Connection			3Ph×4W
Rated Frequency(Hz)			50
Power Factor(COSφ)			0.8
Rated speed (r/min)			1500
Fuel consumption (g/kw.h)			≤210
Starting type			Electric
Overall Dim.		L	2000
(mm)		W	850
		H	1350

Alternator Features:

1. Stamford, Leroy Somer, Marathon

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Other pic:

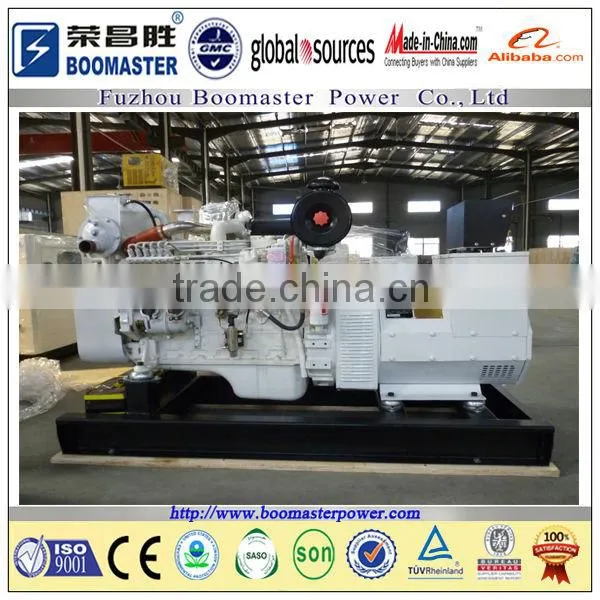

Our factory

Certification
