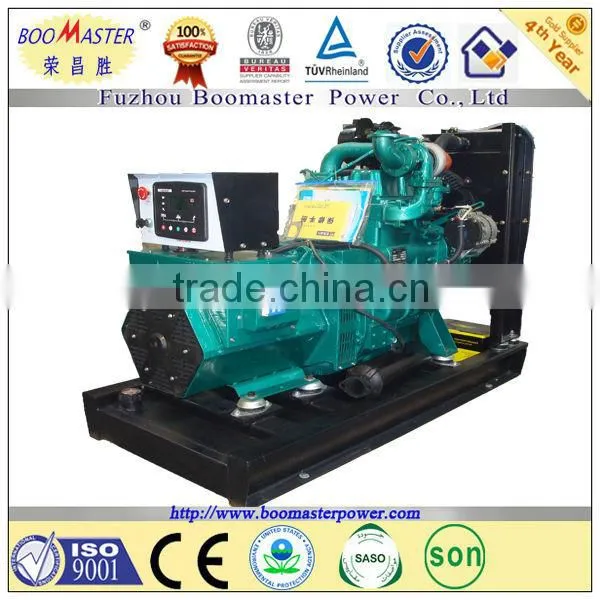

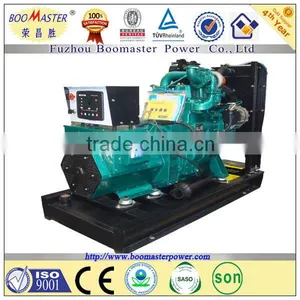

80kw Chinese Weichai Engine Marine Diesel Generators

Name: 80kw Chinese Weichai Engine Marine Diesel Generators
Brand: Weichai
SKU: 103705631

US$ 5,000 - 50,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Weichai

Model Number:

BWC-100

Elephant Tech Fuzhou Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FUZHOU

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Weichai

Model Number BWC-100

Output Type AC Three Phase

Speed 1500/1800RPM

Frequency 50/60HZ

Rated Power 80KW

Rated Voltage 230/400V

Specifications

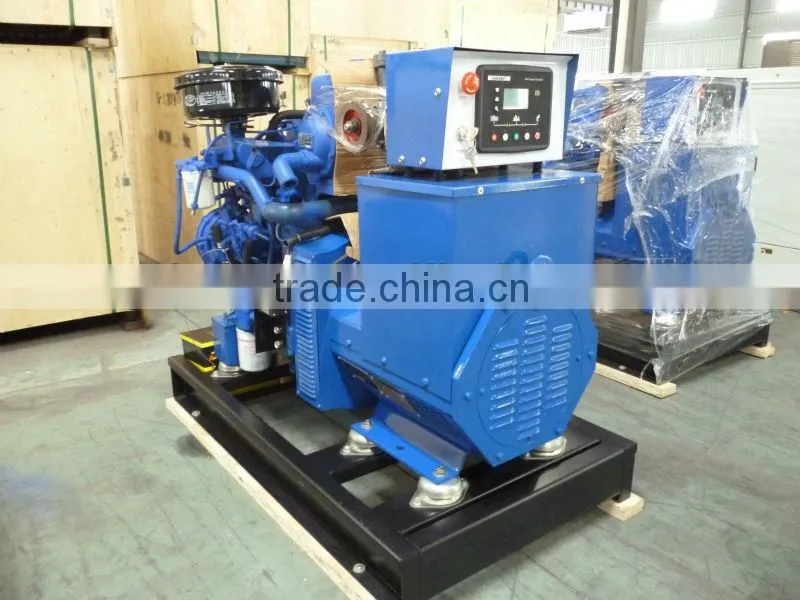

80kw Chinese Weichai engine marine diesel generators
1.Engine model:Huafeng Weichai R6105ZLD
2.Marine alternator

80kw Chinese Weichai engine marine diesel generators

100kva Weichai Huafeng R6105ZLD Marine Diesel Generator
MODEL				MWC-W88
Standby Power				110KVA/88KW
Prime Power				100KVA/80KW
ENGINE DATA
Engine Manufacturer:				WeiChai Hua Feng Power Co., Ltd
Model:				Weichai R6105ZLD (UK Ricardo Technology)
Air Intake System:				Turbocharge
Cool System:				Water-cooled
Fuel System:				Direct Injection
Cylinder Arrangement:				6 in line
Bore and Stroke:				105×125(mm)
Compression Ratio:				16:01
Governor Type:				Mechanical
Fuel Consumption:				Less than 230g/kw.h
Oil Capacity:				25.2L
Engine Radiator:				Radiator cooled, fans driven by belt
Start Type:				24V Direct Current Start
Filter System:				Dry type air filter, fuel filter, oil filter
ALTERNATOR DATA
Engine Manufacturer:				Fuzhou Boomaster Power Co.,Ltd
Model:				TFW2-H-80
Rated Power:				100KVA
Connecting Type:				3 Phase and 4 Wires, “Y” type connecting
Power Factor:				0.8
Protection Grade:				IP22
Altitude:				Less than 1000m
Insulation Class:				H/H
Telephone Influence Factor (TIF):				Less than 50
THF:				Less than 2%
GENERATING SET DATA
Voltage Regulation, Stead State:				Less than ±1%
Sudden Volts Warp:				Less than -20%---+25%
Voltage Stable Time:				Less than 5S
Open Type Size:				2400(mm)700(mm)1500(mm)
Open Type Weight:				1200kg
Control Panel:				Smartgen HGM160 manual control panel
