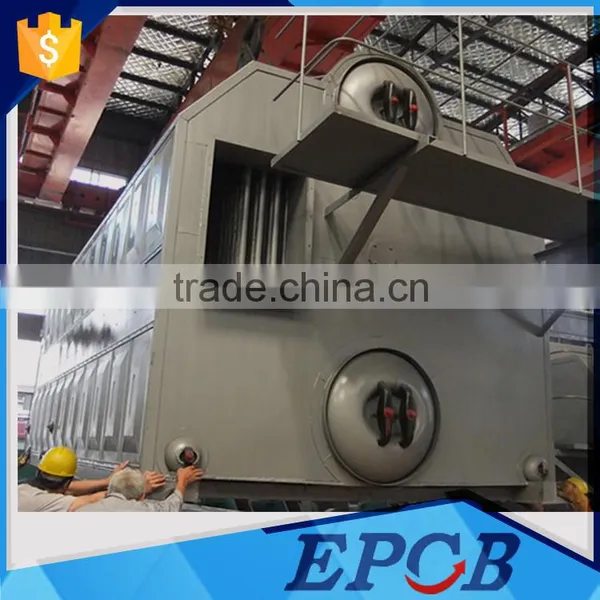

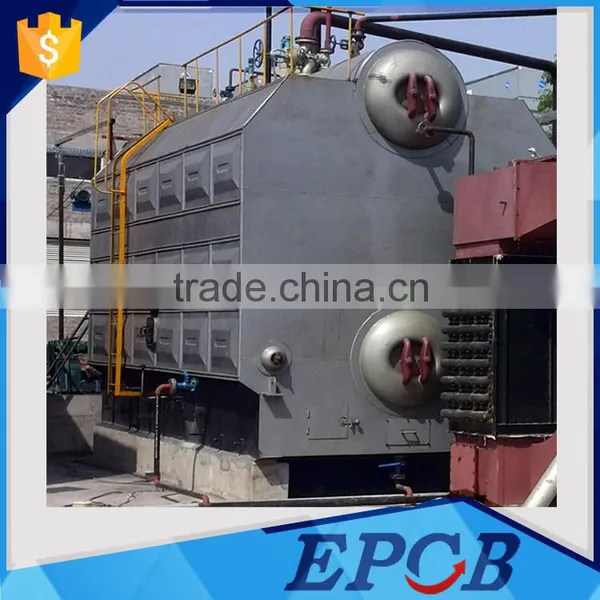

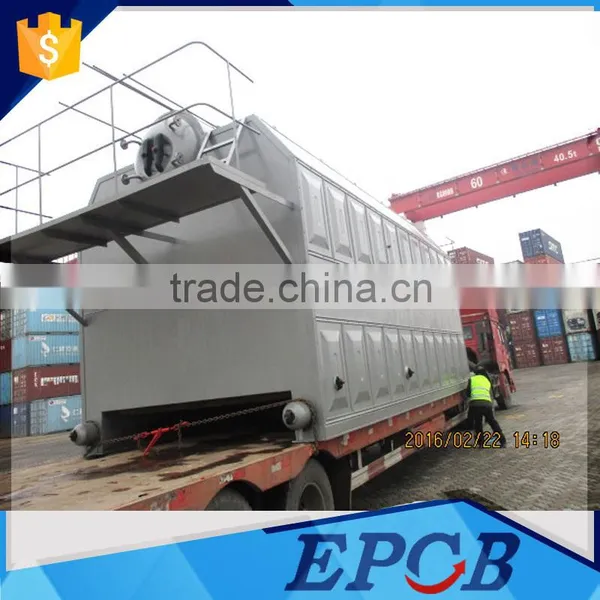

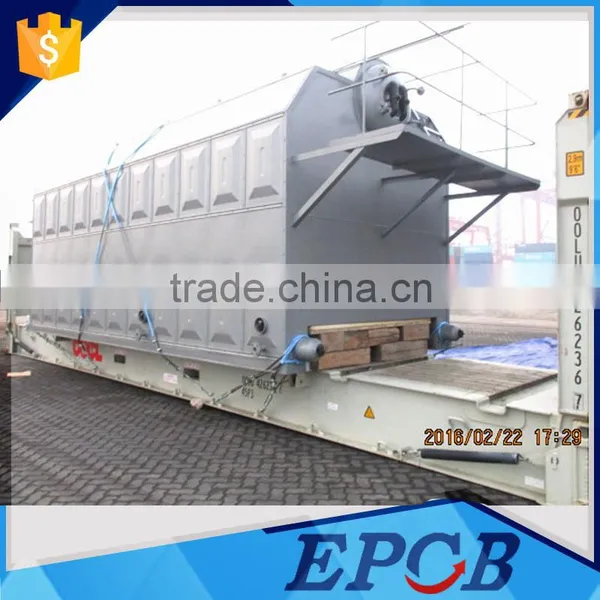

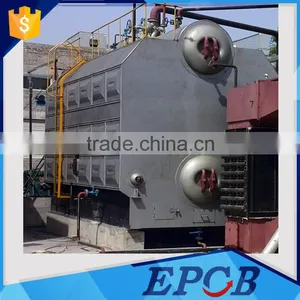

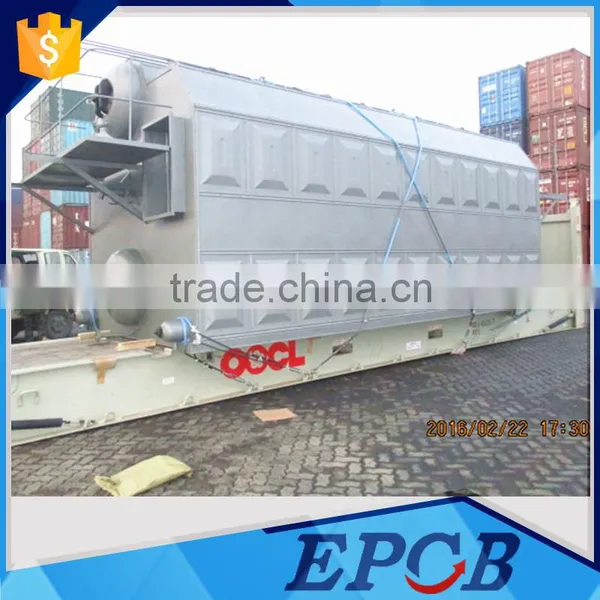

Three Pass Boiler Stove, Coal Fired Steam Boiler SZL10
Three Pass Boiler Stove, Coal Fired Steam Boiler SZL10
1.This series boiler belong to double drums water tube boilers, designed for blowdown on surface and the quality of steam is pretty good.
2.Steam boiler is devided into saturated steam boiler and overheat steam boiler and meet the needs in seperated.
3. Boiler main body and grate adopt large parts for ex-factory, short installation time and low charge for installation.
4. boiler capacity of 4-35T / H (2.8-29MW).Product Data
SZL Series Coal-fired Hot Water Boiler Technique Parameter | |||||||
Item/Type |
SZL2.8-0.7/95/70-AII |
SZL4.2-1.0-115-70-AII |
SZL5.6-1.0-115/70-AII |
SZL7.0-1.0/115/70-AII |
SZL10.5-1.25/115/70-AII |
SZL14-1.25/130/70-AII |
|
Rated capacity MW |
2.8 |
4.2 |
5.6 |
7.0 |
10.5 |
14 |
|
Rated Working pressure Mpa |
0.7 |
1.0 |
1.0 |
1.0 |
1.25 |
1.25 |
|
Supply water Temperature Degree |
95 |
115 |
115 |
115 |
115 |
130 |
|
Return water temperature Degree |
70 |
70 |
70 |
70 |
70 |
70 |
|
Circulation Flow M3/h |
96 |
80 |
106 |
133 |
200 |
200 |
|
Heated area M2 |
Radiation convection |
15.6/112 |
21.6/132 |
25.2/171.5 |
29.5/204.1 |
37.21/284.68 |
58.4/307.4 |
Boiler Thermal efficiency % |
81 |
80.3 |
81.6 |
81 |
81 |
80 |
|
Fuel Consumption kg/h |
658 |
1002 |
1336 |
1688 |
2530 |
3375 |
|
Effictive area of grate M2 |
6.4 |
7.8 |
10.04 |
11.8 |
17.81 |
22.56 |
|
Max. transport size |
L (mm) |
7070 |
7860 |
6900 |
7900 |
9300 |
11500 |
W (mm) |
2750 |
2960 |
3100 |
3100 |
3300 |
3300 |
|
H (mm) |
3524 |
3524 |
3525 |
3525 |
3500 |
3540 |
|
Weight of largest parts of boiler transporting (T) |
31 |
33.5 |
29 |
39 |
43 |
54 |
|
After-sale Service of Us
1), 100%safety, running stably, excellent water level and pressure control, fully automatic operation
2), Boiler running life > 20years.
3), Good after-sale service. It is free for you to get the damaged spares in warranty period(1 year) if there is any questions. Assure that we can supply you spares in boiler’s all life.
4), We can arrange engineer to your company for installation and commissioning and training. If you need us at any time, we can send our technicians and prepare in a short time.
5), Special paint is used after assembly. Paint is particularly used in your climate area, which is anti-corrosion, anti-abrasion and color-fastness.
1. 100%safety, running stably, excellent water level and pressure control, fully automatic oe
High Quality with Mature Design:
1. Quality:
A grade boiler, A1, A2 grade pressure vessel manufacturing company. All products have passed ISO9001:2008 & ASME International Quality Management System Certification, also can provide CE, AS, GOST certification.
2. Management:
In order to ensure the quality, we strictly monitor the comprehensive quality system from raw material procurement & re-testing & process to storage. All the steels and pipes are purchased from developed countries & the well-known large domestic enterprises.
3. Welding:
Welding mainly uses advanced automatic welding, gas protected welding, TIG welding. Drum and other main pressure parts adopt CNC automatic welding, all of the welding 100% passed penetrant inspection.
4. Market:
Asia: Kazakhstan, Uzbekistan, Kyrgyzstan, Tajikistan, Azerbaijan, Singapore, Hongkong, Philippines, Indonesia, Thailand, myanmar, Laos, United Arab Emirates, Saudi Arabia, Palestine, Afghanistan, Bangladesh, Malaysia, Qatar , Lebanon, Armenia, Yemen, Jordan
America: Colombia, Chile, Suriname,Peru, Bolivia, Ecuador
Africa: Sudan, Cameroon, Algeria, Libya, Benin, Nigeria, Egypt, Ghana, Guinea, Mauritius, Kenya, Ethiopia, Cote d'ivoire, Tunisia
Europe: Serbia, Albania
Our customers with us together:
Q: Are you manufacturer?
A: Yes, we are manufactuere. Our factory is in Pingdu Qingdao established in 1993.
Q: Do I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB certificate. If you need CE ASME or AS, we can help you to get it.
Q: How to buy it?
A: Please contact me by email or online, let me know your factory situation, I will give you some advice which model mostly suitable to you.
Q: What about the delivery?
A: We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us
Q: How can I pay you?
A: T/T, LC is very well used.
Q: What about the production?
A: Produce time is 20~25days for <6Ton boiler, 25~40days for >8Ton boiler.
Q: Could you offer some wear parts?
A: Yes, some chain grate bars, electric equipments in control panel box for example.
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
1. DZL new type water fire tube boilers (1-35T/H, 0.7-29MW)
2. SZL series water tube biomass boilers (4-35T/H, 1.4-29MW)
3. WNS series Horizontal oil/gas fired boilers (0.5-30T/H, 0.7-14MW)
4. LHS series Vertical Oil/gas fired boiler (0.1-2 T/H, 0.06-0.7MW )
5. SZS serires Horizontal Oil/gas fired boiler (4- 35T/H )
6. SHX boiler boiler ( 10--35 T/H)
7. CFB Circulating Fluidized Bed boiler ( 35T--130 T )
