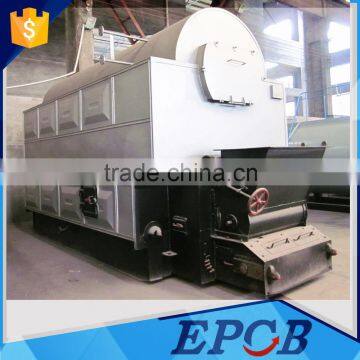

Chinese Best Boiler Wood and Coal Multi Solid Biomass Boiler
Chinese Best Boiler Wood and Coal Multi Solid Biomass Boiler
a. signle durm design
b. boiler capacity of 1-35T/H
c. Higher thermal efficiency
d. Low fuel consumption
1).This thread boiler smoke pipe, arch tube sheet, wing flue structure, is the first victory in national development and National patent in 1991, after nearly two decades of continuous improvement and perfection of its structure is more reasonable, environmentally friendly energy.Effects become more prominent.

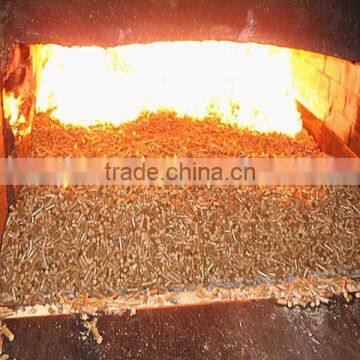

2).For the application of different fuels, chain grate and reciprocating grate is divided into two series. With energy, strong radiation arch, can be applied to all types of bituminous coal combustion.
3). With high standards, high-quality auxiliary equipment, accessories, automated control to ensure the boiler is safe, stable.
4).Compact ,1-10T / H fast assembly ,15-35T / H large assembly, single-layer arrangement, one-time investment province.
5). Boiler capacity of 1-35T / H (0.7-29MW).
Mainly Parameters:
| DZL Series coal-fired steam boiler technique parameter--- Chinese Best Boiler Wood and Coal Multi Solid Biomass Boiler | ||||||||||
| Item/Type | DZL1-0.7-AII DZL1-1.0-AII DZL1-1.25-AII | DZL2-0.7-AII DZL2-1.0-AII DZL2-1.25-AII | DZL3-0.7-AII DZL3-1.25-AII | DZL4-1.25-AII | DZL6-1.25-AII | DZL8-1.25-AII | DZL10-1.25-AII | DZL20--1.25-AII | DZL30-1.25-AII DZL30-1.6-AII | |
| Rated capacity t/h | 1 | 2 | 3 | 4 | 6 | 8 | 10 | 20 | 30 | |
| Rated steam pressure Mpa | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25/1.6 | |
| Rated Steam Temperature degree | 170/184/194 | 170/184/194 | 170/194 | 194 | 194 | 194 | 194 | 194 | 194/204 | |
| Feed water temperature degree | 20 | 20 | 20 | 20 | 20 | 60 | 105 | 105 | 105 | |
| Boiler Thermal efficiency % | 79 | 79.07 | 82 | 80 | 81 | 80.5 | 80.6 | 81 | 81.76 | |
| Fuel Consumption kg/h | 167 | 330 | 49.8 | 662 | 998 | 1325 | 1655 | 3290 | 4230 | |
| Effictive area of grate degree | 1.8 | 3.04 | 3.34 | 5.14 | 9.36 | 10.9 | 12 | 22.56 | 26.88 | |
| Max. transport size | L (mm) | 4876 | 5290 | 5360 | 6237 | 6300 | 7486 | 7600 | 7810 | 9000 |
| W (mm) | 1800 | 2240 | 2240 | 2660 | 3150 | 3200 | 3200 | 3370 | 2600 | |
| H (mm) | 2820 | 3208 | 3208 | 3520 | 3938 | 3350 | 3660 | 3500 | 2850 | |
| Weight of largest parts of boiler transporting (T) | 13.3/13.5/13.7 | 18.5/18.8/18.8 | 20.8/21 | 27 | 35 | 31 | 44 | 25 | 30 | |
| Note: This is simple parameters for reference,for more informations please add me on skype: epcbsale26 . | ||||||||||
After-sale Service of Us
1), 100%safety, running stably, excellent water level and pressure control, fully automatic operation
2), Boiler running life > 20years.
3), Good after-sale service. It is free for you to get the damaged spares in warranty period(1 year) if there is any questions. Assure that we can supply you spares in boiler’s all life.
4), We can arrange engineer to your company for installation and commissioning and training. If you need us at any time, we can send our technicians and prepare in a short time.
5), Special paint is used after assembly. Paint is particularly used in your climate area, which is anti-corrosion, anti-abrasion and color-fastness.
1. 100%safety, running stably, excellent water level and pressure control, fully automatic oe
High Quality with Mature Design:
1. Quality:
A grade boiler, A1, A2 grade pressure vessel manufacturing company. All products have passed ISO9001:2008 & ASME International Quality Management System Certification, also can provide CE, AS, GOST certification.
2. Management:
In order to ensure the quality, we strictly monitor the comprehensive quality system from raw material procurement & re-testing & process to storage. All the steels and pipes are purchased from developed countries & the well-known large domestic enterprises.
3. Welding:
Welding mainly uses advanced automatic welding, gas protected welding, TIG welding. Drum and other main pressure parts adopt CNC automatic welding, all of the welding 100% passed penetrant inspection.
4. Market:
Asia: Kazakhstan, Uzbekistan, Kyrgyzstan, Tajikistan, Azerbaijan, Singapore, Hongkong, Philippines, Indonesia, Thailand, myanmar, Laos, United Arab Emirates, Saudi Arabia, Palestine, Afghanistan, Bangladesh, Malaysia, Qatar , Lebanon, Armenia, Yemen, Jordan
America: Colombia, Chile, Suriname,Peru, Bolivia, Ecuador
Africa: Sudan, Cameroon, Algeria, Libya, Benin, Nigeria, Egypt, Ghana, Guinea, Mauritius, Kenya, Ethiopia, Cote d'ivoire, Tunisia
Europe: Serbia, Albania
Our customers with us together:
Q: Are you manufacturer?
A: Yes, we are manufactuere. Our factory is in Pingdu Qingdao established in 1993.
Q: Do I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB certificate. If you need CE ASME or AS, we can help you to get it.
Q: How to buy it?
A: Please contact me by email or online, let me know your factory situation, I will give you some advice which model mostly suitable to you.
Q: What about the delivery?
A: We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us
Q: How can I pay you?
A: T/T, LC is very well used.
Q: What about the production?
A: Produce time is 20~25days for <6Ton boiler, 25~40days for >8Ton boiler.
Q: Could you offer some wear parts?
A: Yes, some chain grate bars, electric equipments in control panel box for example.
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
1. DZL new type water fire tube boilers (1-35T/H, 0.7-29MW)
2. SZL series water tube biomass boilers (4-35T/H, 1.4-29MW)
3. WNS series Horizontal oil/gas fired boilers (0.5-30T/H, 0.7-14MW)
4. LHS series Vertical Oil/gas fired boiler (0.1-2 T/H, 0.06-0.7MW )
5. SZS serires Horizontal Oil/gas fired boiler (4- 35T/H )
6. SHX boiler boiler ( 10--35 T/H)
7. CFB Circulating Fluidized Bed boiler ( 35T--130 T )
