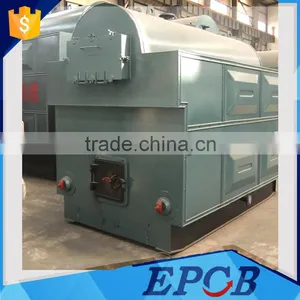

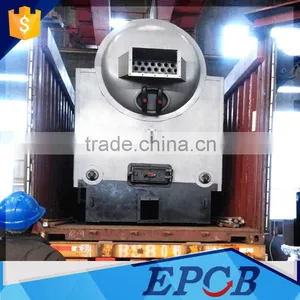

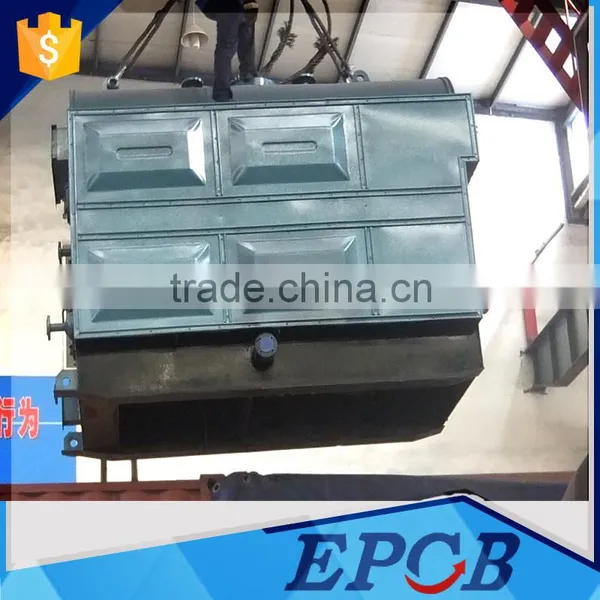

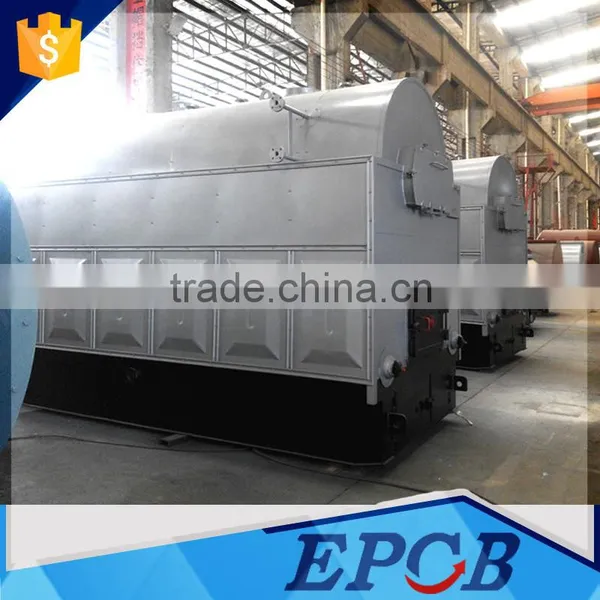

Horizontal Drum Steam Big Size Wood Boiler Manufacturer
Horizontal Drum Steam Big Size Wood Boiler Manufacturer
1. signle durm design
2. boiler capacity of 1-35T/H
3. Higher thermal efficiency
4. Low fuel consumption
Features of Coal Fired Steam Boilers:
DZG Series Fixed Grate Coke Environmental Boiler
Features
1.Coke is a kind of clean solid fuel, with low Sulfer Emission after combustion which comply to China Government Environmental requirement.
2. Use mechanical ventilation, complete combustion, Full steam capacity, High thermal efficiency.
3. Fuel feeding internal time is long, Labor intensity low, operation is simply, reliable and safely.
4. Low produce and operation cost, it is a very economical, practical and environmental boiler.
5. Suitable fuel: Coke, anthracite coal block, wood and biomass. It is also suitable for bulk coal with de-sulfer device.
6. Boiler capacity: 1-4T(0.7-2.8MW)
Mainly Parameters:
| DZG Series Fixed Grate Boiler Parameter---- Horizontal Drum Steam Big Size Wood Boiler Manufacturer | |||||||
| Item/Type | DZG0.5-0.7/1.0-J | DZG1-0.7/1.0/1.25-J | DZG2-0.7/1.0/1.25-J | DZG0.35-0.7/95/70-J | DZG0.7-0.7/95/70-J | DZG1.4-0.7/95/70-J | |
| Rated capacity t/h | 0.5 | 1 | 2 | 0.35 | 0.7 | 1.4 | |
| Rated steam pressure Mpa | 0.7/1.0 | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7 | 0.7 | 0.7 | |
| Rated Steam Temperature C | 170/184 | 170/184/194 | 170/184/194 | 95 | 95 | 95 | |
| Feed water temperature C | 20 | 20 | 20 | 70 | 70 | 70 | |
| Boiler Thermal efficiency % | 75 | 78 | 78 | 75 | 78 | 78 | |
| Heating Are M2 | Radiation/Convection | 2.3/16.2 | 4.68/16.1 | 5.8/30.7 | 2.3/16.2 | 4.55/20.12 | 6.17/39.5 |
| Suitable Fuel | Cock, III Coal | ||||||
| Fuel Combustion KG/HR | 76 | 146 | 290 | 76 | 146 | 290 | |
| Grate Efficiency Area | 0.98 | 1.5 | 2.4 | 0.98 | 1.5 | 2.4 | |
| Max. transport size | L (mm) | 2970 | 3782 | 4307 | 2970 | 3782 | 4900 |
| W (mm) | 1950 | 1920 | 2130 | 1950 | 1800 | 2130 | |
| H (mm) | 2660 | 2820 | 3222 | 2660 | 2870 | 3222 | |
| Weight of largest parts of boiler transporting (T) | 8.3/8.4 | 11/11/11.6 | 15.7/15.8/16 | 8.3 | 11 | 15.5 | |
| Note: This is simple parameters for reference,for more informations please add me on skype: epcbsale26 . | |||||||
After-sale Service of Us
1), 100%safety, running stably, excellent water level and pressure control, fully automatic operation
2), Boiler running life > 20years.
3), Good after-sale service. It is free for you to get the damaged spares in warranty period(1 year) if there is any questions. Assure that we can supply you spares in boiler’s all life.
4), We can arrange engineer to your company for installation and commissioning and training. If you need us at any time, we can send our technicians and prepare in a short time.
5), Special paint is used after assembly. Paint is particularly used in your climate area, which is anti-corrosion, anti-abrasion and color-fastness.
1. 100%safety, running stably, excellent water level and pressure control, fully automatic oe
Q: Are you manufacturer?
A: Yes, we are manufactuere. Our factory is in Pingdu Qingdao established in 1993.
Q: Do I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB certificate. If you need CE ASME or AS, we can help you to get it.
Q: How to buy it?
A: Please contact me by email or online, let me know your factory situation, I will give you some advice which model mostly suitable to you.
Q: What about the delivery?
A: We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us
Q: How can I pay you?
A: T/T, LC is very well used.
Q: What about the production?
A: Produce time is 20~25days for <6Ton boiler, 25~40days for >8Ton boiler.
Q: Could you offer some wear parts?
A: Yes, some chain grate bars, electric equipments in control panel box for example.
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
1. DZL new type water fire tube boilers (1-35T/H, 0.7-29MW)
2. SZL series water tube biomass boilers (4-35T/H, 1.4-29MW)
3. WNS series Horizontal oil/gas fired boilers (0.5-30T/H, 0.7-14MW)
4. LHS series Vertical Oil/gas fired boiler (0.1-2 T/H, 0.06-0.7MW )
5. SZS serires Horizontal Oil/gas fired boiler (4- 35T/H )
6. SHX boiler boiler ( 10--35 T/H)
7. CFB Circulating Fluidized Bed boiler ( 35T--130 T )
