JY-E50 Large Flow Light Diesel Oil Water Separation Equipment for Oil Drums With Selectivity Characteristics in Iraq

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port DALIAN PORT
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China		Brand Name	Jingyuan
Model Number	JY-E50		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Excellent performance:

•New polymer membrane filtration technology

•Selectivity characteristics of polymer membrane is core technology.

•Oil-water separating is easy.

•High precision and deep filtration

•Guarantee the cleanness index of diesel oil

•Improve the efficiency of the engine

•Prolong engine service life

•The cost of filtration is low

Technical Parameters	1	Model Number	JY-E50
	2	Working Pressure	0.2~0.35Mpa
	3	Flow Rate	32~40L/min
	4	Filtration Precision	2,5,10,15,20,30μm
	5	Filtration Material	HDPE,PA
	6	Applicative Oil	Light Diesel Oil
	7	Chemical Resistance	Widely Chemical Compatibility
	8	Type of Filter element	J22-330S
	9	Power	220/380V Electrical Engine
	10	Dimension	950×720×900mm
	11	Weight	80/110KG
	12	Service Life of Filter Element	2~3 Year
	13	Warranty for Main Engine	1 Year
Functional Characteristics	1	Large flow diesel purification filter
	2	Polymer 3D mesh structure membrane filter element
	3	High precision two-level filtration
	4	High interception rate
	5	Oil-water separation
	6	Potable trolley structure
	7	Providing rapid fuel filtration service on site
	8	Circulating filtration for oil storage tank
	9	Made of high quality thick steel plate, anti-corrosion treatment
	10	Minimum mechanical flow resistance
	11	Low pressure difference
	12	Low power consumption
	13	Flow optional
	14	Low operating cost
	15	Design life is more than 20 years (except for filter element)
Principle	Selectivity characteristic is to say, the oil molecules will pass and water molecules or impurities will be intercepted, so that the oil and water can be separated.
Application	Oil storage tank, oil drums, oil pool, generator set, engineering machinery, marine applications and other industries in Asia, South America, Africa and Middle East.
Why do we filter diesel?	90% of the failure problem of diesel engine is due to dirt and moisture in the diesel. After multiple storage and transportation, the purity of the product will decline. So filtering out the pollutants and water is necessary to restore the purity of the product. Clean diesel makes fuel consumption reduces 5-10%, oil-saving effect is obvious, the service life of diesel engines extend 2 ~3 times.

2014 bauma China

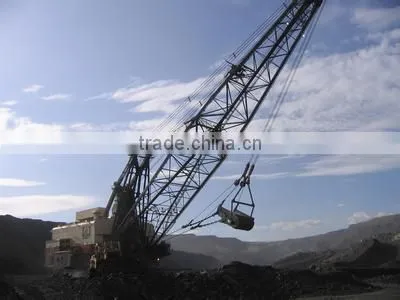

Application in engineering machinery and oil depot
