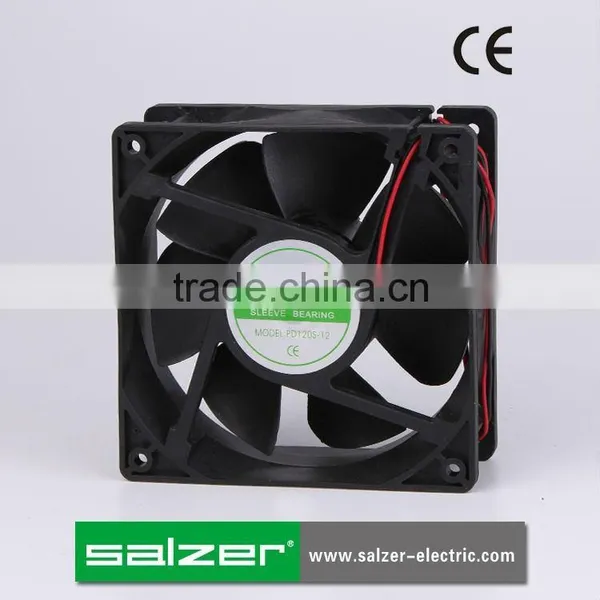

Salzer PD120S-12 120mm axial fan
- 20000 Piece / Pieces per Month
- NINGBO SHANGHAI
Product Details
| Electric Current Type: | DC | Mounting: | Duct Fan | Blade Material: | Plastic |
| Place of Origin: | Zhejiang, China | Brand Name: | SALZER | Model Number: | PD120 |
| Voltage: | 5VDC, 12VDC, 24VDC, 48VDC | Power: | 3.6W~6W | Air Volume: | 95CFM~120CFM |
| Speed: | 2100RPM~2700RPM | Certification: | CE |
Product Description
Specifications
120mm axial fan1) Rated voltage:5VDC, 12VDC, 24VDC, 48VDC
2) Ball bearing or Sleeve bearing
Salzer PD120S-12 120mm axial fan
General data of brushless DC axial fan
Insulation resistance: more than 10mΩ between housing and plus end of lead wire red color at
500V DC.
Material
- Frame: UL94V-0 70% P.B.T.+30% F.R.P
- Impeller: UL94V-0 70% P.B.T.+30% F.R.P
- Operating temperature: -10 to+70°C.
- Storage temperature: -40 to+70°C.
- Opreating voltage: rated voltage±15%.
- Rated voltage: 5VDC, 12VDC, 24VDC, 48VDC
- Bearing: Ball bearing or Sleeve bearing
120x120x38mm DC Axial Fan
Technical Parameters of the DC Axial Fan
| Dimension (mm) | Model | Voltage (VAC) | Current (AMP) | Power (Watts) | Speed (RPM) | Air Flow (CFM) | Pressure (Inch/H2O) | Noise (dBA) | Weight (Gram) |
| 120x120x38 | PD120S-12L | 12 | 0.25 | 3.00 | 2000 | 85.58 | 4.83 | 37.0 | 138 |
| PD120S-12M | 12 | 0.35 | 4.20 | 2500 | 120.14 | 5.95 | 42.0 | 138 | |
| PD120S-12H | 12 | 0.55 | 6.60 | 3000 | 125.06 | 7.15 | 47.0 | 138 | |
| PD120S-24L | 24 | 0.20 | 4.80 | 2000 | 85.58 | 4.83 | 37.0 | 138 | |
| PD120S-24M | 24 | 0.30 | 7.20 | 2500 | 102.14 | 5.95 | 42.0 | 138 | |
| PD120S-24H | 24 | 0.40 | 9.60 | 3000 | 125.06 | 7.15 | 47.0 | 138 |
Ordering Information
PD 40 S - 12 L
Fan size: 40: 40x40x10mm, 40x40x15mm or 40x40x20mm
45: 45x45x10mm
50: 50x50x10mm or 50x50x15mm
60: 60x60x10mm, 60x60x15mm, 60x60x20mm or 60x60x25mm
70: 70x70x15mm
80: 80x80x25mm
90: 92x92x25mm
120: 120x120x25mm or 120x120x38mm
150: 150x150x51mm, 150x172x51mm or Φ172x51mm
Bearing Type: S: Sleeve bearing B: ball bearing
Rated Voltage and frequency: 5VDC, 12VDC, 24VDC, 48VDC
Speed: L: low, M: middle, H: high
About us
Aug., 2002 YUEQING LEYI ELECTRIC CO., LTD. WAS FOUNDED.
Dec., 2002 Singed agent with our Thailand customer.
Jul., 2003 Got the UL certificate for our cam switch SA16.
Nov., 2003 Our expertise in the field has earned us membership in the China Chamber of.
Commerce for Import and Export of Machinery and Electronic Products (CCCME).
May, 2004 Cooperated with ALIBABA, becoming one of the first Chinese gold suppliers.
Oct., 2005 Singed agent with our Mexico customer.
Jan., 2006 Singed agent with our Indonesia customer.
Apr., 2006 Successfully registered our SALZER brand in China.
Jan., 2007 Got the UL certificate for our wire THHN/THWN.
Dec., 2007 Singed agent with our Turkey customer.
Sep., 2008 Got the UL certificate for our axial fan PD120B/S.
Jun., 2010 Singed agent with our Russia customer.
Aug., 2010 Singed agent with our Poland customer.
Oct., 2013 Got TUV, CE and CB certificates for our cam switch SA16, SA25 and SA32.
Jan., 2014 Singed agent with our Philippines customer.
Mar. 2014 Got TUV, CE and CB certificates for our cam switch SA40, SA63 and SA80.
May, 2014 Got TUV, CE and CB certificates for our pushbutton SA22 series and LED lamp PL16-22.
May, 2014 Got TUV, CE certificates for our axial fan PD Series.
More detail informations, please feel free to contact us!
