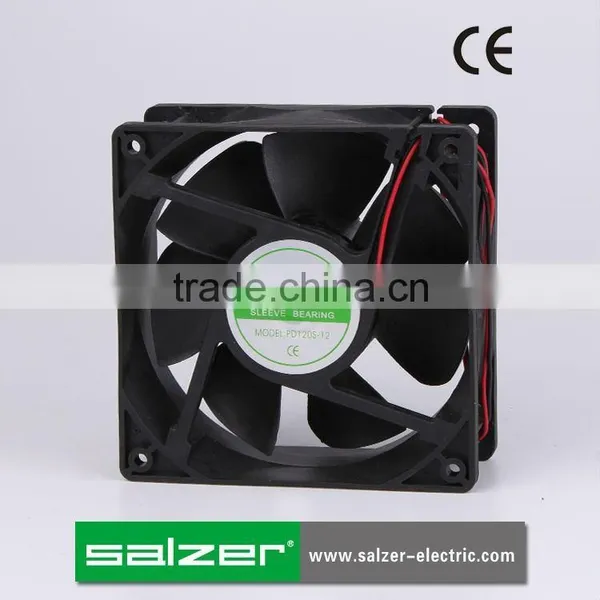

Salzer PD120S-12 axial 12 volt fan
- 20000 Piece / Pieces per Month
- NINGBO SHANGHAI
Product Details
| Electric Current Type: | DC | Mounting: | Duct Fan | Blade Material: | Plastic |
| Place of Origin: | Zhejiang, China | Brand Name: | SALZER | Model Number: | PD120 |
| Voltage: | 5VDC, 12VDC, 24VDC, 48VDC | Power: | 3.6W~6W | Air Volume: | 95CFM~120CFM |
| Speed: | 2100RPM~2700RPM | Certification: | CE |
Product Description
Specifications
axial 12 volt fan1) Rated voltage:5VDC, 12VDC, 24VDC, 48VDC
2) Ball bearing or Sleeve bearing
Salzer PD120S-12 axial 12 volt fan
General data of brushless DC axial fan
Insulation resistance: more than 10mΩ between housing and plus end of lead wire red color at
500V DC.
Material
- Frame: UL94V-0 70% P.B.T.+30% F.R.P
- Impeller: UL94V-0 70% P.B.T.+30% F.R.P
- Operating temperature: -10 to+70°C.
- Storage temperature: -40 to+70°C.
- Opreating voltage: rated voltage±15%.
- Rated voltage: 5VDC, 12VDC, 24VDC, 48VDC
- Bearing: Ball bearing or Sleeve bearing
120x120x38mm DC Axial Fan
Technical Parameters of the DC Axial Fan
| Dimension (mm) | Model | Voltage (VAC) | Current (AMP) | Power (Watts) | Speed (RPM) | Air Flow (CFM) | Pressure (Inch/H2O) | Noise (dBA) | Weight (Gram) |
| 120x120x38 | PD120S-12L | 12 | 0.25 | 3.00 | 2000 | 85.58 | 4.83 | 37.0 | 138 |
| PD120S-12M | 12 | 0.35 | 4.20 | 2500 | 120.14 | 5.95 | 42.0 | 138 | |
| PD120S-12H | 12 | 0.55 | 6.60 | 3000 | 125.06 | 7.15 | 47.0 | 138 | |
| PD120S-24L | 24 | 0.20 | 4.80 | 2000 | 85.58 | 4.83 | 37.0 | 138 | |
| PD120S-24M | 24 | 0.30 | 7.20 | 2500 | 102.14 | 5.95 | 42.0 | 138 | |
| PD120S-24H | 24 | 0.40 | 9.60 | 3000 | 125.06 | 7.15 | 47.0 | 138 |
Ordering Information
PD 40 S - 12 L
Fan size: 40: 40x40x10mm, 40x40x15mm or 40x40x20mm
45: 45x45x10mm
50: 50x50x10mm or 50x50x15mm
60: 60x60x10mm, 60x60x15mm, 60x60x20mm or 60x60x25mm
70: 70x70x15mm
80: 80x80x25mm
90: 92x92x25mm
120: 120x120x25mm or 120x120x38mm
150: 150x150x51mm, 150x172x51mm or Φ172x51mm
Bearing Type: S: Sleeve bearing B: ball bearing
Rated Voltage and frequency: 5VDC, 12VDC, 24VDC, 48VDC
Speed: L: low, M: middle, H: high
