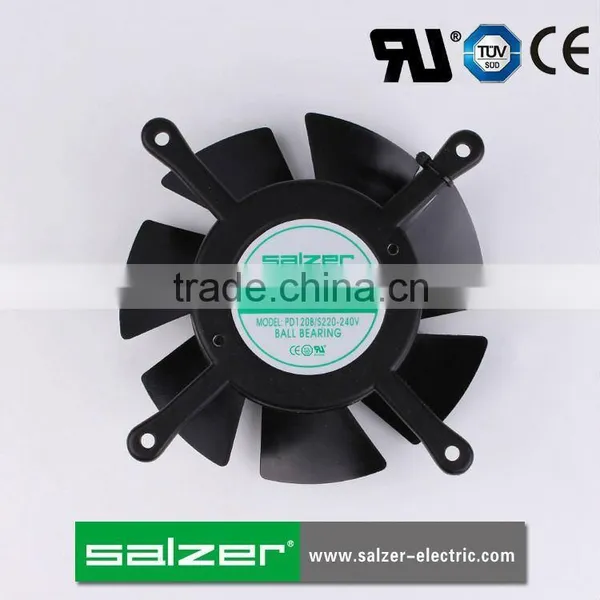

SALZER PD120B /S 220-240V sleeve bearing axial fan
- 50000 Pint / Pints per Month
- Ningbo Shanghai Port
Product Details
| Electric Current Type: | AC | Mounting: | Other, Plate installation | Blade Material: | Other, Plastic(UL94V-0 70%PBT+30%FRP) |
| Place of Origin: | Zhejiang, China | Brand Name: | SALZER | Model Number: | PD120S-110, PD120S-220, PD120S-380, PD120B-110, PD120B-220, PD120B-380 |
| Voltage: | 110VAC, 220VAC, 380VAC | Power: | 20W, 25W | Air Volume: | 87CFM, 108CFM |
| Speed: | 2500RPM, 2900RPM | Certification: | CE, CCC, UL |
Product Description
Specifications
sleeve bearing axial fanVoltage: 110VAC or 220VAC or 380VAC
Material: Metal frame and Plastic blade
SALZER PD120B /S 220-240V sleeve bearing axial fan
General Information
Electric motor: Shaded pole AC motor design
Frame: The outside frame of the AC axial fan is made of high quality aluminum alloy
Anticorrosive and moisture-proof impeller: UL94V-0, 70% PBT, +30% FRP
Bearing: Sleeve bearing and ball bearing
Insulation: Class B
Insulation impedance: The case adds 500V DC to the coils, insulation impedance is more than 100MΩ
Dielectric strength: 0.5mA 1500V/AC min
Safety protection: Impedance protection
Operating temperature: -10 ~ +70°C
Storage temperature: -40 ~ +70°C
Ordering Information
120X120X38mm AC Axial Fan
This type of axial fan has got UL Certificate (No. E312553).
Technical Parameters of AC Axial Fan
| Dimension (mm) | Model | Vol- tage (AC) | Freq- uency (Hz) | Current (AMP) | Power (Watts) | Speed (PRM) | Air Flow (CFM)/ M3/min | Pres- sure (Inch/ H2O) | Noise (dBA) | Weight (Gram) |
| 120X120X38 | PD120S-110-0 PD120B-110-0 | 115 | 50 | 0.25 | 25 | 2500 | 87/2.46 | 0.23 | 46.5 | 515 |
PD120S-110-0 PD120B-110-0 | 115 | 60 | 0.23 | 20 | 2900 | 108/3.05 | 0.28 | 52.6 | 515 | |
PD120S-220-0 PD120B-220-0 | 230 | 50 | 0.14 | 25 | 2500 | 87/2.46 | 0.23 | 46.5 | 515 | |
PD120S-220-0 PD120B-220-0 | 230 | 60 | 0.12 | 20 | 2900 | 108/3.05 | 0.28 | 52.6 | 515 | |
PD120S-380-0 PD120B-380-0 | 380 | 50 | 0.14 | 25 | 2500 | 87/2.46 | 0.23 | 46.5 | 515 | |
PD120S-380-0 PD120B-380-0 | 380 | 60 | 0.12 | 20 | 2900 | 108/3.05 | 0.28 | 52.6 | 515 |
Outline drawing
We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.
Mini order amount USD5,000
About us
Aug., 2002 YUEQING LEYI ELECTRIC CO., LTD. WAS FOUNDED.
Dec., 2002 Singed agent with our Thailand customer.
Jul., 2003 Got the UL certificate for our cam switch SA16.
Nov., 2003 Our expertise in the field has earned us membership in the China Chamber of.
Commerce for Import and Export of Machinery and Electronic Products (CCCME).
May, 2004 Cooperated with ALIBABA, becoming one of the first Chinese gold suppliers.
Oct., 2005 Singed agent with our Mexico customer.
Jan., 2006 Singed agent with our Indonesia customer.
Apr., 2006 Successfully registered our SALZER brand in China.
Jan., 2007 Got the UL certificate for our wire THHN/THWN.
Dec., 2007 Singed agent with our Turkey customer.
Sep., 2008 Got the UL certificate for our axial fan PD120B/S.
Jun., 2010 Singed agent with our Russia customer.
Aug., 2010 Singed agent with our Poland customer.
Oct., 2013 Got TUV, CE and CB certificates for our cam switch SA16, SA25 and SA32.
Jan., 2014 Singed agent with our Philippines customer.
Mar. 2014 Got TUV, CE and CB certificates for our cam switch SA40, SA63 and SA80.
May, 2014 Got TUV, CE and CB certificates for our pushbutton SA22 series and LED lamp PL16-22.
May, 2014 Got TUV, CE certificates for our axial fan PD Series.
More detail informations, please feel free to contact us!
